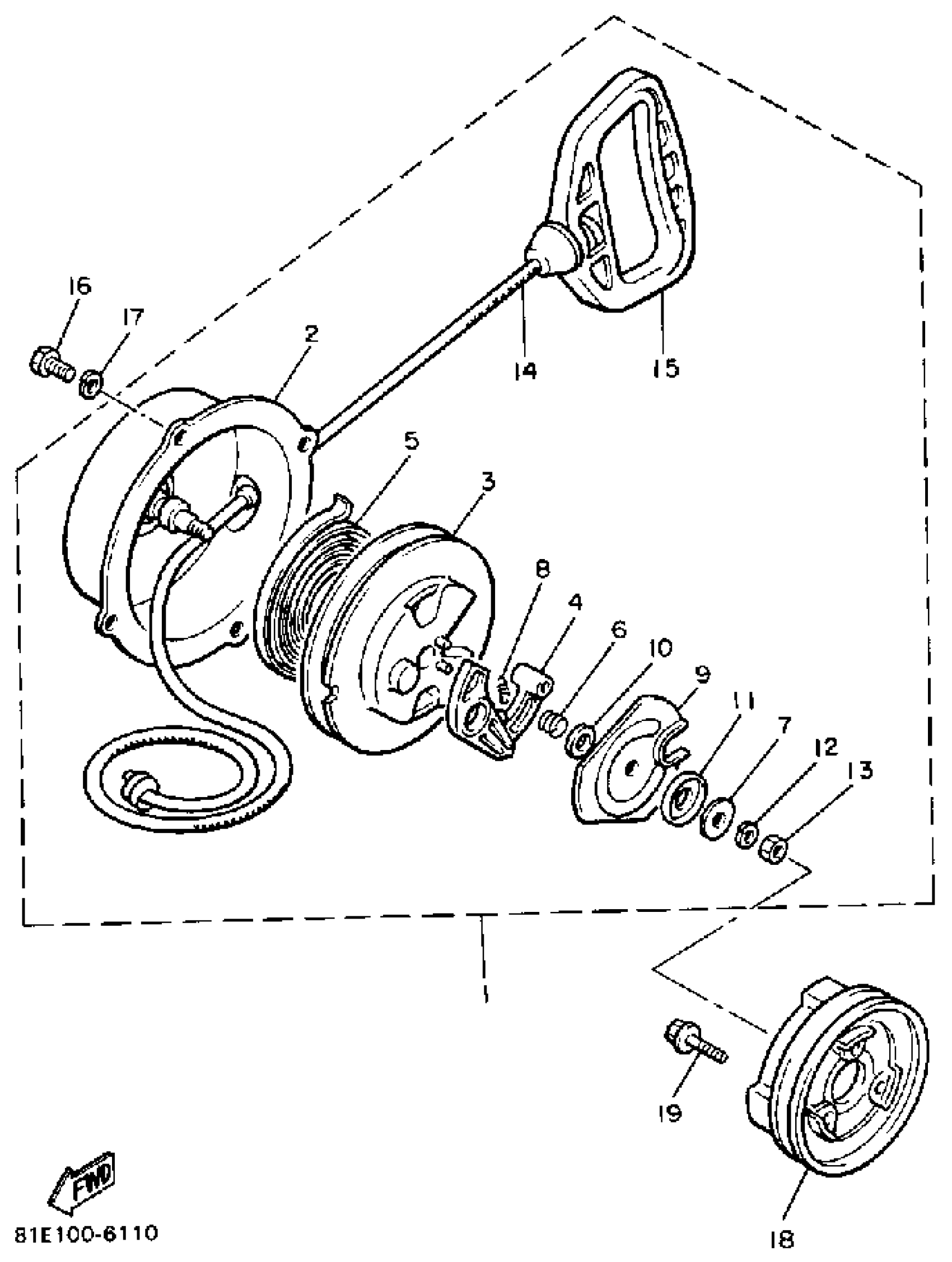

Yamaha CF300P (INVITER) 1990 STARTER Diagram

STARTER ASSY

8V0-15710-00-00

Unavailable

. CASE, STARTER

8V0-15711-00-00

Unavailable

DRUM, SEAVE

8F3-15714-01-00

$48.99

PAWL, DRIVE

8F3-15741-01-00

$28.99

SPRING, STARTER

8F3-15713-01-00

$48.99

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.99

WASHER, THRUST

8F3-15739-01-00

$11.99

SPRING, RETURN

8F3-15734-00-00

$5.49

WASHER, THRUST

8G5-15739-00-00

$9.49

COLLOR

82M-15779-00-00

$8.99

PLATE, DRIVE

8F3-15716-03-00

$29.99

WASHER, SPRING

92995-06100-00

Unavailable

NUT(650)

95380-06700-00

$8.49

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

HANDLE, STARTER

8F3-15755-00-00

$29.99

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

PULLEY, STARTER

8V0-15723-00-00

Unavailable

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable
