- CF300P (INVITER) 1990
SHROUD-WINDSHIELD

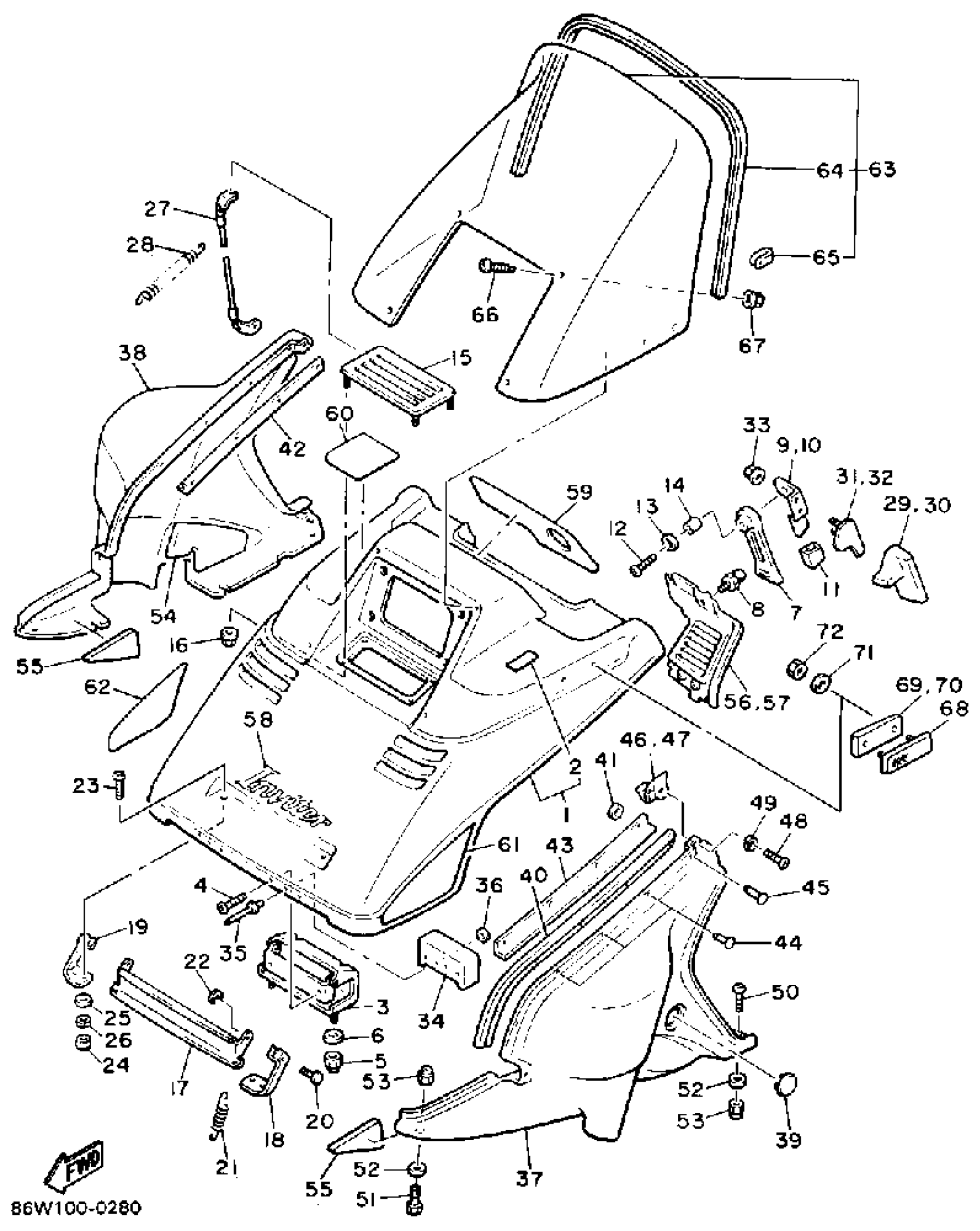

Yamaha CF300P (INVITER) 1990 SHROUD-WINDSHIELD Diagram
#
1
SHROUD ASSEMBLY
86W-W7711-00-00
Unavailable
2
. EMBLEM 1
83U-77141-00-00
Unavailable
3
HINGE ASSEMBLY
81E-77140-00-00
Unavailable
4
SCREW, BINDING
98907-06016-00
$9.49
5
NUT, NYLON
95707-06300-00
$3.50
6
WASHER, PLATE 8221447500
90201-06057-00
$5.60
7
BODY, LATCH 1
8V0-77171-00-00
$21.99
8
HOLDER, LATCH
8V0-77175-00-00
$17.99
9
CLAMP 1
81E-77135-00-00
Unavailable
10
CLAMP 2
81E-77136-00-00
Unavailable
11
STOPPER
81E-77188-00-00
Unavailable
12
SCREW(3JM)
90149-06306-00
$8.49
13
WASHER, PLATE
90201-06020-00
$9.49
14
COLLAR (420)
90387-06241-00
$8.49
15
LOUVER 5
86W-77109-00-00
Unavailable
16
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
17
LOUVER 6
81E-77108-00-00
Unavailable
18
STAY 1
81E-77125-00-00
Unavailable
19
STAY 2
81E-77126-00-00
Unavailable
20
PIN
90249-05187-00
Unavailable
21
SPRING, TENSION
90506-12371-00
Unavailable
22
CIRCLIP (EU0)
99080-04600-00
Unavailable
23
SCREW, TAPPING (8R4)
90164-05007-00
Unavailable
24
NUT, HEXAGON (663)
95380-05600-00
Unavailable
25
. WASHER, PLAIN
92990-05200-00
Unavailable
26
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
27
STOPPER, SHROUD
81E-77118-01-00
Unavailable
28
CLAMP,ROD
838-77159-00-00
Unavailable
29
TRIM 3
81E-77215-00-00
Unavailable
30
TRIM 4
81E-77216-00-00
Unavailable
31
PLATE 1
81E-77185-00-00
Unavailable
32
PLATE 2
81E-77186-00-00
Unavailable
33
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
34
SHIELD, NOISE
81E-2199F-00-00
Unavailable
35
RIVET, BLIND (8M6)
90267-48051-00
Unavailable
36
WASHER PLATE 803835240000
90201-05032-00
Unavailable
37
HOOD 1
86W-21982-00-00
Unavailable
38
HOOD 2
86W-21983-00-00
Unavailable
39
GROMMET
90480-40382-00
Unavailable
40
BUSH, RUBBER 1
81E-77515-01-00
Unavailable
41
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
42
PLATE, BACK UP 1
81E-77153-01-00
Unavailable
43
PLATE, BACK UP 2
81E-77154-01-00
Unavailable
44
RIVET(81E)
90269-05055-00
Unavailable
45
RIVET(81E)
90269-05055-00
Unavailable
46
GUIDE 1
81E-77123-00-00
Unavailable
47
GUIDE 2
81E-77124-00-00
Unavailable
48
SCREW, PAN
98517-05012-00
Unavailable
49
WASHER(3SX)
92907-05100-00
Unavailable
50
SCREW, BINDING
98907-06020-00
Unavailable
51
BOLT, HEXAGON
97017-06016-00
Unavailable
52
WASHER, PLATE 8221447500
90201-06057-00
$5.60
53
NUT, NYLON
95707-06300-00
$3.50
54
LINING, SHROUD 5
81E-77265-00-00
Unavailable
55
SHIELD, HEAT
86E-2199H-00-00
Unavailable
56
LOUVER 1
83U-77131-00-00
Unavailable
57
LOUVER 2
83U-77132-00-00
Unavailable
58
EMBLEM 1
86W-77351-00-00
Unavailable
59
EMBLEM 2
86W-77352-00-00
Unavailable
60
LABEL, WARNING 1
86W-77761-00-00
Unavailable
61
ORNAMENT 1
86W-77163-00-00
Unavailable
62
ORNAMENT 2
86W-77164-00-00
Unavailable
63
WINDSHIELD
81E-77210-01-00
Unavailable
64
TRIM,UPPER
87K-77213-00-00
Unavailable
65
. FASTENER
80V-77223-00-00
Unavailable
66
SCREW, TAPPING (8R4)
90164-05007-00
Unavailable
67
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
68
REFLECTOR ASSEMBLY
81E-85110-00-00
Unavailable
69
BASE, REFLECTOR
81E-85115-00-00
Unavailable
70
BASE, REFLECTOR
81E-85115-50-00
Unavailable
71
WASHER, PLAIN (646)
92990-05600-00
Unavailable
72
NUT, NYLON
95707-05300-00
Unavailable
