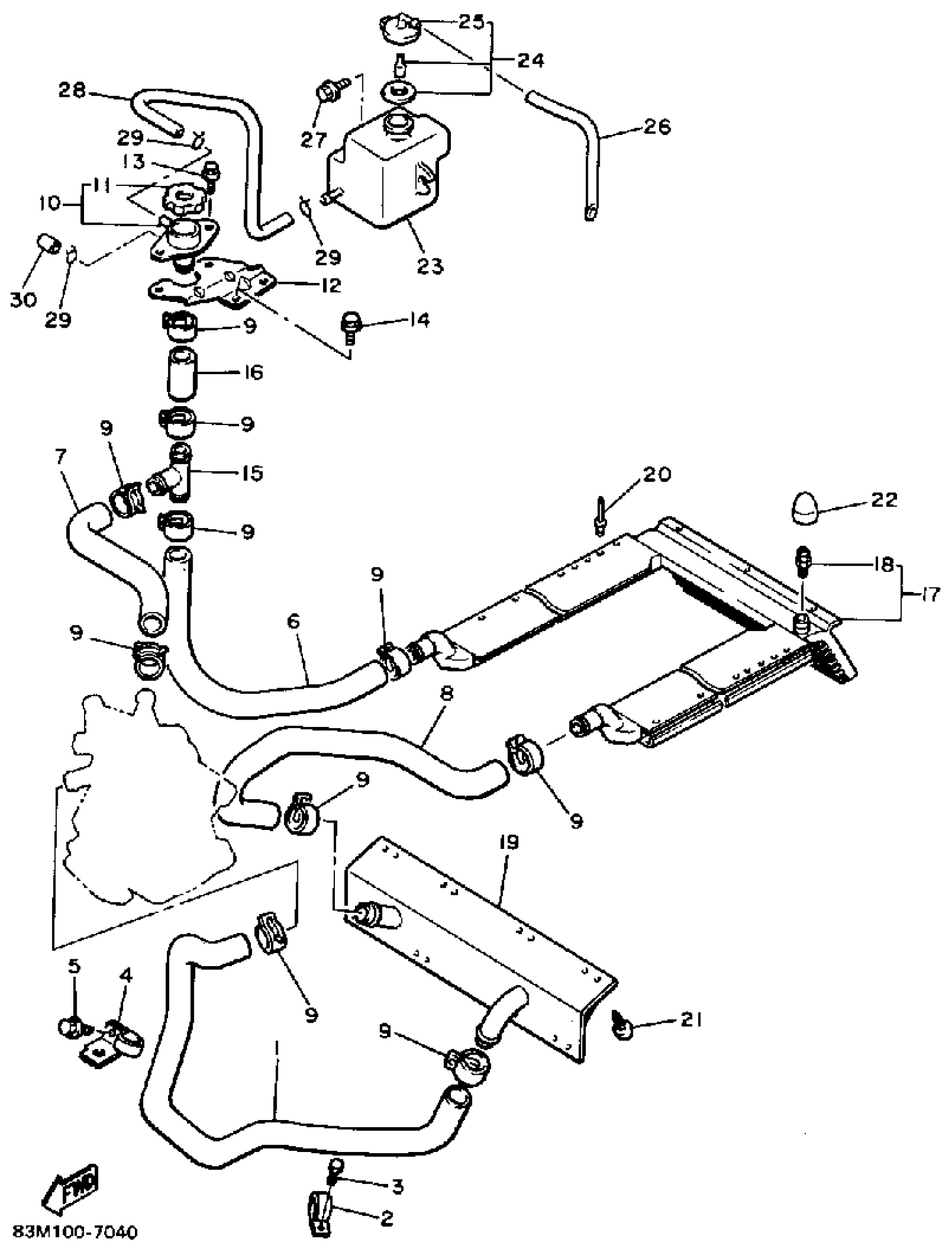

Find the part on the Radiator-Hose diagram for your 1990 Yamaha Inviter (CF300P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Inviter (CF300P) Radiator-Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 1

83M-12481-00-00

1
Out of stock

2

CLAMP

(90461-10083-00)

1
Out of stock

3

BOLT, FLANGE

95812-06010-00

1

$2.75

In stock

4

CLAMP 1

83M-12491-00-00

1
Out of stock

5

BOLT, FLANGE

95812-06010-00

1

$2.75

In stock

6

PIPE 3

81E-12483-00-00

1
Out of stock

7

PIPE 4

81E-12484-00-00

1
Out of stock

8

PIPE 5

83M-12485-00-00

1
Out of stock

9

CLIP (10V)

90467-23067-00

1

$3.86

In stock

10

CONDUCTION ASSEMBLY

47X-12590-01-00

1
Out of stock

11

CAP, RADIATOR

4FL-12462-00-00

1
Out of stock

12

STAY

81E-12443-00-00

1
Out of stock

13

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

14

BOLT, FLANGE

95822-06025-00

1

$1.46

In stock

15

JOINT, HOSE 1

81E-12581-00-00

1
Out of stock

16

PIPE 2

59W-12482-00-00

1
Out of stock

17

HEAT EXCHANGER ASSEMBLY

83M-12440-00-00

1
Out of stock

18

SCREW, BREED

82M-1247H-00-00

1
Out of stock

19

HEAT EXCHANGER ASSEMBLY

83M-1241A-00-00

1
Out of stock

20

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

21

SCREW, BINDING

98907-06012-00

—
Out of stock

22

PROTECTOR

83M-12498-00-00

1
Out of stock

23

TANK, RECOVERY

81E-21871-00-00

1
Out of stock

24

CAP

81E-21815-00-00

—
Out of stock

25

. CAP

10X-21875-00-00

1
Out of stock

26

HOSE

90445-115E8-00

1
Out of stock

27

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

28

HOSE (L230)

90445-113E2-00

—

$6.71

In stock

29

CLIP

90467-100A1-00

—
Out of stock

30

PLUG, BLIND

81E-13569-00-00

1
Out of stock
