1990 Yamaha Inviter (CF300P) Crankshaft-Piston Diagram

← All diagrams

Find the part on the Crankshaft-Piston diagram for your 1990 Yamaha Inviter (CF300P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

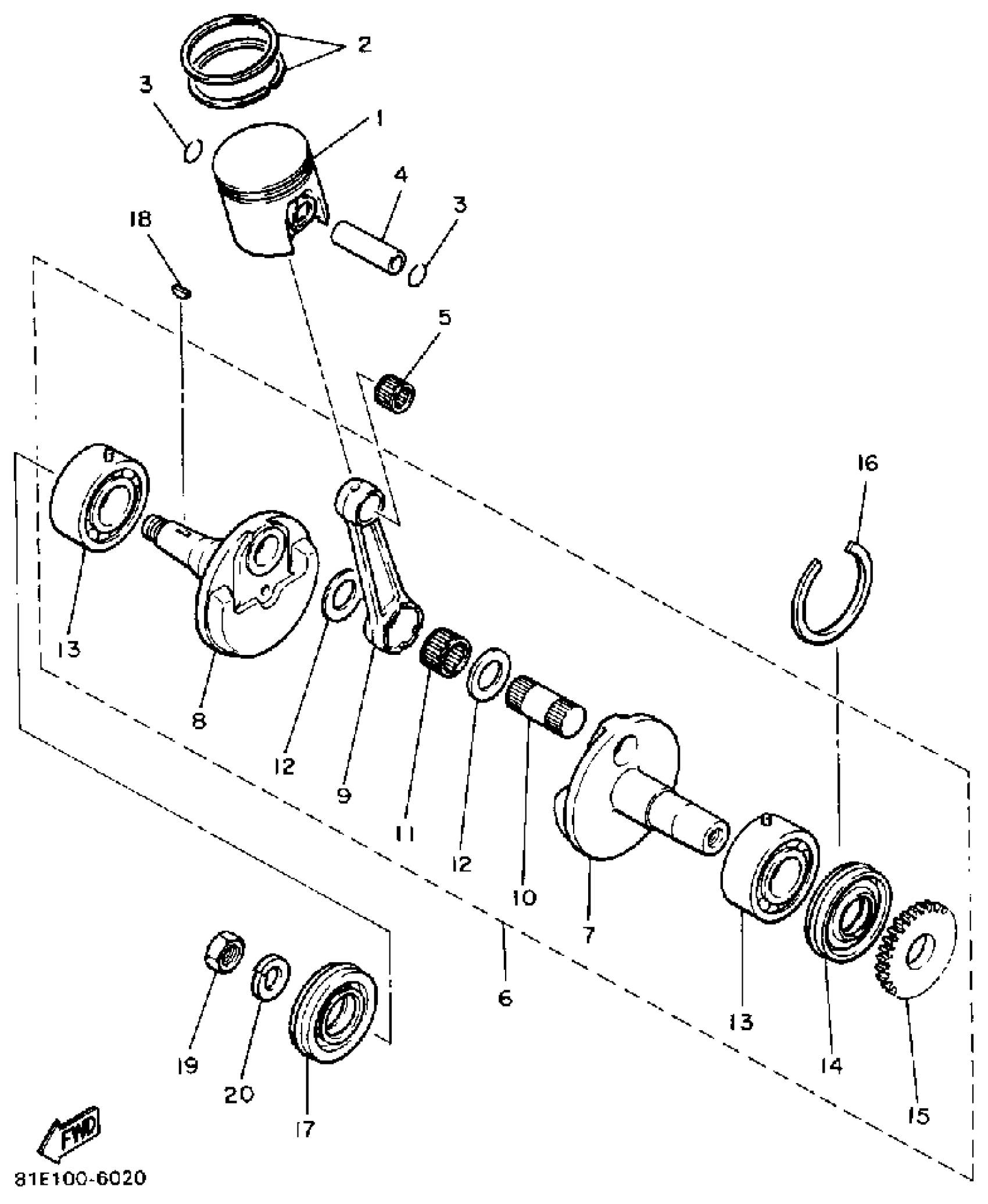

1990 Yamaha Inviter (CF300P) Crankshaft-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (STD)

81E-11631-00-95

1
Out of stock

1

PISTON 1 O/S 0.25

81E-11635-00-00

1
Out of stock

1

PISTON 2 O/S 0.50

81E-11636-00-00

1
Out of stock

2

PISTON RING SET (STD)

8R6-11601-00-00

1

$60.03

In stock

2

PISTON RING SET (1ST O/S)

8R6-11601-10-00

1

$58.52

In stock

2

PISTON RING SET (2ND O/S)

8R6-11601-20-00

1

$36.29

In stock

3

CIRCLIP (2F1)

93450-19052-00

1

$5.85

In stock

4

PIN, PISTON

818-11633-00-00

1

$28.05

In stock

5

1

$41.97

In stock

6

CRANKSHAFT ASSEMBLY

81E-11400-00-00

1
Out of stock

7

. CRANK 1

81E-11412-00-00

1
Out of stock

8

. CRANK 2

81E-11422-00-00

1
Out of stock

9

. ROD, CONNECTING

81E-11651-00-00

1
Out of stock

10

. PIN, CRANK 1

857-11681-00-00

1
Out of stock

11

. BEARING, CYLINDRICAL

93310-424L8-00

1
Out of stock

12

WASHER (152-11685-00)

90209-24073-00

—

$10.08

In stock

13

. BEARING

93306-39901-00

1
Out of stock

14

. OIL SEAL, SD-TYPE

93102-32354-00

1
Out of stock

15

GEAR, PUMP DRIVE

8R4-13178-00-00

—

$28.97

In stock

16

CIRCLIP, OUTER

93440-68150-00

1
Out of stock

17

OIL SEAL, SD-TYPE

93102-32355-00

1
Out of stock

18

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

19

NUT

90170-16425-00

—
Out of stock

20

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
