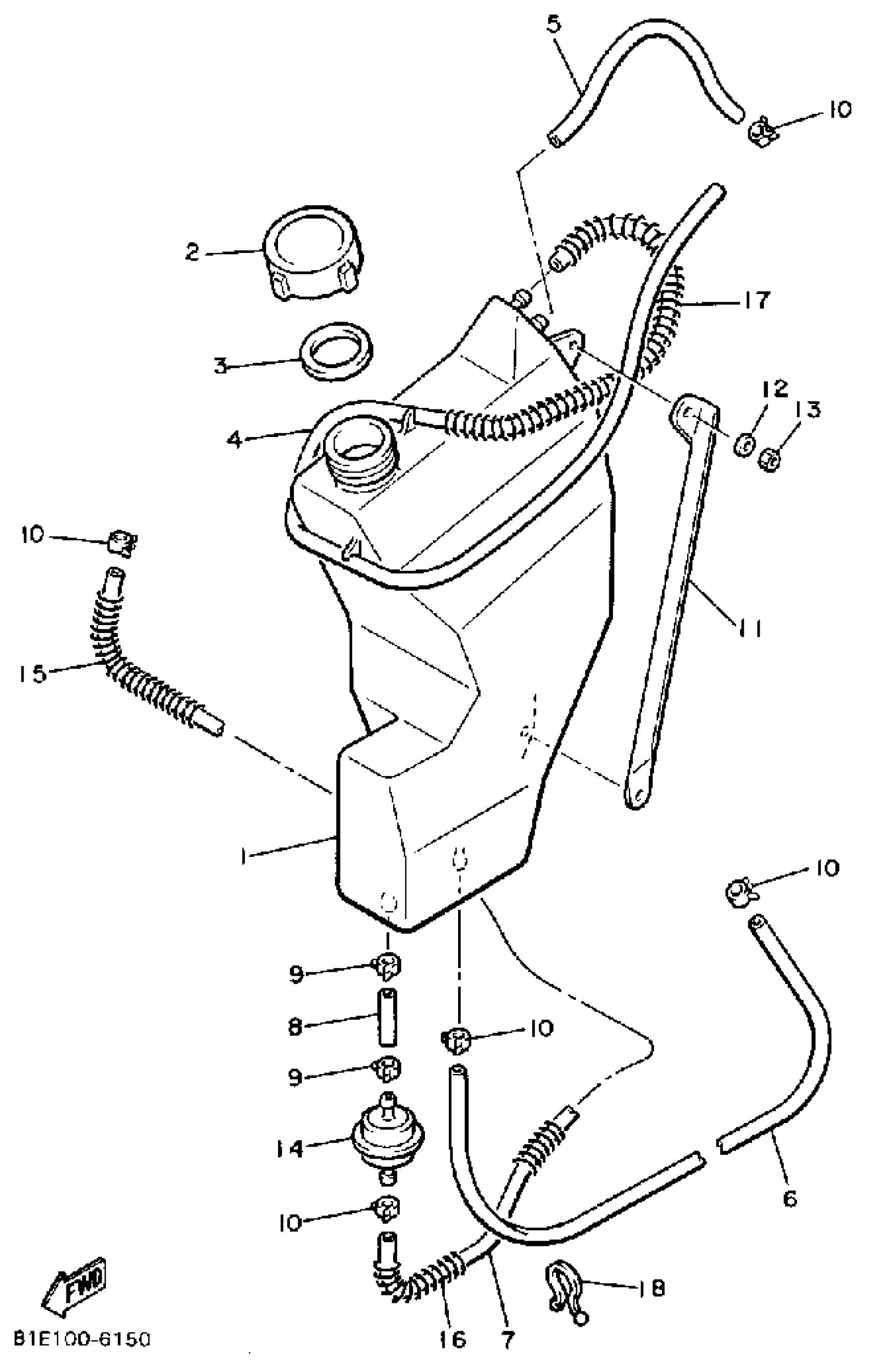

Yamaha CF300P (INVITER) 1990 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

81E-21751-00-00

Unavailable

2

BODY, CAP

8LU-21771-00-00

$31.99

3

GASKET, TANK (867)

90430-31003-00

$10.49

4

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$29.99

5

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

6

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

7

TUBE, FLEXIBLE VINYL(8AT)

91A30-05125-00

Unavailable

8

HOSE

91A30-07036-00

Unavailable

9

CLIP

90467-11028-00

Unavailable

10

CLIP (8A1)

90467-09026-00

$3.28

11

PLATE

81E-2176E-00-00

Unavailable

12

WASHER, PLATE

90201-06M02-00

Unavailable

13

NUT, NYLON

95707-06300-00

$3.50

14

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

15

SPRG., COMPRESSION (8BY1)

90501-083J9-00

Unavailable

16

PROTECTOR, PIPE

81E-24328-00-00

Unavailable

17

PROTECTOR, PIPE

8F3-24326-00-00

Unavailable

18

CLAMP (3Y2)

90464-16039-00

Unavailable
