Description

Price

1

PANEL, INSTRUMENT

83U-77711-00-00

Unavailable

2

INDICAT0R 1

8V0-77741-20-00

Unavailable

3

INDICATOR 2

8U9-77742-00-00

Unavailable

4

SCREW, PAN HEAD

90157-05M19-00

Unavailable

5

WASHER(3SX)

92907-05100-00

$8.49

6

COVER 1

83U-2198F-00-00

Unavailable

7

COVER 2

83U-2198G-00-00

Unavailable

8

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

9

WASHER, SPRING

92907-06100-00

$4.25

10

COLLAR

90387-06107-00

$8.49

11

RIVET

90269-07052-00

Unavailable

12

WASHER PLATE 829771780000

90201-05033-00

$10.49

13

INDICATOR 2

8G8-77742-00-00

Unavailable

14

INDICATOR 3

8A1-77743-00-00

Unavailable

15

CLAMP

90462-10236-00

$10.49

16

RIVET (856)

90267-48014-00

Unavailable

17

WASHER, PLATE

90201-04027-00

Unavailable

18

WASHER

81E-77728-00-00

Unavailable

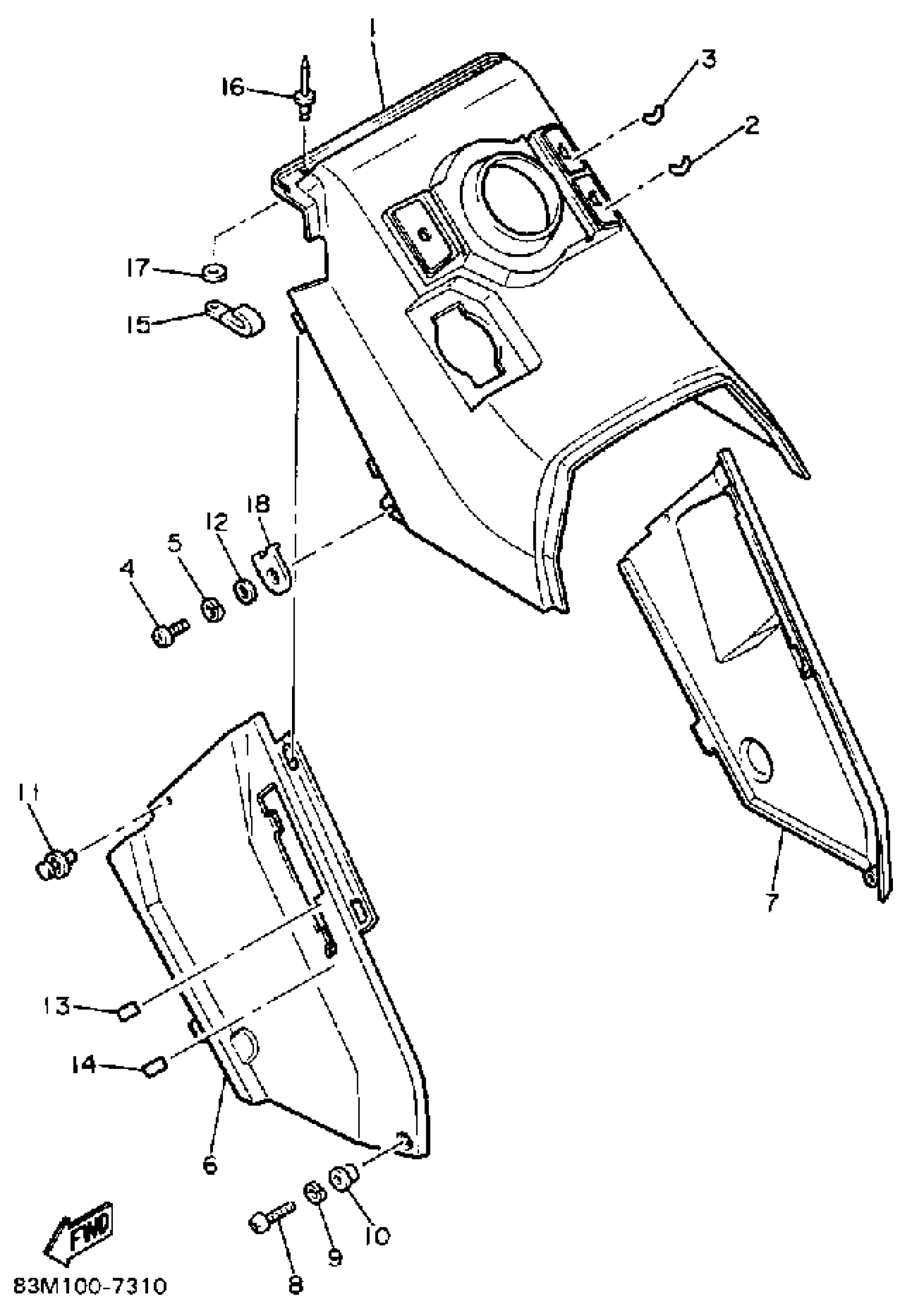

Yamaha CF300P (INVITER) 1990 INSTRUMENT PANEL Diagram

PANEL, INSTRUMENT

INDICAT0R 1

INDICATOR 2

SCREW, PAN HEAD

WASHER(3SX)

COVER 1

COVER 2

SCREW, PAN HEAD(3TJ)

WASHER, SPRING

COLLAR

RIVET

WASHER PLATE 829771780000

INDICATOR 2

INDICATOR 3

CLAMP

RIVET (856)

WASHER, PLATE

WASHER
