1990 Yamaha Inviter (CF300P) Fuel Tank Diagram

← All diagrams

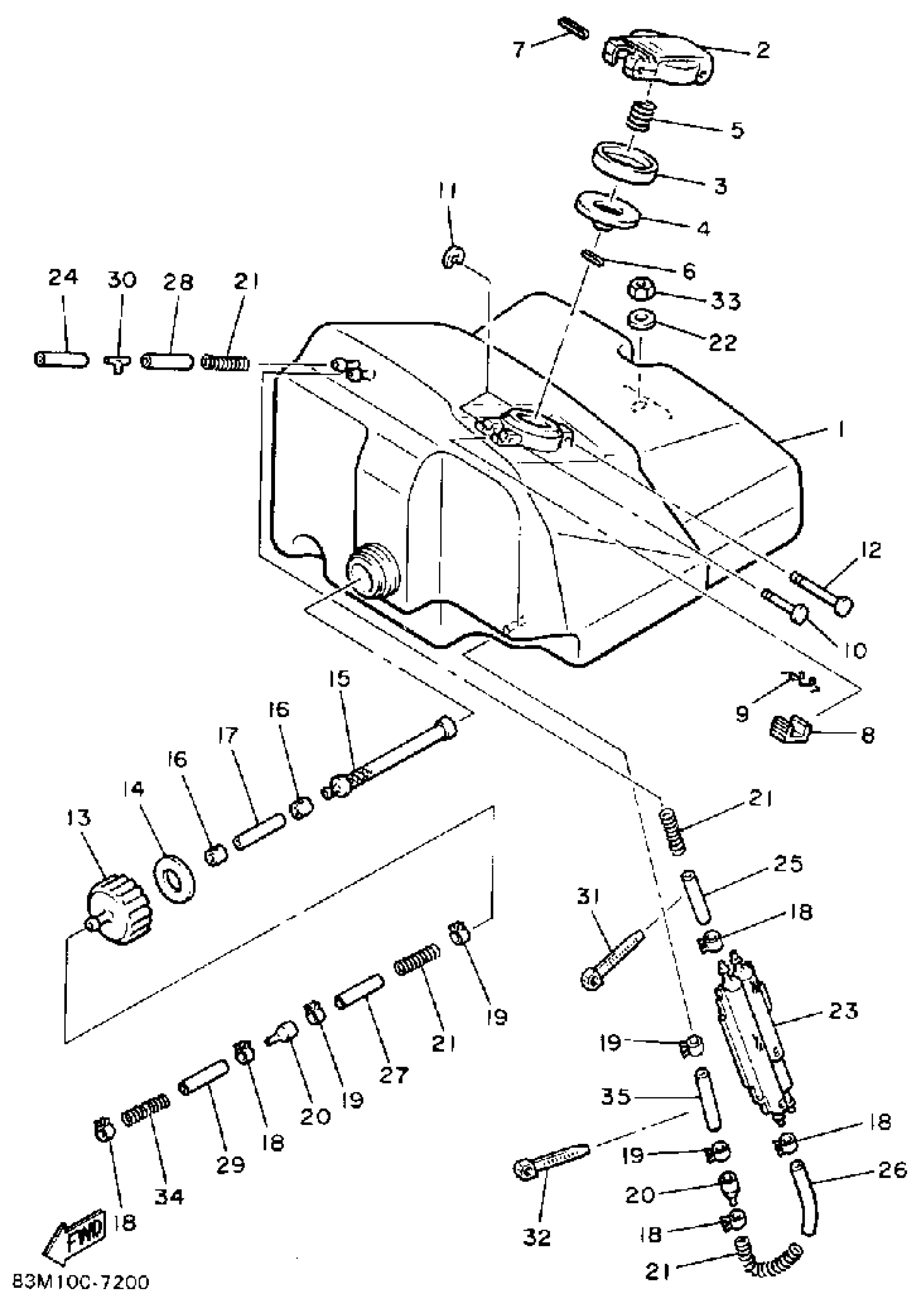

Find the part on the Fuel Tank diagram for your 1990 Yamaha Inviter (CF300P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Inviter (CF300P) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

83M-24111-00-00

1
Out of stock

2

BODY, CAP

8W6-24611-00-00

—

$39.46

In stock

3

DISK,CAP

813-24613-01-00

1

$18.71

In stock

4

GASKET, CAP 1

89A-24641-00-00

1

$9.35

In stock

5

SPRING, CAP

90501-20130-00

1

$6.80

In stock

6

PIN, SPRING

91690-30016-00

1

$5.88

In stock

7

PIN, SPRING (8W6)

91609-25050-00

1

$1.20

In stock

8

HOOK

83M-24628-00-00

1

$19.68

In stock

9

SPRING, TORSION(81E)

90508-10715-00

—

$5.48

In stock

10

PIN (813)

90249-03017-00

1

$2.25

In stock

11

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

12

PIN (8W6)

90249-03175-00

—

$2.57

In stock

13

BODY, CAP

8R4-24644-00-00

—

$14.54

In stock

14

PACKING, FILTER

8F3-24564-00-00

1

$11.47

In stock

15

FILTER ASSEMBLY

81E-24560-00-00

1
Out of stock

16

. BAND 1

650-24351-51-00

1

$2.69

In stock

17

HOSE (L210)

90445-110F5-00

—

$14.08

In stock

18

CLIP (8A1)

90467-09026-00

—

$2.72

In stock

19

CLIP

90467-11028-00

1

$5.14

In stock

20

PIPE, JOINT 1

8Y4-24376-00-00

1
Out of stock

21

PROTECTOR, PIPE

8F3-24327-00-00

1
Out of stock

22

WASHER, PLATE (8L8)

90201-087A9-00

—

$3.74

In stock

23

GAUGE, FUEL

81E-24179-00-00

1
Out of stock

24

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

25

HOSE (81E)

(90446-09256-00)

1
Out of stock

26

HOSE

90446-11326-00

1
Out of stock

27

HOSE

90446-11326-00

1
Out of stock

28

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

—

$16.89

In stock

29

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

30

PIPE, JOINT

801-24376-00-00

—

$11.18

In stock

31

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock

32

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock

33

NUT, U

95617-08100-00

—

$6.78

In stock

34

PROTECTOR, PIPE

8F3-24326-00-00

1
Out of stock

35

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock
