1990 Yamaha Inviter (CF300P) AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1990 Yamaha Inviter (CF300P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

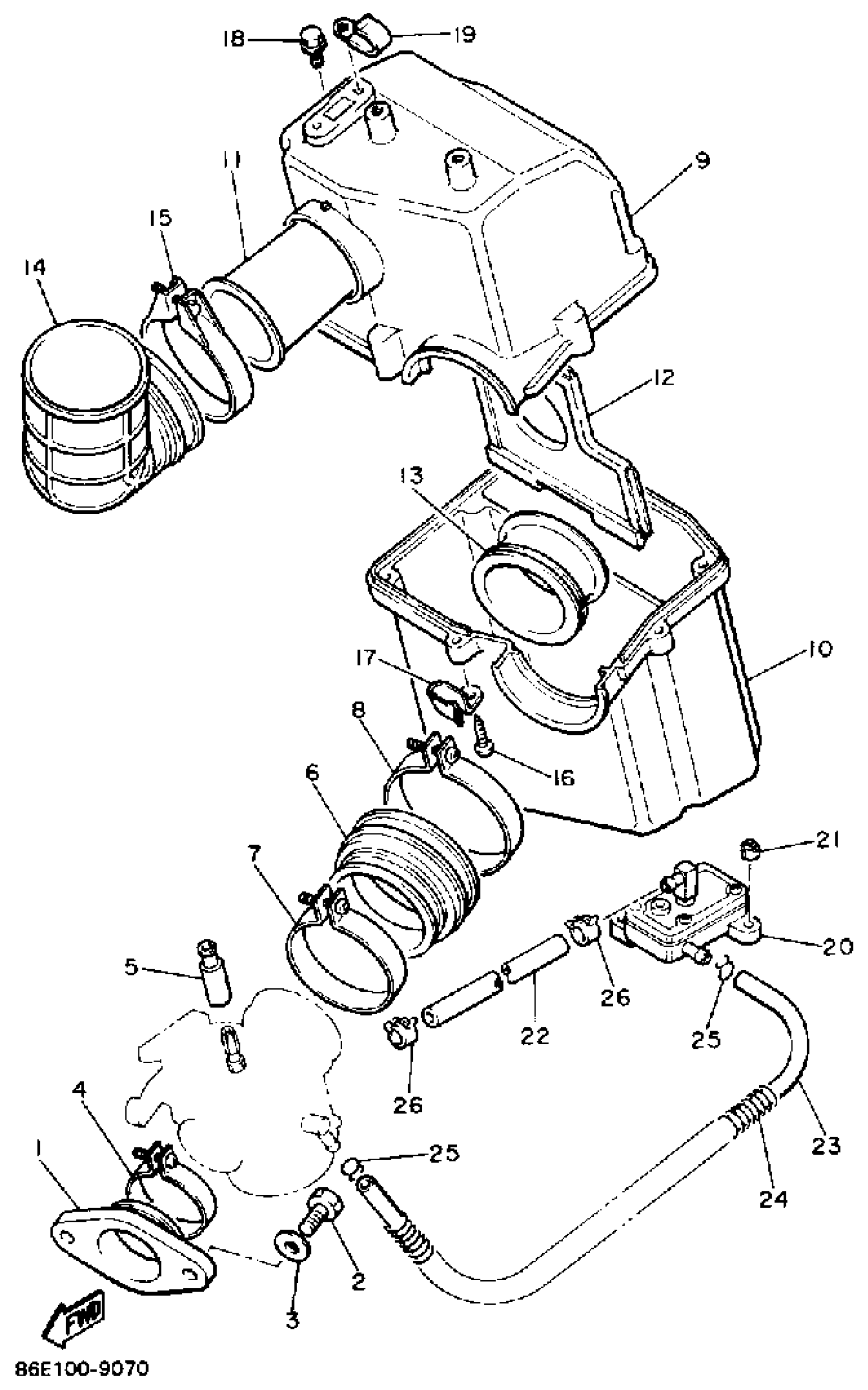

1990 Yamaha Inviter (CF300P) AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE

81E-13555-00-00

1
Out of stock

2

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

3

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

4

BAND

86M-13575-00-00

1

$16.45

In stock

5

BOOT

8J5-26352-00-00

1
Out of stock

6

JOINT, AIR CLEANER

8G8-14453-01-00

1

$25.05

In stock

7

CLAMP, HOSE (29L)

90460-68230-00

1
Out of stock

8

CLAMP, HOSE(59V)

90460-85277-00

1

$12.62

In stock

9

SILENCER, INTAKE 1

81E-14431-01-00

1
Out of stock

10

SILENCER, INTAKE 2

81E-14441-00-00

1
Out of stock

11

PIPE

(81E-14419-00-00)

1
Out of stock

12

PLATE

81E-14477-00-00

1
Out of stock

13

PIPE

81E-14465-00-00

1
Out of stock

14

JOINT

81E-14454-00-00

1
Out of stock

15

CLAMP, HOSE

90460-77016-00

1
Out of stock

16

—

$2.03

In stock

17

CLAMP (1L9)

(90465-10092-00)

1
Out of stock

18

BOLT, WITH WASHER(8V7)

90119-06108-00

—

$6.68

In stock

19

CLAMP

90462-10236-00

—

$8.97

In stock

20

FUEL PUMP ASY

8J6-24410-01-00

1
Out of stock

21

NUT, NYLON

95707-06300-00

—

$3.20

In stock

22

HOSE (L450)

90445-10144-00

—

$4.52

In stock

23

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

24

SPRING, COMPRESSION(7MX)

90501-084J0-00

—

$5.86

In stock

25

CLIP

90467-090A2-00

—

$2.51

In stock

26

CLIP (8A1)

90467-09026-00

—

$2.72

In stock
