Description

Price

1

BRACKET, ENGINE 1

83M-21411-00-00

Unavailable

2

UNAVAILABLE IN PRICE BOOK

[81-E2141-90-10

Unavailable

3

BOLT

97027-10018-00

Unavailable

4

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

5

DAMPER, RUBBER 1

81E-21485-00-00

Unavailable

6

DAMPER 2

81E-21486-00-00

Unavailable

7

WASHER, LOCK

81E-21491-00-00

Unavailable

8

WASHER, PLATE (856)

90201-10321-00

$8.49

9

NUT, FLANGE(3BM)

95704-10500-00

$4.29

10

BOLT(6TD)

97017-10025-00

$8.49

11

WASHER(6TA)

92907-10100-00

$8.49

12

BOLT, FLANGE

95817-08012-00

$5.49

13

STOPPER, BRAKE PEDL

81E-21449-00-00

Unavailable

14

BRACKET, ENG LOWER

81E-21489-01-00

Unavailable

15

DAMPER

81E-21488-01-00

Unavailable

16

WASHER, PLATE (4R4)

90201-080E4-00

Unavailable

17

BOLT, FLANGE

95817-08012-00

$5.49

18

WASHER, PLATE

90201-10144-00

Unavailable

19

BOLT(6TD)

97017-10025-00

$8.49

20

WASHER(6TA)

92907-10100-00

$8.49

21

BRKT, GUARD FITTING

81E-21972-00-00

Unavailable

22

DAMPER

83M-21488-00-00

Unavailable

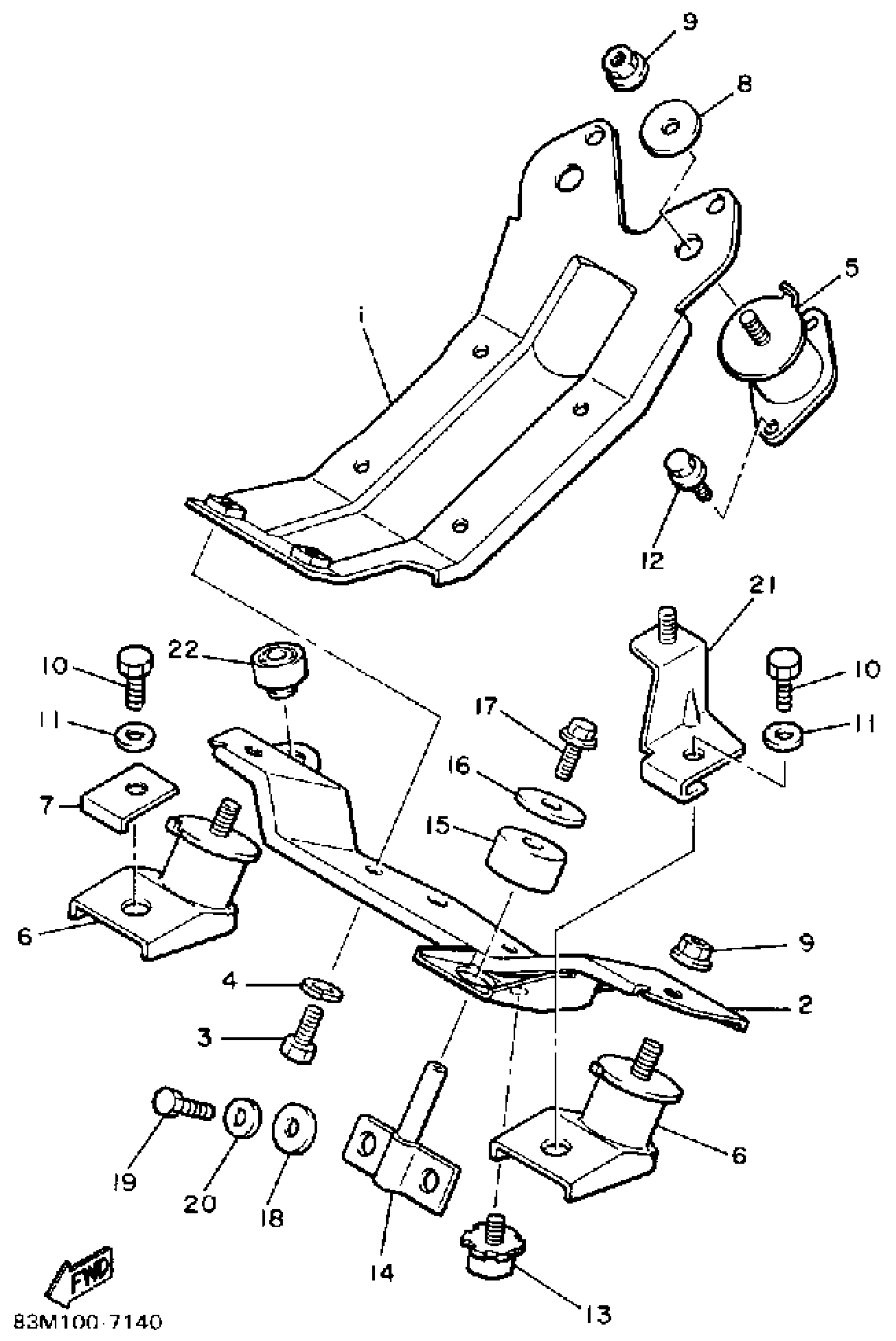

Yamaha CF300P (INVITER) 1990 ENGINE BRACKET Diagram

BRACKET, ENGINE 1

UNAVAILABLE IN PRICE BOOK

BOLT

YBS67-10 WASHER, SPRING

DAMPER, RUBBER 1

DAMPER 2

WASHER, LOCK

WASHER, PLATE (856)

NUT, FLANGE(3BM)

BOLT(6TD)

WASHER(6TA)

BOLT, FLANGE

STOPPER, BRAKE PEDL

BRACKET, ENG LOWER

DAMPER

WASHER, PLATE (4R4)

BOLT, FLANGE

WASHER, PLATE

BOLT(6TD)

WASHER(6TA)

BRKT, GUARD FITTING

DAMPER
