- CF300P (INVITER) 1990
ELECTRICAL 1

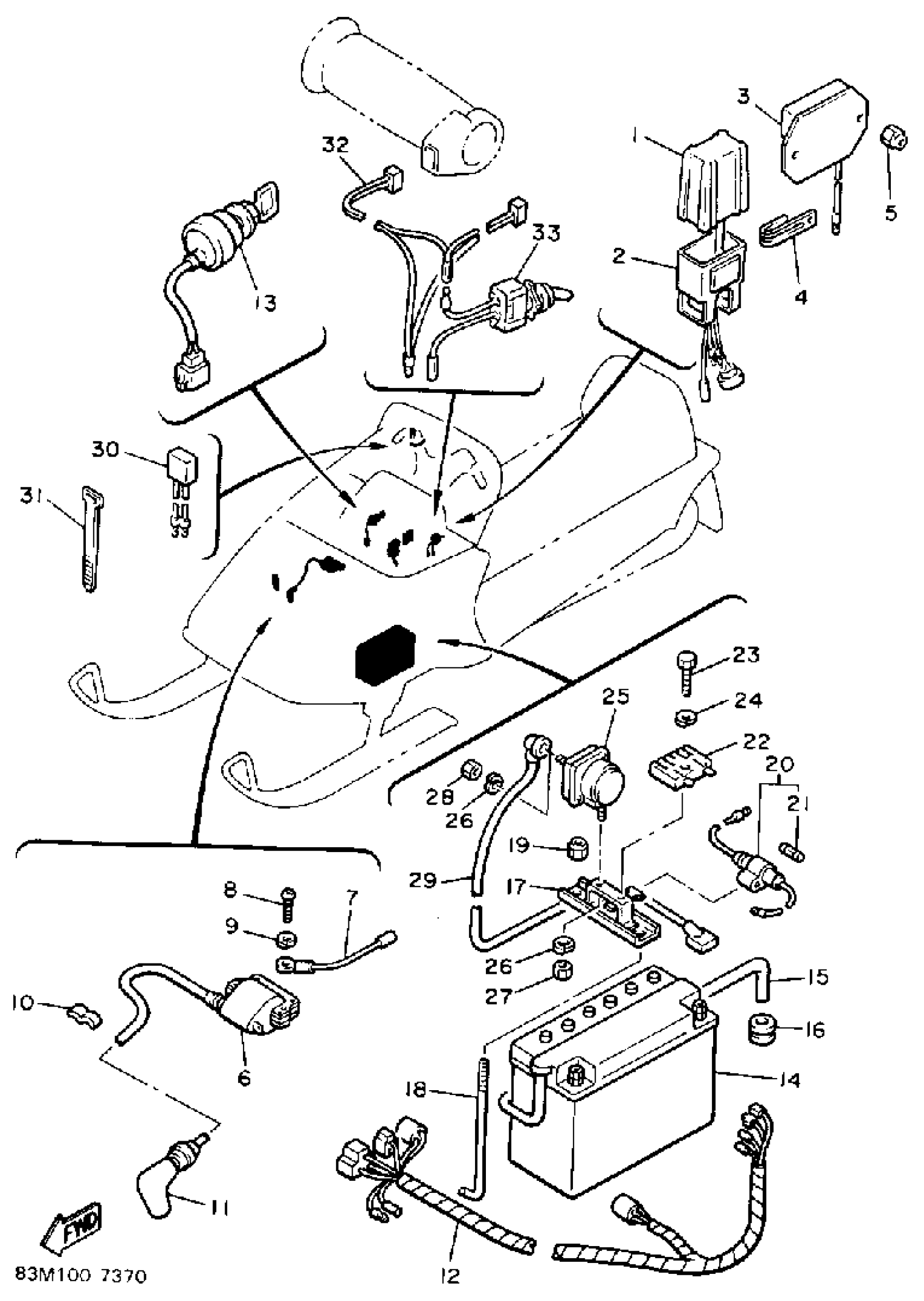

Yamaha CF300P (INVITER) 1990 ELECTRICAL 1 Diagram
#
1
C.D.I. UNIT ASSEMBLY
81E-85540-M0-00
Unavailable
2
BAND
2A7-85546-00-00
Unavailable
3
VOLTAGE REGULATOR ASSY
82M-81910-A0-00
Unavailable
4
CLAMP
90462-10236-00
$10.49
5
NUT, NYLON
95707-06300-00
$3.50
6
IGNITION COIL ASSY
86B-82310-13-00
$84.99
7
WIRE, SUB-LEAD
87D-82318-00-00
Unavailable
8
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
9
WASHER, SPRING
92995-06100-00
Unavailable
10
CLAMP, CORD
861-82361-00-00
Unavailable
11
PLUG CAP ASSY
8DG-82370-00-00
$49.99
12
WIRE HARNESS ASSEMBLY
83U-82590-20-00
Unavailable
13
MAIN SWITCH ASSY
8K1-82510-21-00
Unavailable
14
YB16ALA2 YUASA BATTERY
YB1-6ALA2-00-00
Unavailable
15
HOSE (L1500)
90445-084J0-00
$18.99
16
GROMMET (461)
90480-12067-00
Unavailable
17
PLATE, BATTERY FIT
81E-82136-00-00
Unavailable
18
SCREW, FITTING
8Y7-82133-00-00
Unavailable
19
NUT, NYLON
95707-06300-00
$3.50
20
FUSE HOLDER ASSEMBLY
2J2-82150-10-00
Unavailable
21
FUSE
682-82151-02-00
Unavailable
22
RECTIFIER ASSY (RXKING,RXS)
3HB-H1970-01-00
Unavailable
23
BOLT, HEXAGON
97017-06020-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
START SWITCH ASSEMBLY
81E-81940-10-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
27
NUT, HEXAGON
95380-06600-00
Unavailable
28
NUT(650)
95380-06700-00
Unavailable
29
WIRE PLUS LEAD
84N-82115-00-00
Unavailable
30
CHECKER, PILOT LAMP
38W-85774-00-00
Unavailable
31
CLAMP(4FM)
90464-15195-00
Unavailable
32
WIRE, SUB-LEAD
80X-82318-00-00
Unavailable
33
SWITCH
82J-82917-00-00
Unavailable
