Description

Price

1

BUMPER, FRONT 1

81E-77511-01-00

Unavailable

2

BUSH, RUBBER 2

81E-77516-00-00

Unavailable

3

SPACER, BUMPER

81E-77529-00-00

Unavailable

4

RIVET,BLIND

90267-40080-00

Unavailable

5

WASHER, PLATE

90201-04027-00

$3.02

6

SCREW, BIND(J39)

98980-06014-00

$9.49

7

NUT, NYLON

95707-06300-00

$3.50

8

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

9

END, BUMPER

81E-77523-00-00

Unavailable

10

END, BUMPER

81E-77524-00-00

Unavailable

11

COLLAR (3L6)

90387-06761-00

$9.49

12

SCREW, BINDING

98907-06016-00

$9.49

13

BUMPER, REAR 1

81E-77541-00-00

Unavailable

14

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

15

NUT, NYLON

95717-08300-00

$2.70

16

COVER, 3

83U-77563-00-00

Unavailable

17

COVER, 4

83U-77564-00-00

Unavailable

18

RIVET(81E)

90269-08050-00

Unavailable

19

FLAP

88C-77595-00-00

Unavailable

20

STOPPER, FLAP

80J-77596-00-00

Unavailable

21

RIVET, BLIND (8R6)

90267-48086-00

Unavailable

22

PROTECTOR 1

81E-77551-01-00

Unavailable

23

PROTECTOR 2

81E-77552-01-00

Unavailable

24

CLAMP

(90464-13080-00)

Unavailable

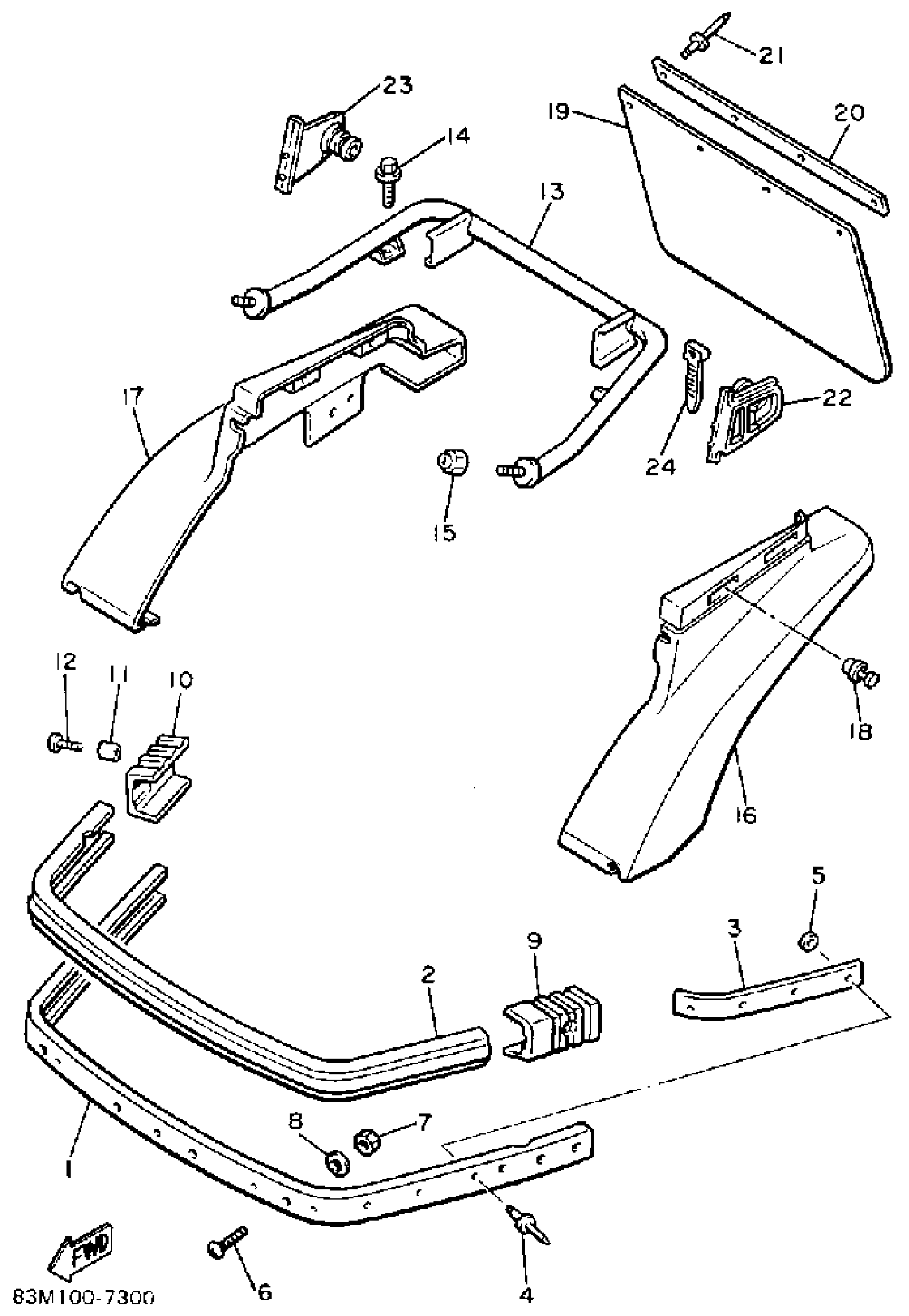

Yamaha CF300P (INVITER) 1990 BUMPER Diagram

BUMPER, FRONT 1

BUSH, RUBBER 2

SPACER, BUMPER

RIVET,BLIND

WASHER, PLATE

SCREW, BIND(J39)

NUT, NYLON

YBS66-6 WASHER, PLAIN

END, BUMPER

END, BUMPER

COLLAR (3L6)

SCREW, BINDING

BUMPER, REAR 1

BOLT, FLANGE(JN5)

NUT, NYLON

COVER, 3

COVER, 4

RIVET(81E)

FLAP

STOPPER, FLAP

RIVET, BLIND (8R6)

PROTECTOR 1

PROTECTOR 2

CLAMP
