Description

Price

1

HOUSING, WATER PUMP

81E-12421-00-00

Unavailable

2

IMPELLER SHAFT ASSEMBLY

81E-12450-00-00

Unavailable

3

SEAL, MECHANICAL

11H-12438-10-00

$62.99

4

BRG,R-B 6000RS 32MM 30G KY

93306-00002-00

Unavailable

5

COLLAR

90387-133Y9-00

Unavailable

6

COLLAR (1K5)

90387-10567-00

$9.49

7

CIRCLIP, INNER

93450-28098-00

Unavailable

8

PULLEY 2

81E-12619-00-00

Unavailable

9

WASHER, PLATE (10X)

90201-124F8-00

$9.49

9

WASHER, PLATE (8M6)

90201-105A8-00

$5.60

10

NUT, FLANGE

95704-08500-00

$8.49

11

O-RING

93210-20717-00

Unavailable

12

GASKET, HSNG CVR 1

81E-12427-01-00

Unavailable

13

BOLT(3RV)

97014-06035-00

$2.75

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

Unavailable

16

PIN,DOWEL (603)

93604-10011-00

Unavailable

17

BELT 1

81E-12444-00-00

Unavailable

18

COVER 1

81E-1246A-00-00

Unavailable

19

COLLAR(2NL)

90387-060U2-00

Unavailable

20

GROMMET (461)

90480-12067-00

Unavailable

21

BOLT, WITH WASHER(8V7)

90119-06108-00

Unavailable

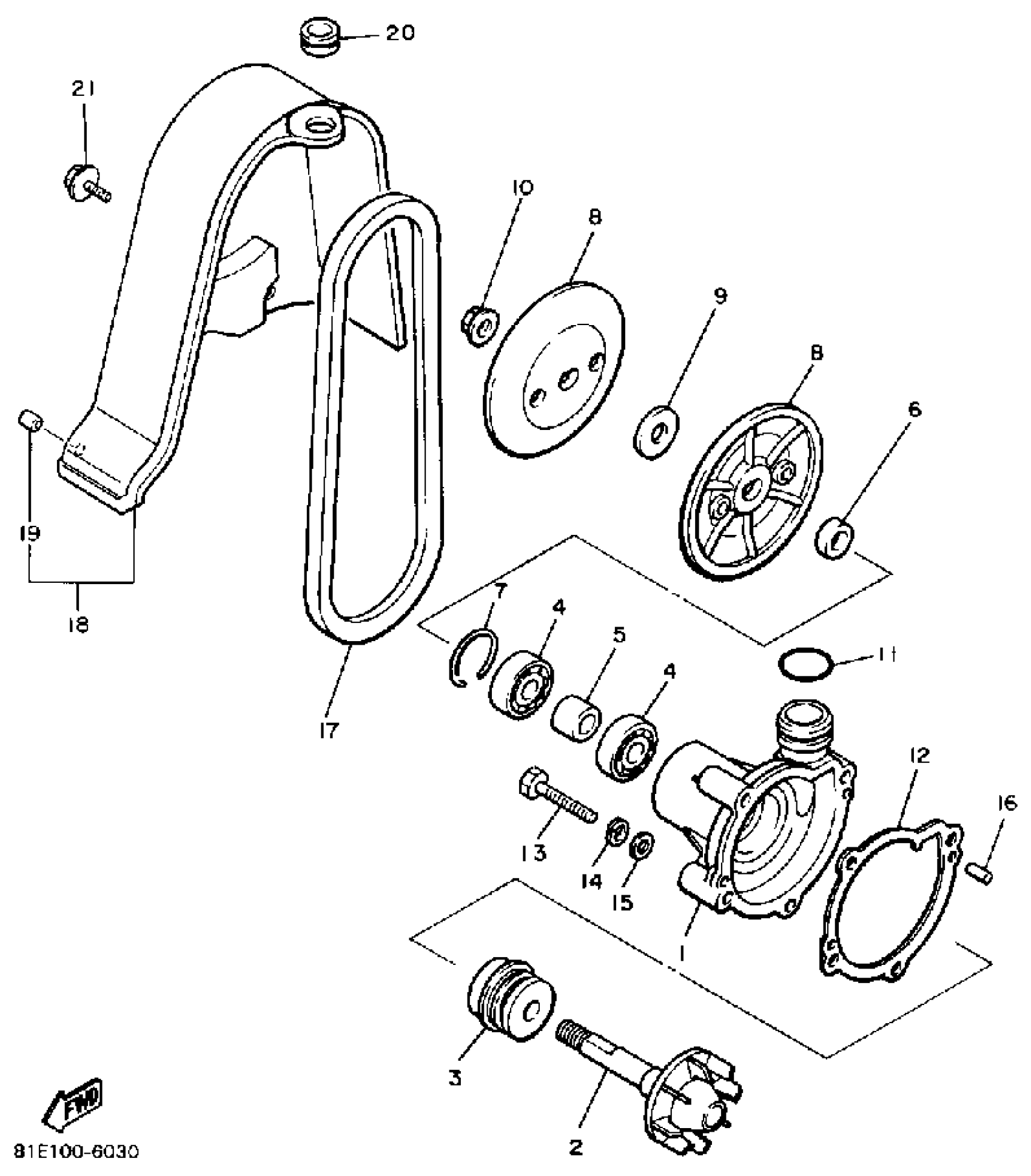

Yamaha CF300N (INVITER) 1989 WATER PUMP Diagram

HOUSING, WATER PUMP

IMPELLER SHAFT ASSEMBLY

SEAL, MECHANICAL

BRG,R-B 6000RS 32MM 30G KY

COLLAR

COLLAR (1K5)

CIRCLIP, INNER

PULLEY 2

WASHER, PLATE (10X)

WASHER, PLATE (8M6)

NUT, FLANGE

O-RING

GASKET, HSNG CVR 1

BOLT(3RV)

WASHER, SPRING

WASHER, PLAIN (646)

PIN,DOWEL (603)

BELT 1

COVER 1

COLLAR(2NL)

GROMMET (461)

BOLT, WITH WASHER(8V7)
