Description

Price

1

COVER, OIL PUMP

8R4-15416-00-00

Unavailable

2

COVER, OIL PUMP 2

8R4-15426-00-00

Unavailable

3

OIL SEAL (J10)

93101-10090-00

$8.49

4

METAL, WORM SHAFT OUTER

821-13176-00-00

$17.49

5

SHAFT, WORM

83M-13175-00-00

Unavailable

6

GEAR, DRIVE (59T)

8R4-13188-00-00

Unavailable

7

PLATE, CAM THRUST

137-13148-00-00

Unavailable

8

WASHER, WAVE (137)

90206-11016-00

Unavailable

9

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

10

CIRCLIP(10W)

99009-10400-00

$4.73

11

PIN,DOWEL (137)

93603-22028-00

$3.76

12

OIL SEAL (8R4)

93104-29072-00

$7.49

13

SCREW PAN HEAD

98580-06020-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

PIN, DOWEL

91810-18022-00

Unavailable

17

BOLT, FLANGE

95817-06035-00

Unavailable

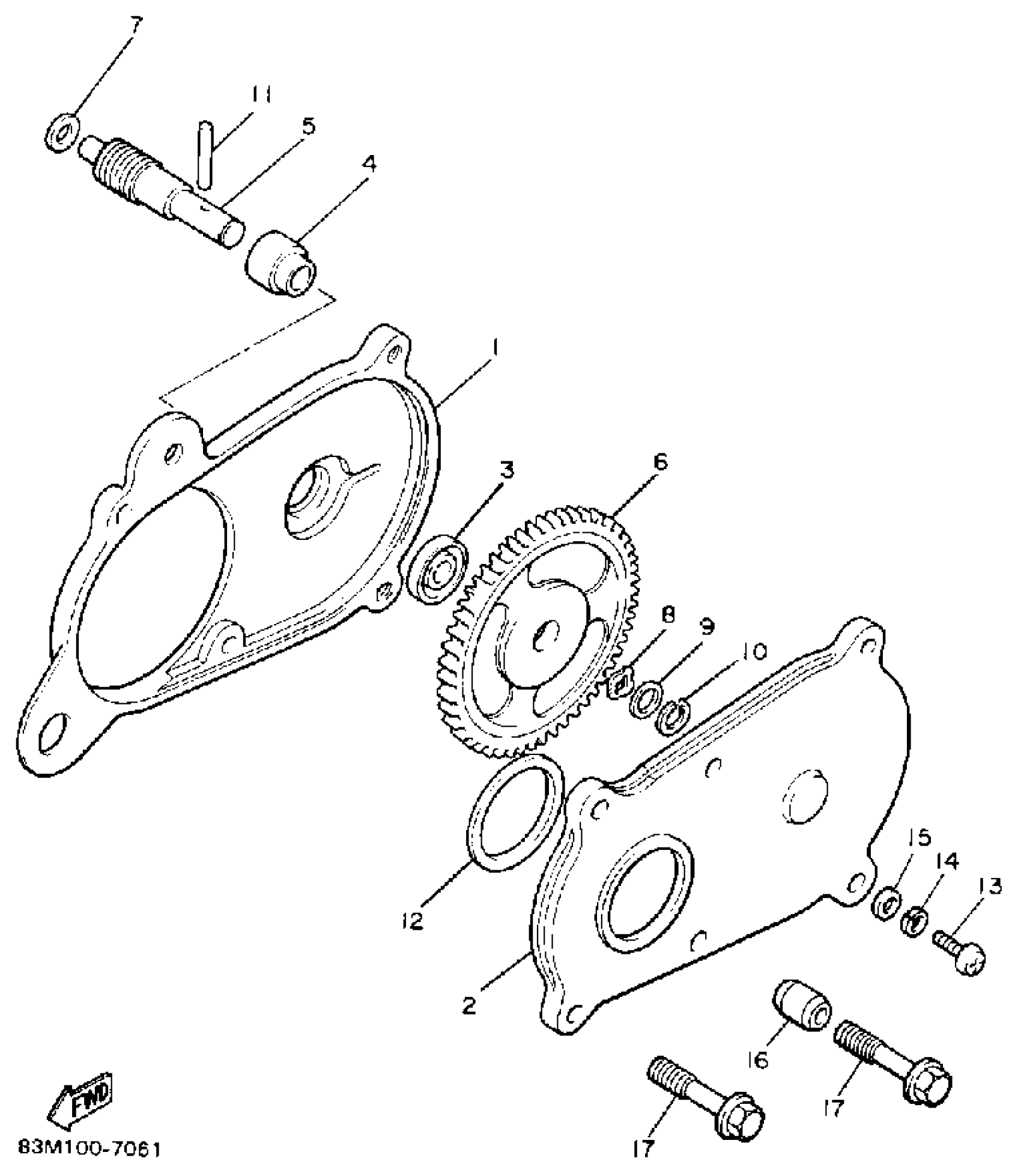

Yamaha CF300N (INVITER) 1989 PUMP DRIVE-GEAR Diagram

COVER, OIL PUMP

COVER, OIL PUMP 2

OIL SEAL (J10)

METAL, WORM SHAFT OUTER

SHAFT, WORM

GEAR, DRIVE (59T)

PLATE, CAM THRUST

WASHER, WAVE (137)

WASHER, PLATE (1E7)

CIRCLIP(10W)

PIN,DOWEL (137)

OIL SEAL (8R4)

SCREW PAN HEAD

WASHER, SPRING

WASHER, PLAIN (646)

PIN, DOWEL

BOLT, FLANGE
