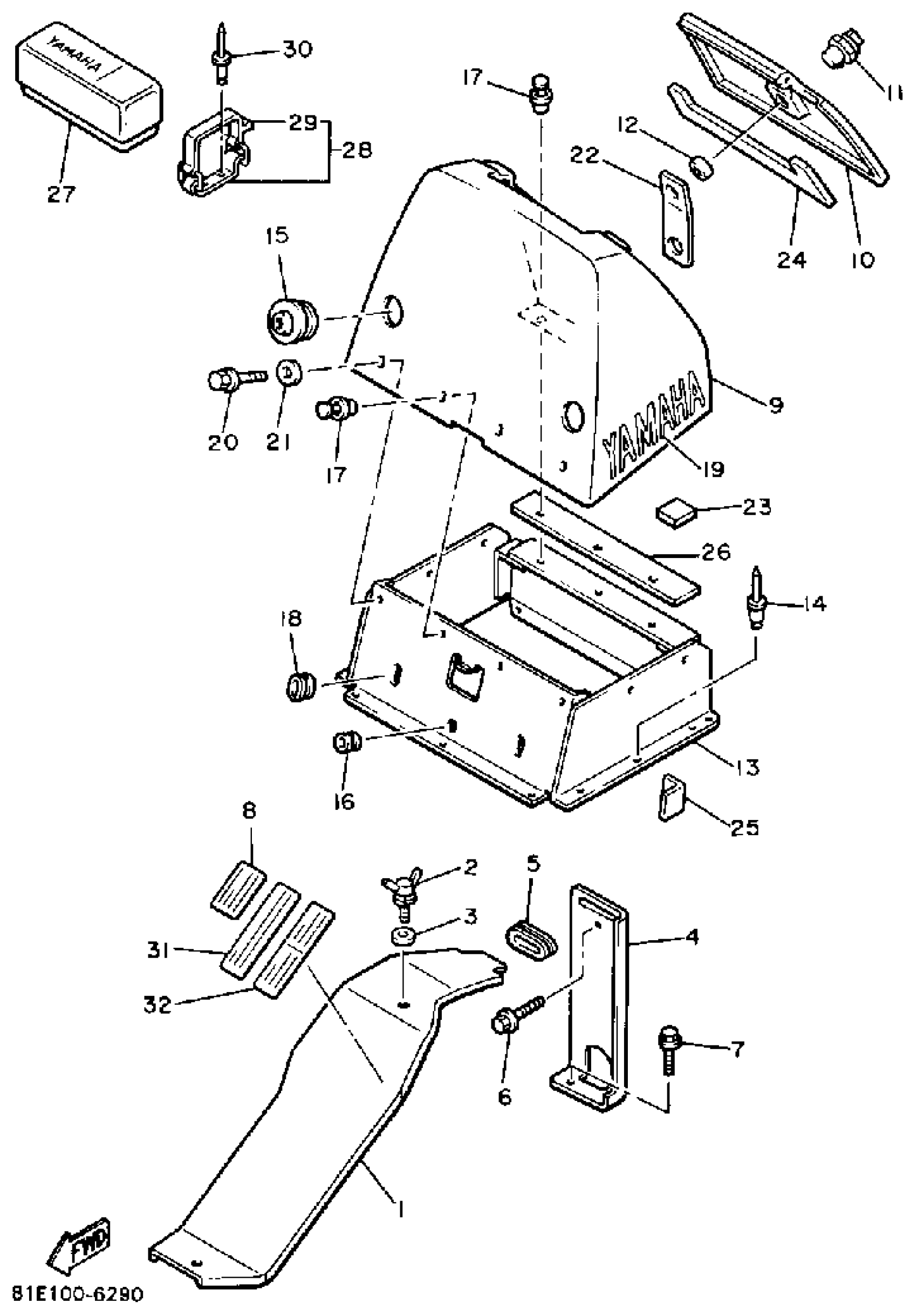

Yamaha CF300N (INVITER) 1989 GUARD-LUGGAGE BOX Diagram

#

Description
Price

1

GUARD, DRIVE

81E-77311-00-00

Unavailable

2

BOLT, WING

90122-08023-00

Unavailable

3

WASHER, PLATE (12X)

90201-087F0-00

$5.60

4

BRACKET 1

81E-77315-00-00

Unavailable

5

GROMMET

(90480-58440-00)

Unavailable

6

BOLT, FLANGE

95817-08012-00

$5.49

7

BOLT, FLANGE

95812-06010-00

$2.98

8

LABEL, WARNING 2

8BD-77762-00-00

$7.99

9

LUGGAGE BOX

86W-77391-00-00

Unavailable

10

COVER, LUGGAGE BOXBOX

86W-77392-00-00

Unavailable

11

SIDE COVER LOCK ASSY (J42-21708-00-00)

25G-21708-00-00

Unavailable

12

COLLAR

90387-205N3-00

Unavailable

13

SHEET, LUGGAGE BOX

81E-77394-00-00

Unavailable

14

RIVET, BLIND

90267-48117-00

Unavailable

15

PROTECTOR

81E-77373-00-00

Unavailable

16

GROMMET

(90480-13175-00)

Unavailable

17

RIVET(81E)

90269-08050-00

Unavailable

18

GROMMET

90480-22084-00

Unavailable

19

EMBLEM 5

86E-77355-00-00

Unavailable

20

BOLT, SMALL FLANGE

95027-06040-00

Unavailable

21

COLLAR

90387-061R5-00

Unavailable

22

PLATE

81E-77577-00-00

Unavailable

23

TAPE 2

81E-7717F-00-00

Unavailable

24

TAPE 3

81E-7717G-00-00

Unavailable

25

DAMPER 1

81E-77319-00-00

Unavailable

26

TAPE 5

81E-7717J-00-00

Unavailable

27

TOOL KIT

85L-28100-01-00

Unavailable

28

BRACKET, TOOL BOX FITTING

81E-21945-00-00

Unavailable

29

BAND, BATTERY

4J2-82131-01-00

Unavailable

30

RIVET, BLIND (8H4)

90267-48053-00

Unavailable

31

LABEL, CAUTION

81E-1417E-00-00

Unavailable

32

LABEL, 1

81E-47578-00-00

Unavailable
