- CF300N (INVITER) 1989
FUEL TANK

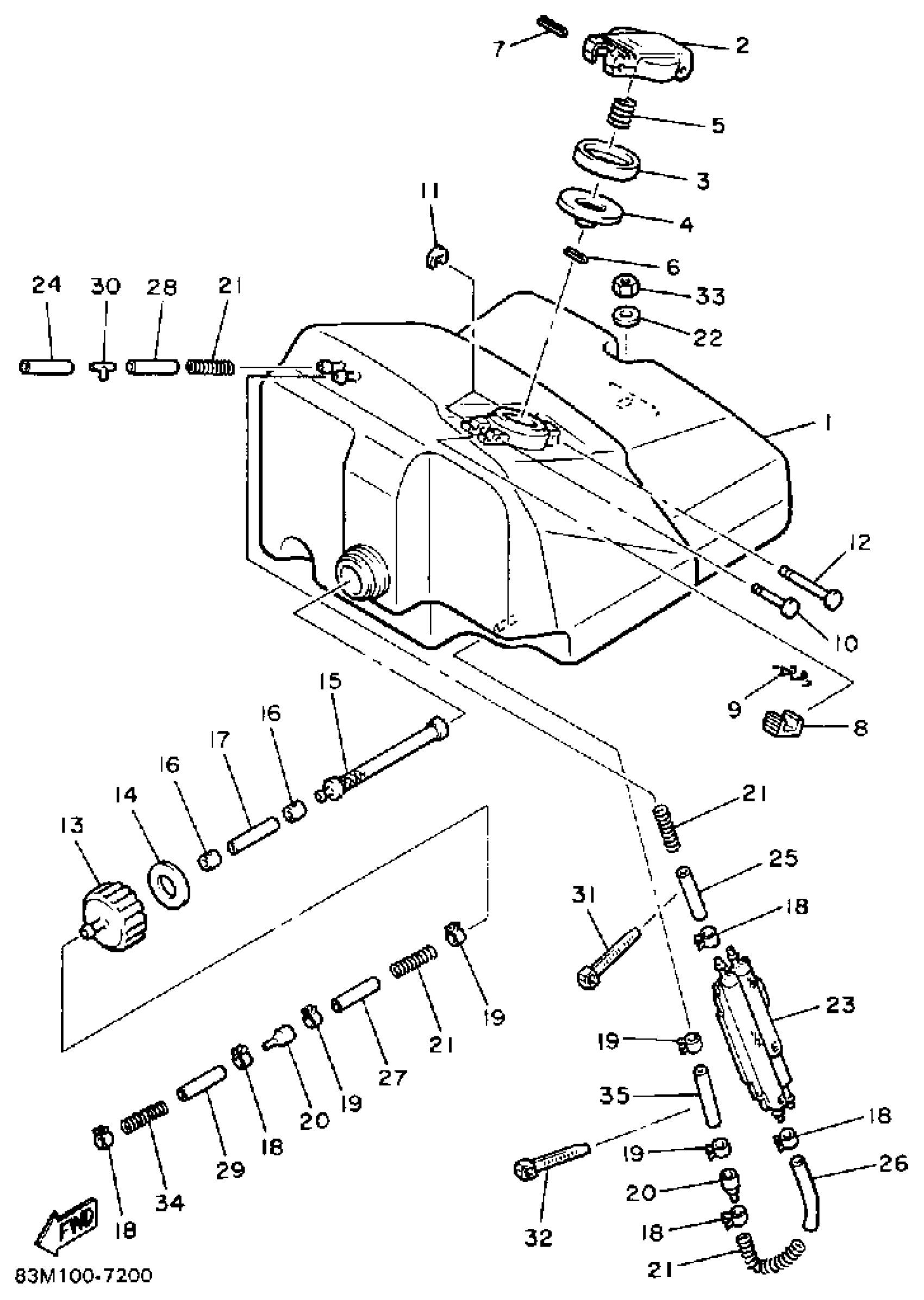

Yamaha CF300N (INVITER) 1989 FUEL TANK Diagram
#
1
FUEL TANK
83M-24111-00-00
Unavailable
2
BODY, CAP
8W6-24611-00-00
Unavailable
3
DISK,CAP
813-24613-01-00
$20.99
4
GASKET, CAP 1
89A-24641-00-00
$10.99
5
SPRING, CAP
90501-20130-00
$8.49
6
PIN, SPRING
91690-30016-00
Unavailable
7
PIN, SPRING (8W6)
91609-25050-00
$0.90
8
HOOK
83M-24628-00-00
$24.99
9
SPRING, TORSION(81E)
90508-10715-00
Unavailable
10
PIN (813)
90249-03017-00
$7.49
11
CIRCLIP (604)
93430-02001-00
$8.49
12
PIN (8W6)
90249-03175-00
Unavailable
13
BODY, CAP
8R4-24644-00-00
Unavailable
14
PACKING, FILTER
8F3-24564-00-00
$13.49
15
FILTER ASSEMBLY
81E-24560-00-00
Unavailable
16
. BAND 1
650-24351-51-00
Unavailable
17
HOSE (L210)
90445-110F5-00
Unavailable
18
CLIP (8A1)
90467-09026-00
Unavailable
19
CLIP
90467-11028-00
Unavailable
20
PIPE, JOINT 1
8Y4-24376-00-00
Unavailable
21
PROTECTOR, PIPE
8F3-24327-00-00
Unavailable
22
WASHER, PLATE (8L8)
90201-087A9-00
Unavailable
23
GAUGE, FUEL
81E-24179-00-00
Unavailable
24
TUBE, FLEXIBLE VINYL(8AK)
91A20-05080-00
Unavailable
25
HOSE (81E)
(90446-09256-00)
Unavailable
26
HOSE
90446-11326-00
Unavailable
27
HOSE
90446-11326-00
Unavailable
28
TUBE,FLEXIBLE VINYL(85R)
91A30-05080-00
Unavailable
29
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
30
PIPE, JOINT
801-24376-00-00
Unavailable
31
CLAMP(4FM)
90464-15195-00
Unavailable
32
CLAMP(4FM)
90464-15195-00
Unavailable
33
NUT, U
95617-08100-00
Unavailable
34
PROTECTOR, PIPE
8F3-24326-00-00
Unavailable
35
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
