CARBURETOR

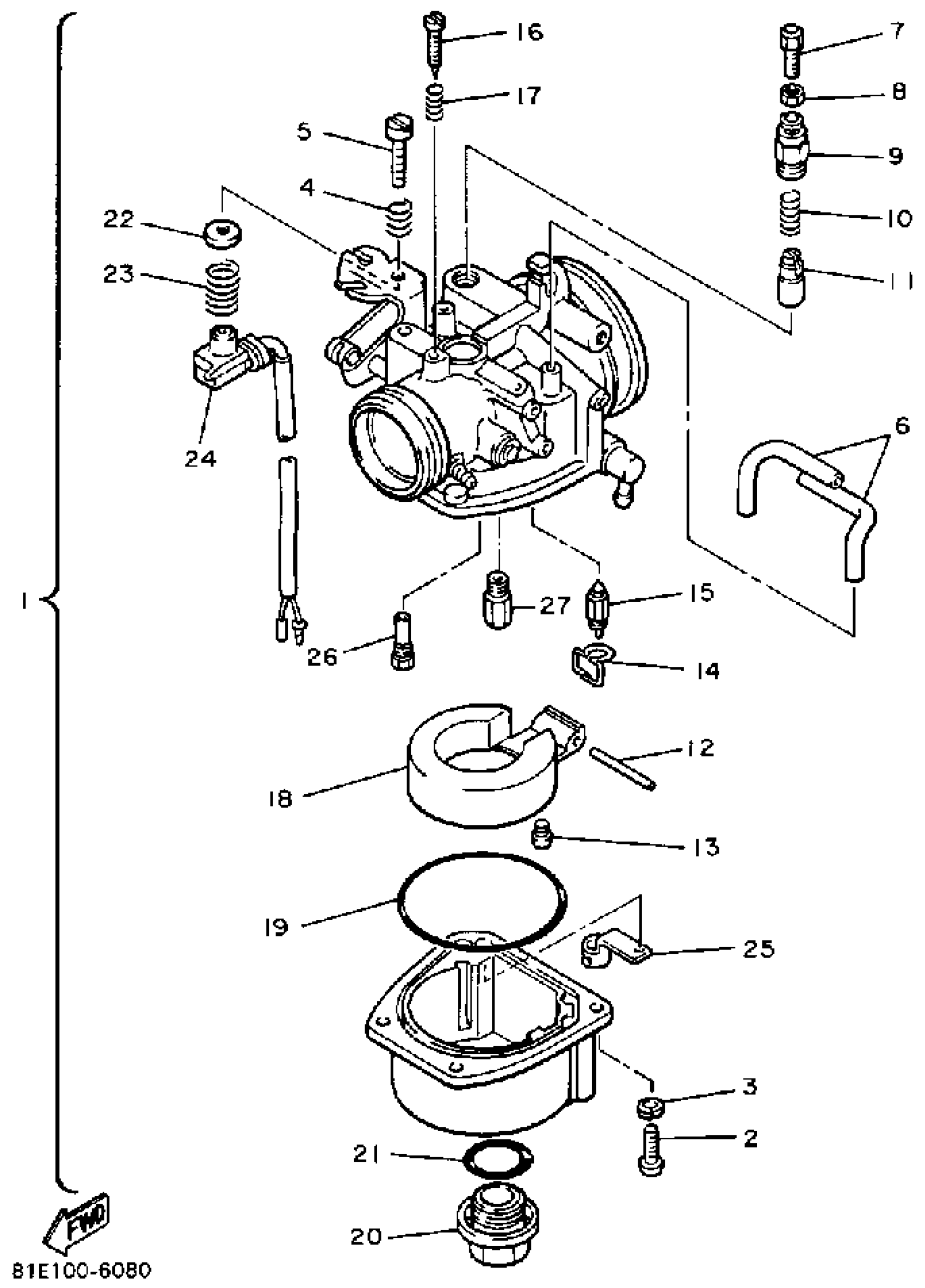

Yamaha CF300N (INVITER) 1989 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
83M-14101-01-00
Unavailable
2
SCREW, PAN HEAD
98580-04540-00
$7.49
3
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
4
. SPRING, COMPRESSION
90501-12229-00
Unavailable
5
SCREW, THROTTLE STOP
80F-14121-00-00
Unavailable
6
. NET, FILTER
8G6-14994-01-00
Unavailable
7
BOLT, STARTER CABLE ADJUSTING
8A6-14977-00-00
$20.99
8
. NUT, CABLE ADJUSTING
8E7-14161-00-00
Unavailable
9
. CAP
83M-14969-00-00
Unavailable
10
SPRING (8E7)
90501-08443-00
$10.49
11
PLUNGER, STARTER
371-14993-60-00
$36.99
12
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
13
SCREW, FLAT
98707-04008-00
Unavailable
14
CLIP
633-14159-00-00
$15.49
15
VALVE,FLOAT
8E7-14546-01-00
$62.99
16
SCREW, ADJUST
8G6-14521-00-00
Unavailable
17
SPRING, COMPRESSION
90501-08214-00
Unavailable
18
FLOAT
8G6-14985-01-00
Unavailable
19
WASHER, FLOAT CHAMBER
8G6-14984-00-00
Unavailable
20
. ROD
8M7-14992-00-00
Unavailable
21
O-RING (8A6)
93210-19309-00
Unavailable
22
PLATE
80F-14146-00-00
Unavailable
23
. SPRING, THROTTLE STOP
80F-14133-00-00
Unavailable
24
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
25
CLIP
80F-14137-01-00
Unavailable
26
. JET
8G6-14948-25-00
Unavailable
27
. JET, MAIN (#100)
8A6-14516-00-00
Unavailable
27
. JET, MAIN (#102)
8A6-14516-02-00
Unavailable
27
JET, MAIN (#105)
8A6-14516-05-00
Unavailable
27
. JET, MAIN #108
8A6-14516-08-00
Unavailable
27
. JET, MAIN #110
8A6-14516-10-00
Unavailable
