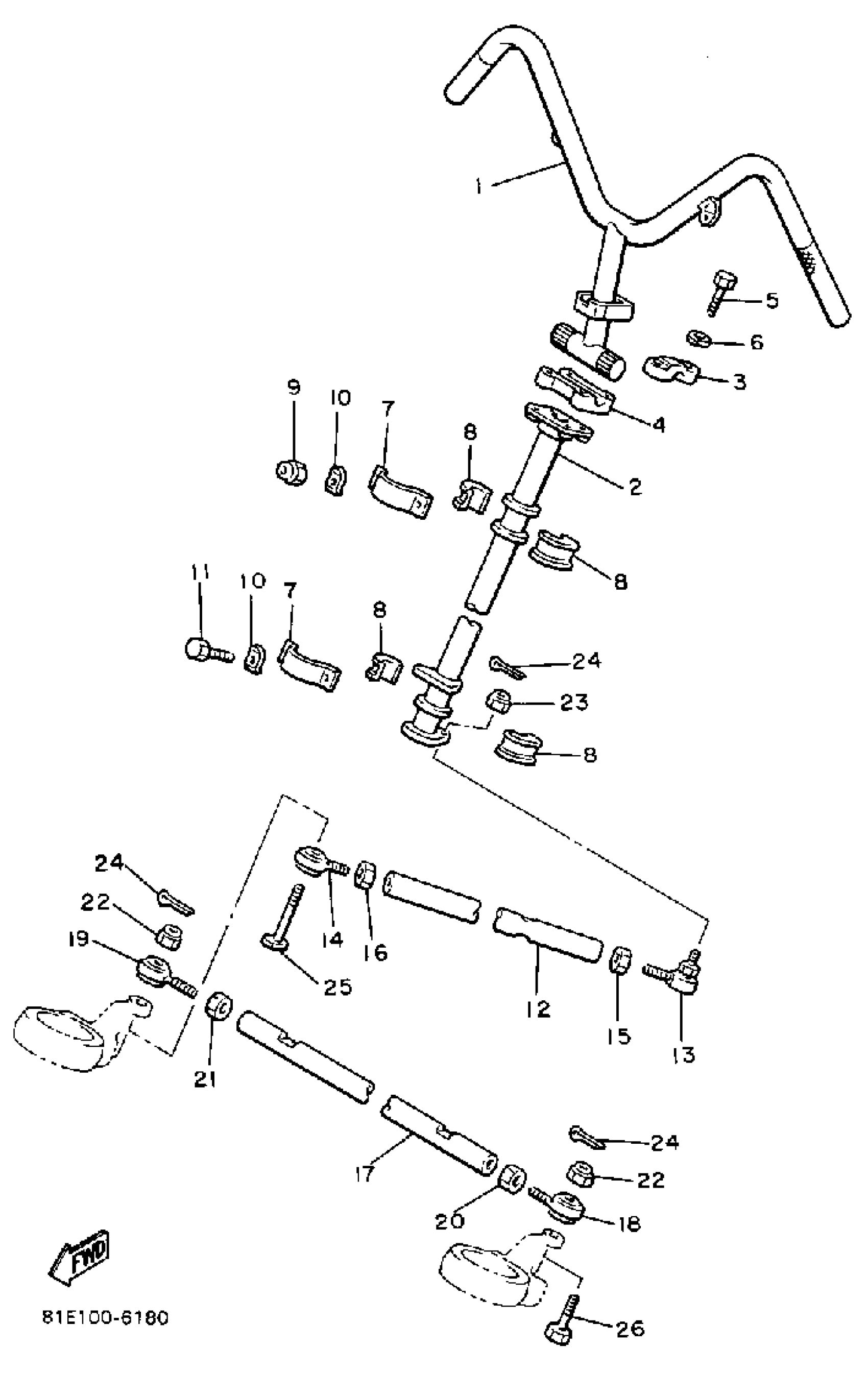

Yamaha CF300M (INVITER) 1988 STEERING Diagram
#
Description
Price
1
COLUMN, STEERING
81E-23811-00-00
Unavailable
2
COLUMN, STEERING 2
81E-23813-00-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
HANDLE, HOLDER
164-23441-01-98
Unavailable
5
BOLT, HEXAGON
97017-08055-00
$9.49
6
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
7
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
8
BEARING, STEERING
8F3-23812-00-00
Unavailable
9
NUT, NYLON
95717-08300-00
$2.70
10
WASHER, LOCK 1
8AC-23894-01-00
$4.78
11
BOLT, HEXAGON
97017-08016-00
$8.49
12
ROD, STEERING RELAY
81E-23821-00-00
Unavailable
13
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
14
JOINT, UNIVERSAL 3
87S-23847-01-00
$50.99
15
NUT (682)
95380-10700-00
Unavailable
16
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
17
ROD, TIE
81E-23831-00-00
Unavailable
18
JOINT, UNIVERSAL 2
87S-23845-01-00
Unavailable
19
JOINT, UNIVERSAL 3
87S-23847-01-00
$50.99
20
NUT (682)
95380-10700-00
Unavailable
21
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
22
NUT, NYLON
95707-10300-00
Unavailable
23
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
24
PIN, COTTER
91490-25020-00
Unavailable
25
BOLT
90109-10767-00
Unavailable
26
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
