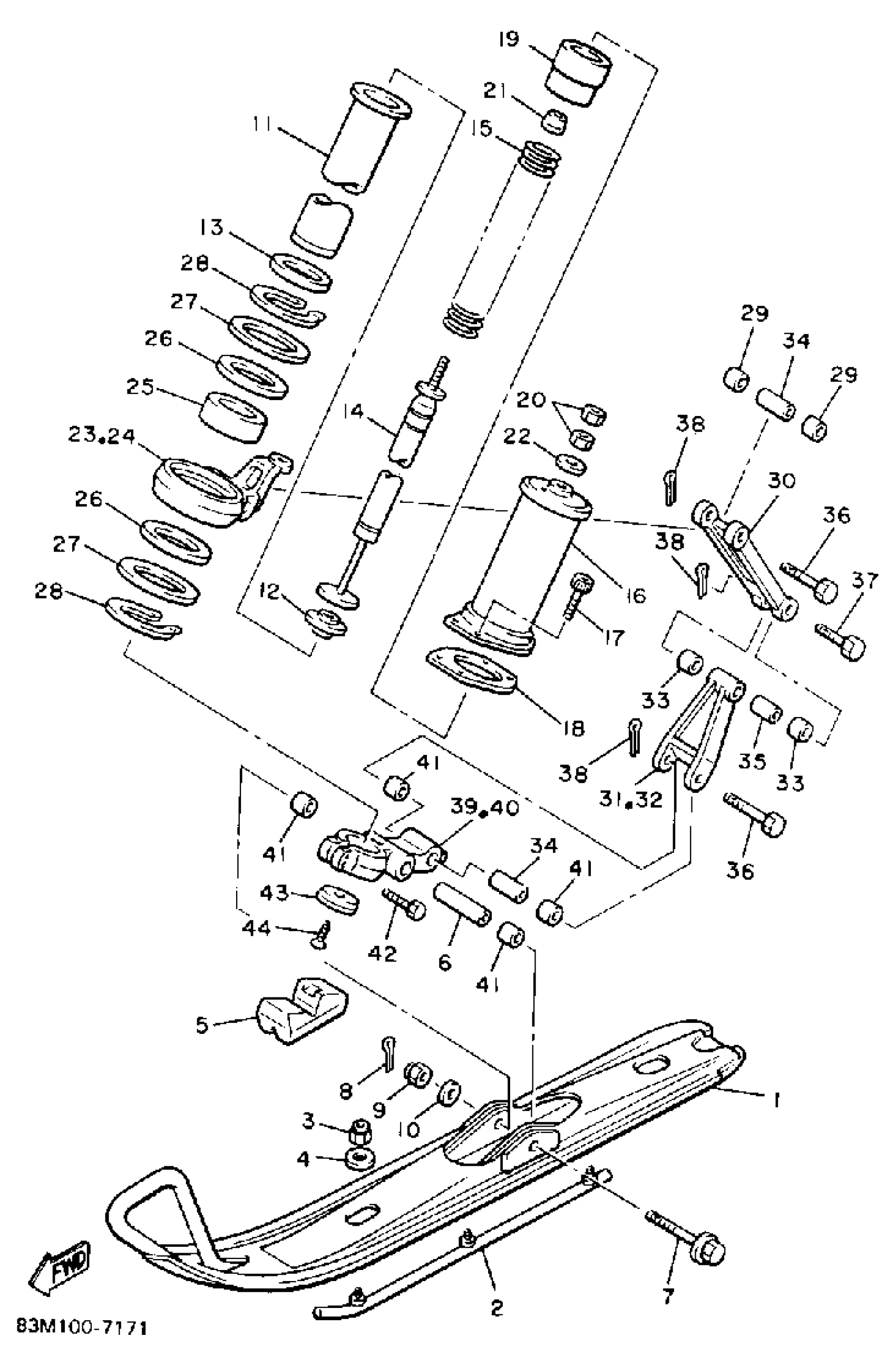

Yamaha CF300M (INVITER) 1988 SKI Diagram
#
1
SKI 1
8V0-23710-02-00
Unavailable
2
SKI RUNNER,1
VMX-23731-01-XX
Unavailable
3
NUT, U
95617-08100-00
$9.49
4
.. WASHER, PLATE
92990-08600-00
Unavailable
5
STOPPER 1
81E-23743-00-00
Unavailable
6
COLLAR (8V0)
90387-106J3-00
$17.99
7
BOLT, WASHER BASED(83M)
90105-10438-00
Unavailable
8
PIN, COTTER
91490-20025-00
$1.99
9
NUT, NYLON
95707-10300-00
$8.49
10
WASHER(6TA)
92907-10600-00
$8.49
11
CYLINDER, SHOCK ABS
81E-22471-00-00
Unavailable
12
WASHER
81E-23779-00-00
Unavailable
13
STOP, REBOUND
81E-22494-00-00
Unavailable
14
ABSORBER ASSY 1
83M-2376A-00-00
Unavailable
15
SPRING, COMPRESSION
90501-554E2-00
Unavailable
16
HOLDER, ABSORBER
81E-2376J-00-00
Unavailable
17
BOLT, HEXAGON
97017-06025-00
Unavailable
18
WASHER 2
81E-23738-00-00
Unavailable
19
BUMP, STOP
81E-22493-00-00
Unavailable
20
. NUT
95380-08700-00
Unavailable
21
CUSHION
8V0-2386J-00-00
Unavailable
22
WASHER, PLAIN
92990-08200-00
Unavailable
23
ARM, OUTSIDE 1
81E-23851-00-00
Unavailable
24
ARM, OUTSIDE 2
81E-23852-00-00
Unavailable
25
BUSH, BIMETAL FORMED
90384-63188-00
Unavailable
26
OIL SEAL
93109-63044-00
Unavailable
27
WASHER, PLATE
90201-635H7-00
Unavailable
27
WASHER, PLATE
90201-637F3-00
Unavailable
28
CIRCLIP
93410-63066-00
Unavailable
29
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
30
ARM, FRONT 1
8V0-2382E-01-00
Unavailable
31
ARM, FRONT 2 (L, H)
8V0-2382F-02-00
Unavailable
32
ARM, FRONT4 (R, H)
8V0-2383F-02-00
Unavailable
33
BUSH, BIMETAL FORMED (8L0)
90384-14096-00
Unavailable
34
COLLAR(89A)
90387-101Y9-00
Unavailable
35
COLLAR (8L0)
90387-100A4-00
Unavailable
36
BOLT, WITH HOLE
90102-10054-00
Unavailable
37
BOLT, WITH HOLE
90102-10055-00
Unavailable
38
PIN, COTTER
91490-20025-00
$1.99
39
BRACKET 1 (L, H)
81E-2376E-00-00
Unavailable
40
BRACKET 2 (R, H)
81E-2377E-00-00
Unavailable
41
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
42
BOLT, HEXAGON
97017-08030-00
Unavailable
43
WASHER 1
81E-23737-00-00
Unavailable
44
SCREW, FLAT HEAD(4EM)
98707-06016-00
Unavailable
