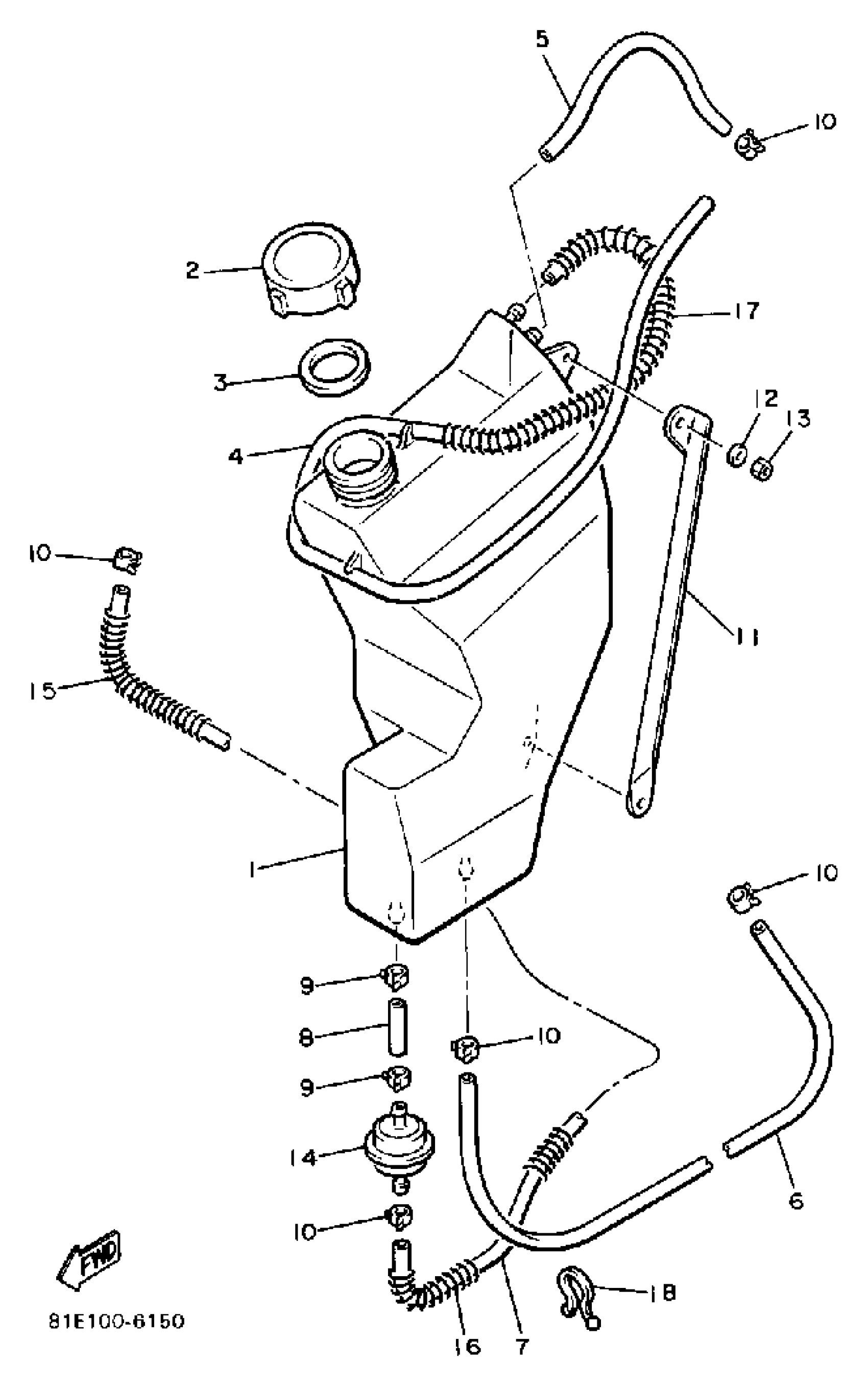

Yamaha CF300M (INVITER) 1988 OIL TANK Diagram
#
Description
Price
1
TANK, OIL
81E-21751-00-00
Unavailable
6
TUBE, FLEXIBLE VINYL(8AT)
91A30-05125-00
Unavailable
7
TUBE, FLEXIBLE VINYL(8AT)
91A30-05125-00
Unavailable
8
HOSE
91A30-07036-00
Unavailable
9
CLIP
90467-11028-00
Unavailable
11
PLATE
81E-2176E-00-00
Unavailable
12
WASHER, PLATE
90201-06M02-00
Unavailable
15
SPRG., COMPRESSION (8BY1)
90501-083J9-00
Unavailable
16
PROTECTOR, PIPE
81E-24328-00-00
Unavailable
17
PROTECTOR, PIPE
8F3-24326-00-00
Unavailable
18
CLAMP (3Y2)
90464-16039-00
Unavailable
