Description

Price

1

MANIFOLD, INTAKE

81E-13555-00-00

Unavailable

2

BOLT, HEXAGON

97017-08025-00

$10.49

3

.. WASHER, PLATE

92990-08600-00

Unavailable

4

BAND

86M-13575-00-00

$19.49

5

BOOT

8J5-26352-00-00

Unavailable

6

JOINT, AIR CLEANER

8G8-14453-01-00

$31.99

7

CLAMP, HOSE (29L)

90460-68230-00

$16.99

8

CLAMP, HOSE(59V)

90460-85277-00

$16.99

9

SILENCER, INTAKE 1

81E-14431-01-00

Unavailable

10

SILENCER, INTAKE 2

81E-14441-00-00

Unavailable

11

PIPE

(81E-14419-00-00)

Unavailable

12

PLATE

81E-14477-00-00

Unavailable

13

PIPE

81E-14465-00-00

Unavailable

14

JOINT

81E-14454-00-00

Unavailable

15

CLAMP, HOSE

90460-77016-00

Unavailable

16

YBS83-525 SCREW,PANH.TAPPING

97780-50125-00

Unavailable

17

CLAMP (1L9)

(90465-10092-00)

Unavailable

18

BOLT, WITH WASHER(8V7)

90119-06108-00

Unavailable

19

CLAMP

90462-10236-00

Unavailable

20

FUEL PUMP ASY

8J6-24410-01-00

Unavailable

21

NUT, NYLON

95707-06300-00

Unavailable

22

HOSE (L450)

90445-10144-00

Unavailable

23

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

Unavailable

24

SPRING, COMPRESSION(7MX)

90501-084J0-00

Unavailable

25

CLIP

90467-090A2-00

Unavailable

26

CLIP (8A1)

90467-09026-00

Unavailable

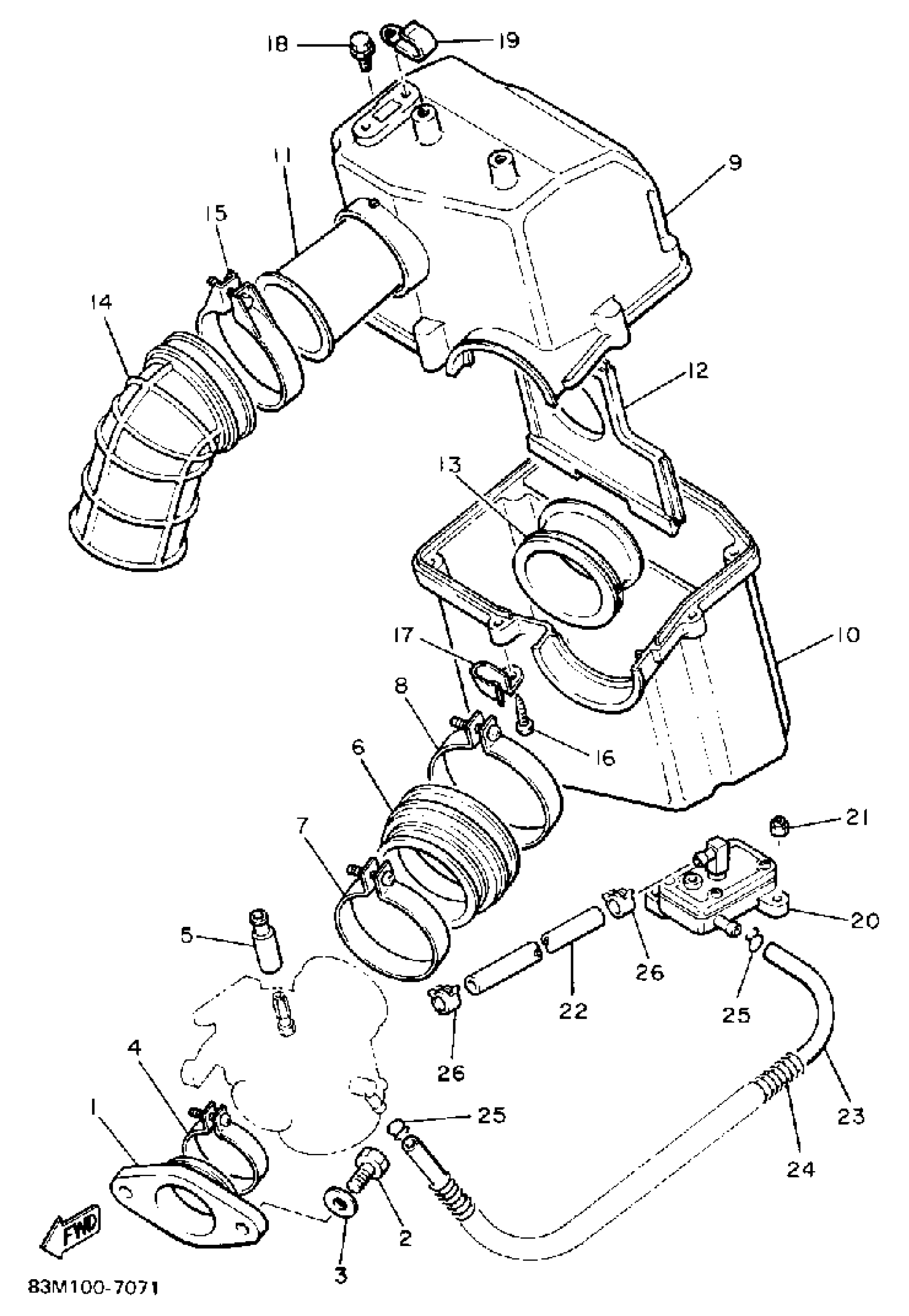

Yamaha CF300M (INVITER) 1988 AIR CLEANER Diagram

MANIFOLD, INTAKE

BOLT, HEXAGON

.. WASHER, PLATE

BAND

BOOT

JOINT, AIR CLEANER

CLAMP, HOSE (29L)

CLAMP, HOSE(59V)

SILENCER, INTAKE 1

SILENCER, INTAKE 2

PIPE

PLATE

PIPE

JOINT

CLAMP, HOSE

YBS83-525 SCREW,PANH.TAPPING

CLAMP (1L9)

BOLT, WITH WASHER(8V7)

CLAMP

FUEL PUMP ASY

NUT, NYLON

HOSE (L450)

TUBE, FLEXIBLE VINYL(8AU)

SPRING, COMPRESSION(7MX)

CLIP

CLIP (8A1)
