- CF300L (INVITER) 1987
TRACK SUSPENSION 2

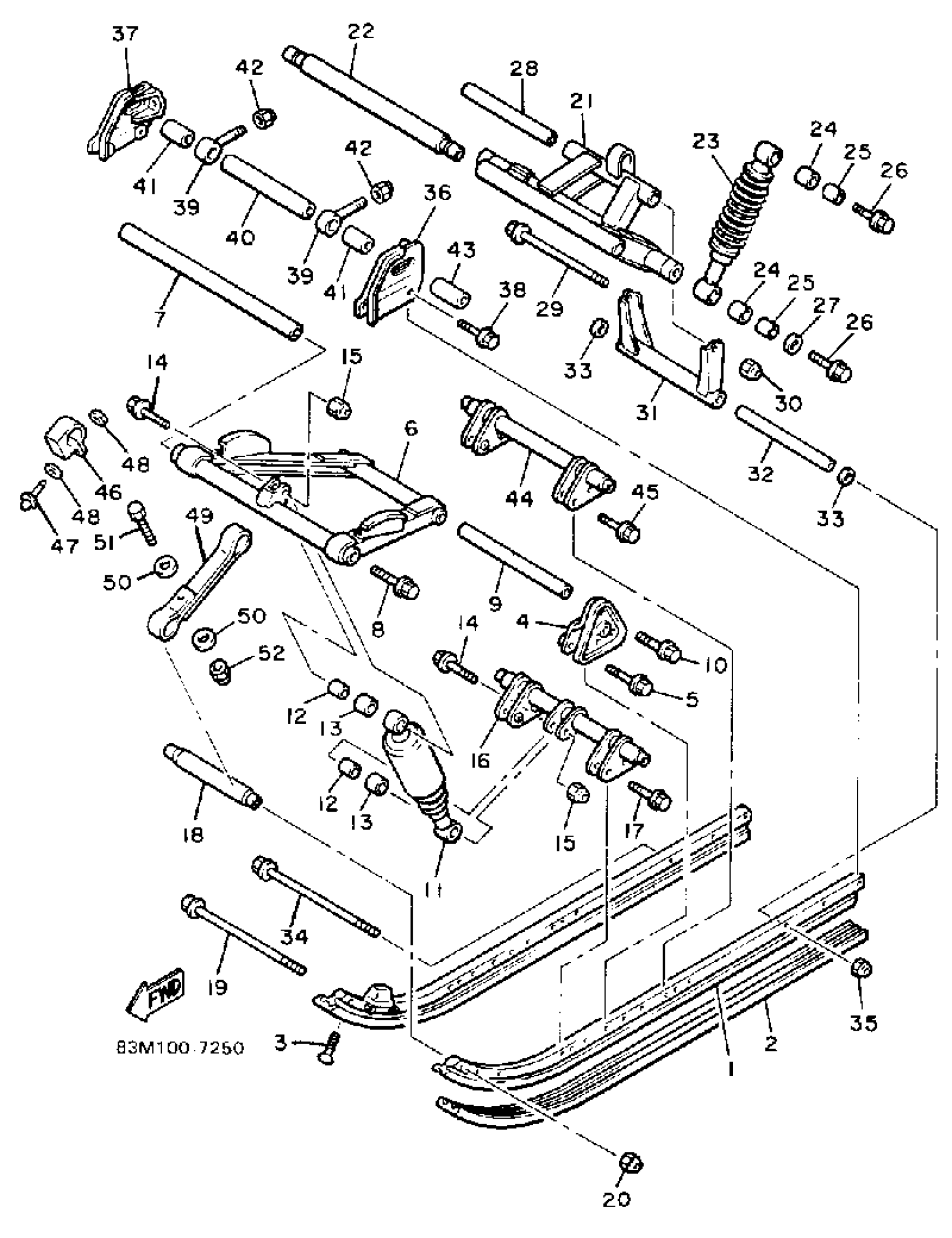

Yamaha CF300L (INVITER) 1987 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING 1
83M-47411-00-00
Unavailable
2
RUNNER, SLIDING 1 (81E-47421-00)
81E-47421-00-XX
Unavailable
3
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
4
BRACKET 2
81E-47416-00-00
Unavailable
5
BOLT, FLANGE
95817-06035-00
$7.49
6
ARM, PIVOT 1
83M-47331-00-00
Unavailable
7
SHAFT, 1
81E-47465-01-00
Unavailable
8
BOLT (8V0)
90109-10771-00
$5.60
9
SHAFT 3
8A5-47485-02-00
Unavailable
10
BOLT, FLANGE
95817-10030-00
$8.49
11
SHOCK ABSORBER 2
83M-47481-00-00
Unavailable
12
COLLAR (8U7)
90387-105G5-00
$10.49
13
BUSH, SPECL NYLON
90386-14145-00
Unavailable
14
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
15
NUT, U
95617-10100-00
$8.49
16
BAR SUSPENSION
83M-47451-01-00
Unavailable
17
BOLT, FLANGE
95817-06035-00
$7.49
18
BRACKET 1
83M-47415-00-00
Unavailable
19
BOLT,FLANGE
95827-08260-00
Unavailable
20
NUT, SELF-LOCKING
90185-08169-00
Unavailable
21
ARM, PIVOT 2
81E-47332-00-00
Unavailable
22
SHAFT 2
8K2-47475-00-00
Unavailable
23
SHOCK ABSORBER
83M-47480-00-00
Unavailable
24
BUSH, SPECL NYLON
90386-14145-00
Unavailable
25
COLLAR (8U7)
90387-105G5-00
$10.49
26
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
27
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
28
COLLAR
90387-082N5-00
Unavailable
29
BOLT
97022-08210-00
Unavailable
30
NUT, NYLON
95717-08300-00
Unavailable
31
BRACKET 3
81E-47417-00-00
Unavailable
32
COLLAR (899 SUSPENSION)
90387-08496-00
Unavailable
33
WASHER (1T1)
90201-08649-00
Unavailable
34
BOLT,FLANGE
95827-08260-00
Unavailable
35
NUT, SELF-LOCKING
90185-08169-00
Unavailable
36
FRAME, SLIDING 2
8L8-47412-00-00
Unavailable
37
FRAME, SLIDING 3
8L8-47413-00-00
Unavailable
38
BOLT, WASHER BASED
90105-08404-00
Unavailable
39
COLLAR 3
8K2-47479-01-00
Unavailable
40
COLLAR
90387-202K7-00
Unavailable
41
COLLAR
90387-202K4-00
Unavailable
42
NUT, NYLON
95707-10300-00
Unavailable
43
COLLAR
90387-21757-00
Unavailable
44
BAR, SUSPENSION
8T9-47451-00-00
Unavailable
45
BOLT, FLANGE
95817-06035-00
$7.49
46
DAMPER 1
82M-47456-00-00
Unavailable
47
RIVET, BLIND (8K4)
90267-48062-00
Unavailable
48
WASHER, PLATE(39X)
90201-057H5-00
Unavailable
49
STOPPER 1
83M-47495-00-00
Unavailable
50
WASHER, PLATE(1JK)
90201-064K6-00
Unavailable
51
BOLT, HEXAGON
97017-06025-00
Unavailable
52
NUT, NYLON
95707-06300-00
Unavailable
