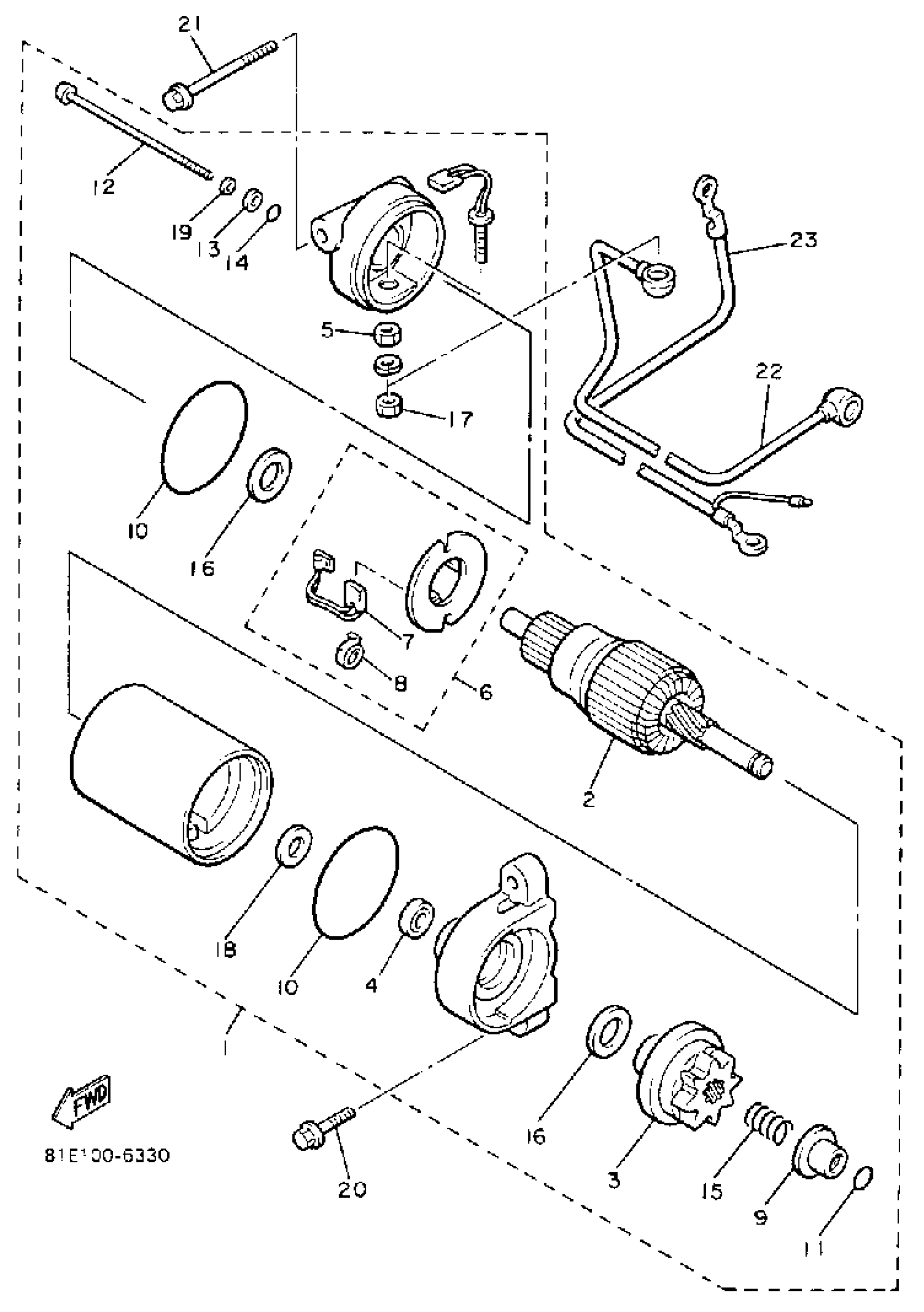

Yamaha CF300L (INVITER) 1987 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR ASSEMBLY

81E-81800-50-00

Unavailable

2

. ARMATURE ASSEMBLY

81E-81850-50-00

Unavailable

3

. CLUTCH, OVER RUN

81E-81832-50-00

Unavailable

4

. OIL SEAL

8Y3-81167-00-00

Unavailable

5

NUT

4H7-81872-00-00

Unavailable

6

BRUSH HOLDER ASSY

4H7-81840-01-00

$82.99

7

.. BRUSH HOLDER ASSEMBLY

7GA-81812-50-00

Unavailable

8

SPRING, BRUSH

8L6-81813-50-00

Unavailable

9

. RING, STOP

81E-81833-50-00

Unavailable

10

O-RING

4H7-81844-00-00

Unavailable

11

RING

8L6-81834-50-00

$2.60

12

BOLT

84N-81826-00-00

$15.49

13

. WASHER 2

8L6-81824-50-00

Unavailable

14

O-RING

8L6-81847-50-00

$3.28

15

SPRING, LEVER

7GA-81836-50-00

Unavailable

16

WASHER 1

4H7-81843-50-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

WASHER

8L6-81835-50-00

Unavailable

19

. WASHER

73A-81835-00-00

Unavailable

20

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable

21

BOLT, FLANGE(JF2)

95817-08080-00

Unavailable

22

WIRE,LEAD

8CL-82117-00-00

Unavailable

23

WIRE, MINUS LEAD (81E-82116-00)

83M-82116-00-00

Unavailable
