1987 Yamaha Inviter (CF300L) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1987 Yamaha Inviter (CF300L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

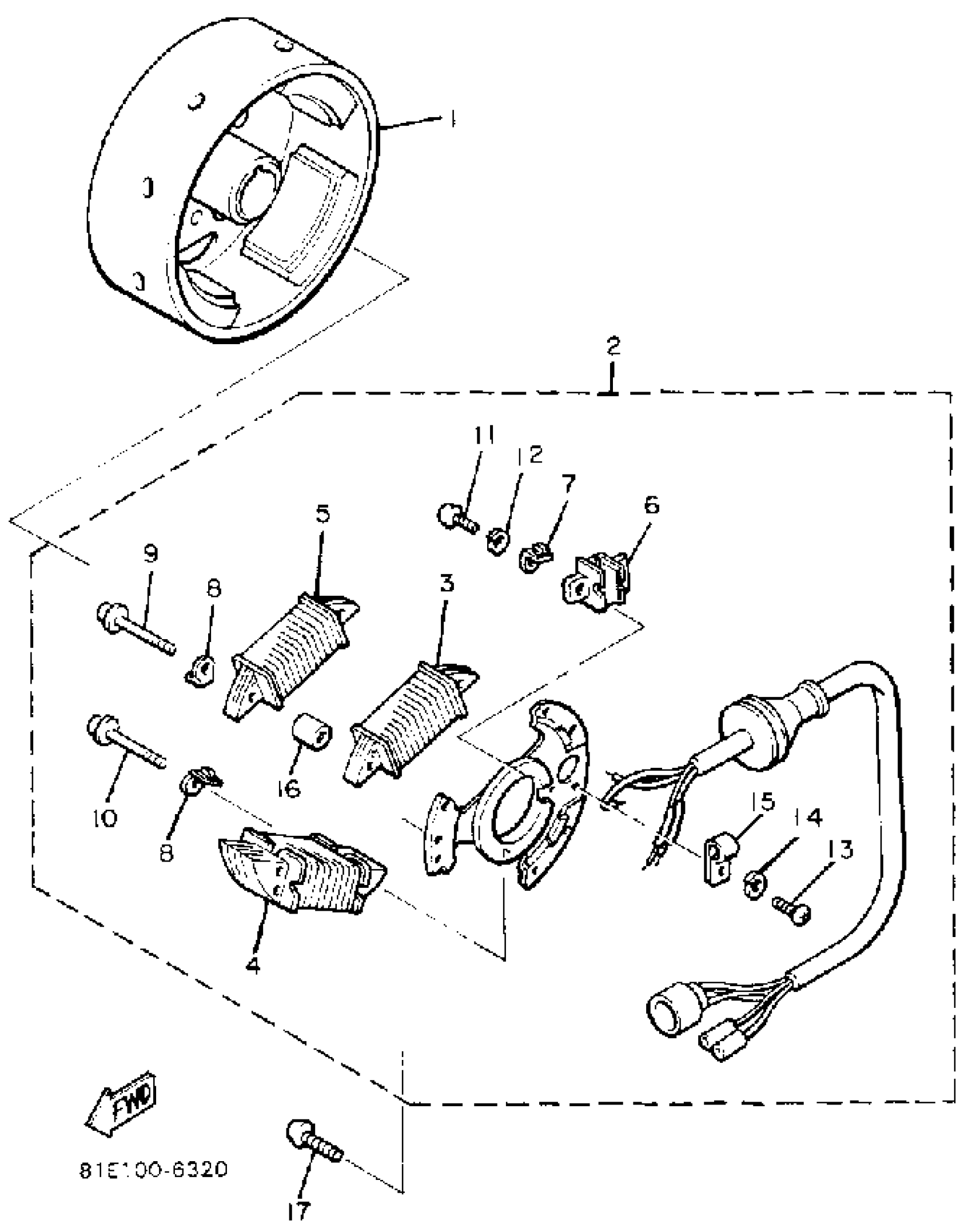

1987 Yamaha Inviter (CF300L) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSEMBLY

81E-85550-M0-00

1
Out of stock

2

BASE ASSEMBLY

81E-85560-M0-00

1
Out of stock

3

COIL, CHARGE

81L-85520-M0-00

—

$94.88

In stock

4

COIL, LIGHTING 1

81L-81313-M0-00

1

$61.95

In stock

5

COIL, LIGHTING 2

81L-81314-M0-00

—

$95.42

In stock

6

PULSER ASSY

8R4-85580-M0-00

—

$148.80

In stock

7

. TERMINAL, EARTH 1

8R4-85568-M0-00

1
Out of stock

8

. TERMINAL, EARTH 2

8R4-85569-M0-00

1
Out of stock

9

SCREW, WITH WASHER(81E)

90159-05130-00

1

$1.49

In stock

10

SCREW, WITH WASHER

90159-05145-00

1
Out of stock

11

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

13

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

15

CLAMP, 1

(81E-81528-M0-00)

1
Out of stock

16

COLLAR (1M1)

90387-06553-00

—
Out of stock

17

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock
