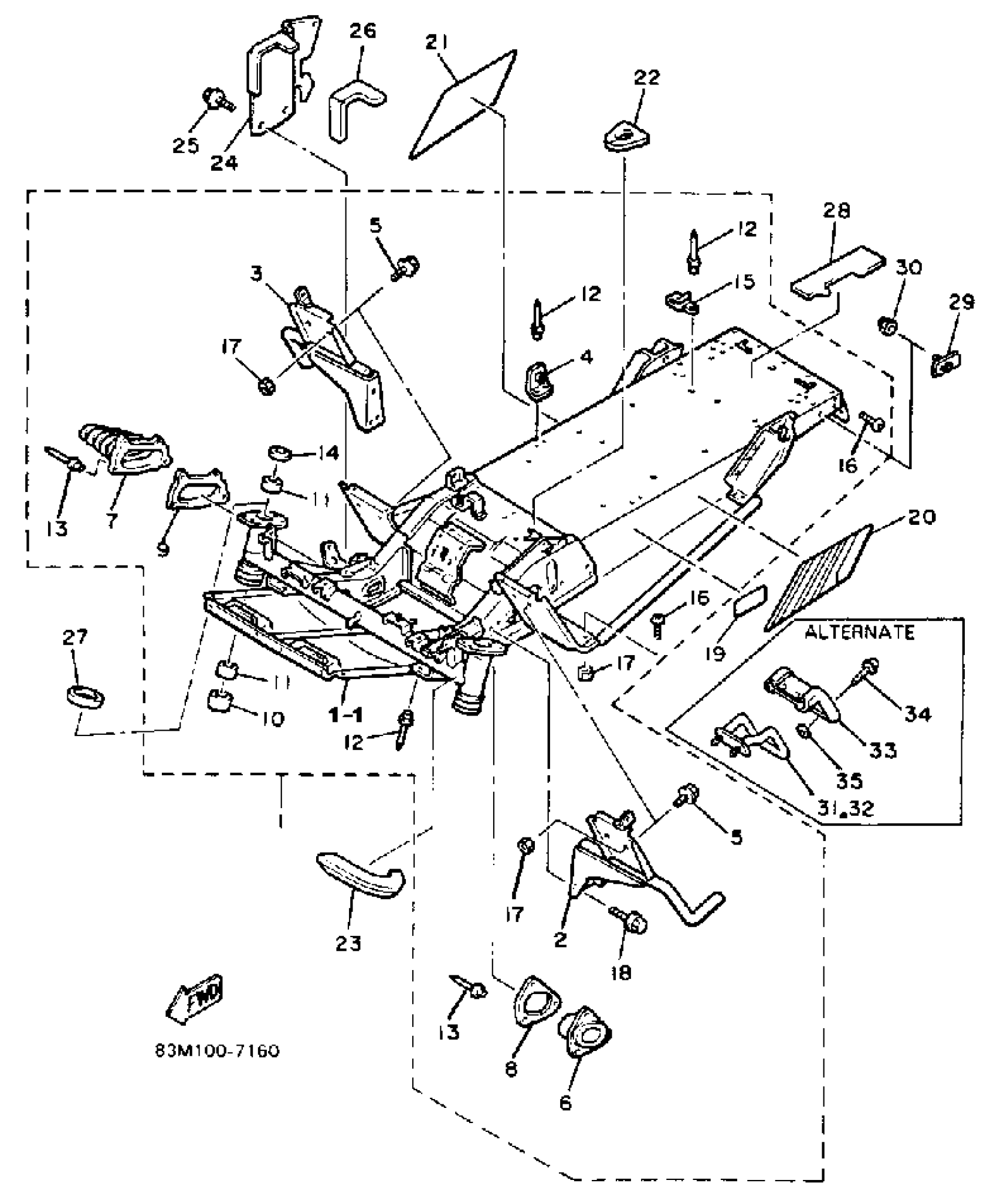

Yamaha CF300L (INVITER) 1987 FRAME Diagram
#
1
. BELLY PAN
81E-21912-09-00
Unavailable
1
FRAME
83M-21910-00-00
Unavailable
2
. RNFCMNT, FRAME SIDE
81E-21929-00-00
Unavailable
3
. REINFORCMNT, FRAME
81E-2192E-00-00
Unavailable
4
. BRACKET, SEAT FITTING
8V0-21946-00-00
Unavailable
5
BOLT, FLANGE
95817-06016-00
$2.75
6
. COVER 1
80L-2198F-00-00
Unavailable
7
. COVER, STEERING
81E-23818-00-00
Unavailable
8
. WASHER 1
80L-77525-00-00
Unavailable
9
. WASHER 2
81E-77526-00-00
Unavailable
10
. OIL SEAL
93103-44134-00
Unavailable
11
. BUSH, BIMETAL FORMED
90384-44173-00
Unavailable
12
RIVET, BLIND (8H4)
90267-48053-00
$3.61
13
RIVET, BLIND(8R6)
90267-40105-00
Unavailable
14
. OIL SEAL
93104-44095-00
Unavailable
15
CLAMP(4MX)
90465-06376-00
Unavailable
16
SCREW, BIND(J39)
98980-06014-00
Unavailable
17
NUT, NYLON
95707-06300-00
Unavailable
18
BOLT, FLANGE
95812-06010-00
Unavailable
19
INDICATOR 2
8K2-77742-00-00
Unavailable
20
EMBLEM 3
81E-77353-00-00
Unavailable
21
EMBLEM 4
81E-77354-00-00
Unavailable
22
PATCH 8
81E-21988-00-00
Unavailable
23
TAPE 4
83U-7717H-00-00
Unavailable
24
SHIELD, HEAT
81E-2199H-00-00
Unavailable
25
BOLT, FLANGE
95812-06010-00
Unavailable
26
SHIELD, NOISE 2
81E-2199J-01-00
Unavailable
27
DAMPER, NOISE 11
81E-77271-00-00
Unavailable
28
TAPE 1
81E-7717E-00-00
Unavailable
29
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
30
NUT, NYLON
95707-05300-00
Unavailable
31
. BRACKET 5
83U-2196M-00-00
Unavailable
32
. BRACKET 6
83U-2197M-00-00
Unavailable
33
COVER, TOE HOOK
81E-2196N-00-00
Unavailable
34
RIVET, BLIND(41R)
90267-48104-00
Unavailable
35
WASHER, PLATE
90201-04027-00
Unavailable
