Description

Price

1

TRACK ASSY

8H9-47110-01-00

Unavailable

2

METAL, SLIDE

8A5-47115-00-00

Unavailable

3

BOLT (8V0)

90109-10771-00

$5.60

4

SUSPENSION WHEEL COMP.

8H8-47320-00-00

$64.99

5

BEARING(8AB)

93306-00444-00

$41.99

6

CIRCLIP(5U8)

99009-42500-00

$8.49

7

CIRCLIP(1AR)

99009-20400-00

$8.49

8

REAR AXLE COMP.

8L8-47520-02-00

$89.99

9

GUIDE WHEEL COMP.

8K2-47530-00-00

$127.99

10

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

11

CIRCLIP(5U8)

99009-42500-00

$8.49

12

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

13

PIN, COTTER

91490-30030-00

$8.49

14

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

15

BEARING(8AB)

93306-00444-00

$41.99

16

CIRCLIP(5U8)

99009-42500-00

$8.49

17

BOLT (8K2)

90109-08559-00

Unavailable

18

WASHER (8G1)

90201-08681-00

Unavailable

19

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

20

BEARING(8AB)

93306-00444-00

$41.99

21

CIRCLIP(5U8)

99009-42500-00

$8.49

22

BOLT (8K2)

90109-08559-00

Unavailable

23

WASHER (8G1)

90201-08681-00

Unavailable

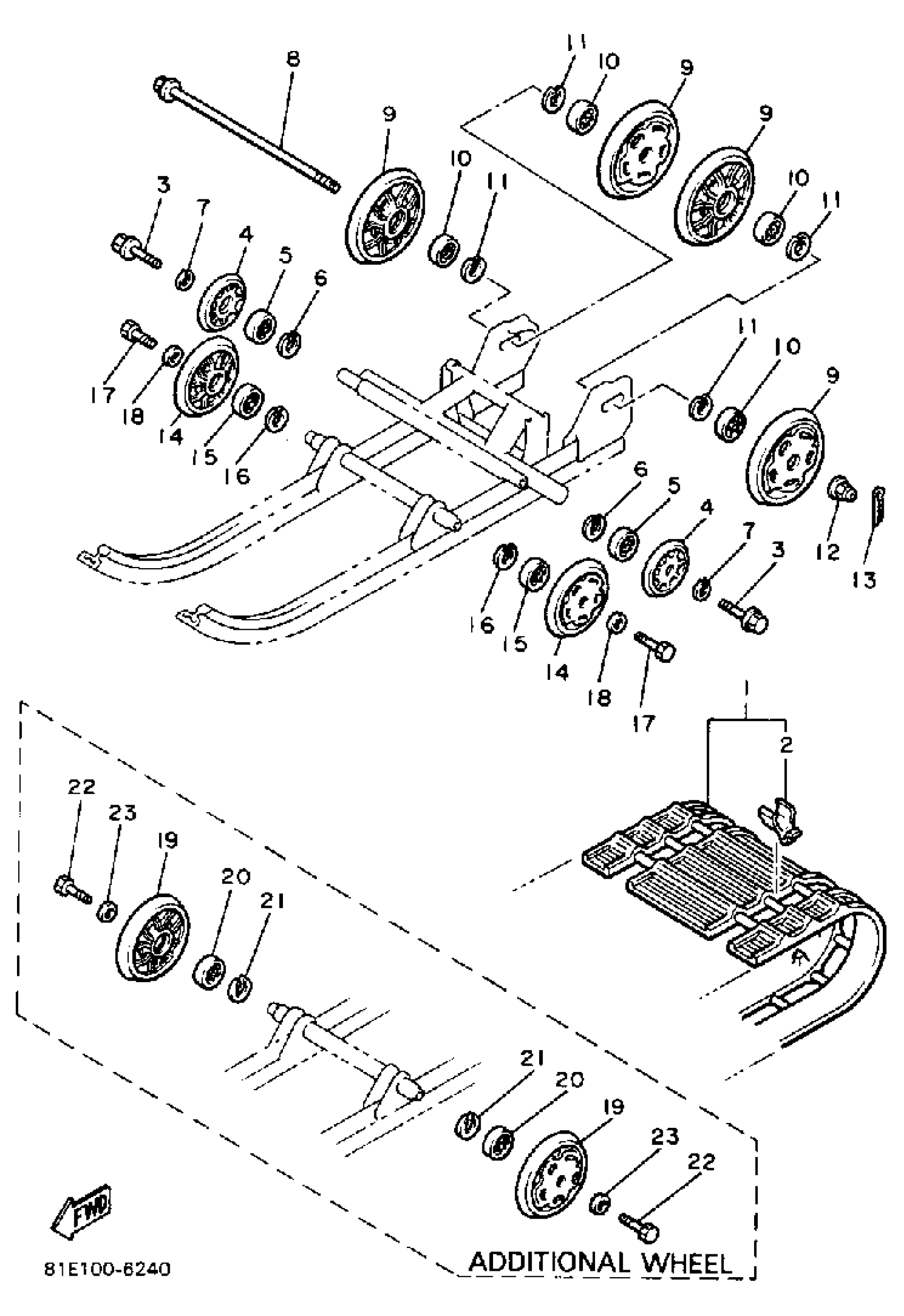

Yamaha CF300K (INVITER) 1986 TRACK SUSPENSION 1 Diagram

TRACK ASSY

METAL, SLIDE

BOLT (8V0)

SUSPENSION WHEEL COMP.

BEARING(8AB)

CIRCLIP(5U8)

CIRCLIP(1AR)

REAR AXLE COMP.

GUIDE WHEEL COMP.

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(5U8)

NUT, SELF-LOCKING (8BF)

PIN, COTTER

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

BOLT (8K2)

WASHER (8G1)

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

BOLT (8K2)

WASHER (8G1)
