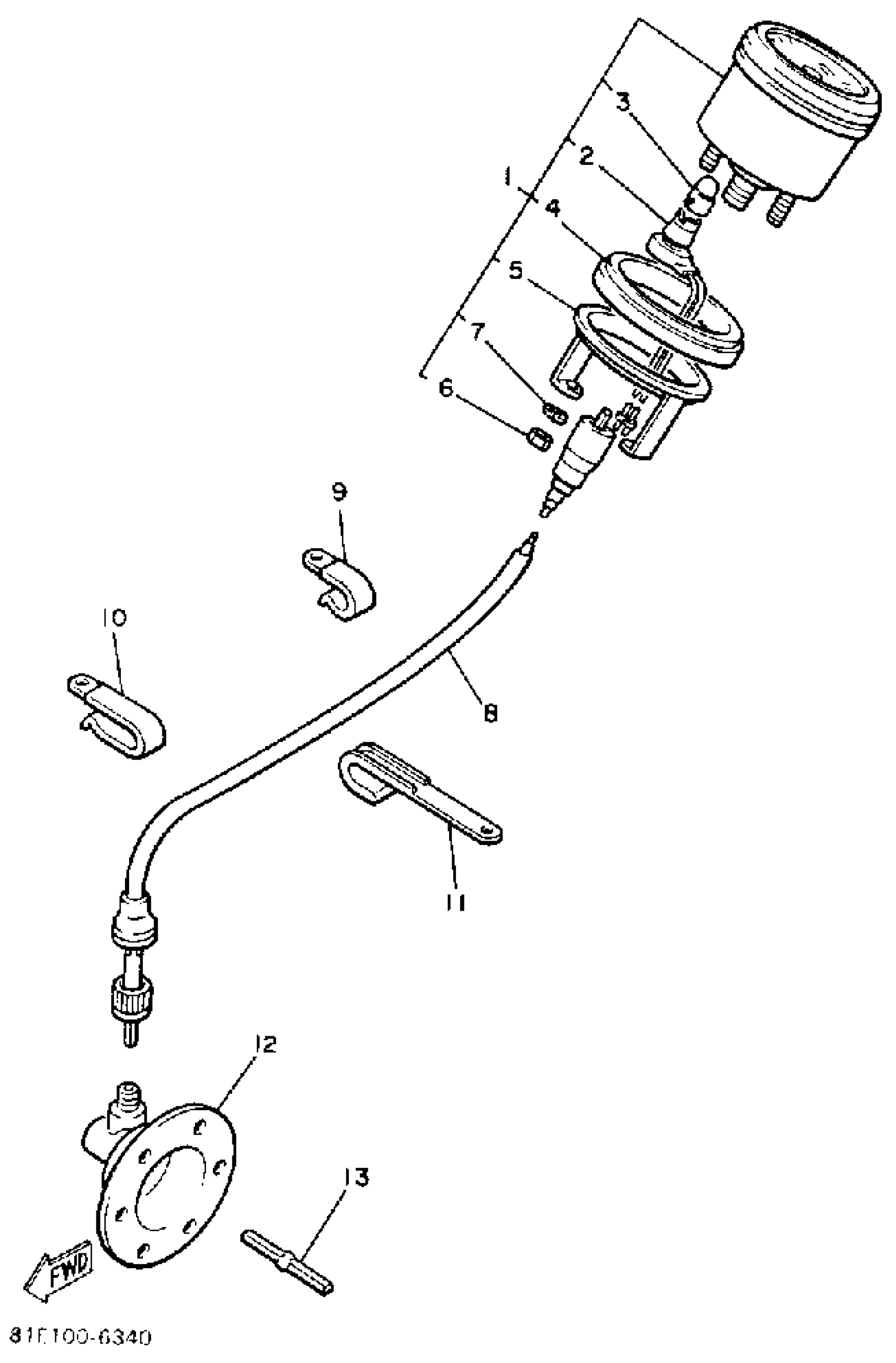

Yamaha CF300K (INVITER) 1986 METER Diagram

SPEEDOMETER ASSEMBLY

(80X-83510-20-00)

Unavailable

SPEEDOMETER ASSY

87C-83510-20-00

Unavailable

SOCKET CORD ASSY

5E2-83509-20-00

$28.99

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

. DAMPER

861-83523-40-00

Unavailable

PLATE, FITTING

863-83514-40-00

Unavailable

NUT, HEXAGON (663)

95380-05600-00

$8.49

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

SPEEDOMETER CABLE

8F3-83550-01-00

Unavailable

CLAMP

90465-08028-00

Unavailable

CLAMP

90465-08135-00

Unavailable

CLAMP

90462-06164-00

Unavailable

METER GEAR HOUSINGHOUSING COMP

8W6-47700-00-00

Unavailable

JOINT

8K4-47715-00-00

$5.60
