Description

Price

1

ROTOR ASSEMBLY

81E-85550-M0-00

Unavailable

2

BASE ASSEMBLY

81E-85560-M0-00

Unavailable

3

COIL, CHARGE

81L-85520-M0-00

Unavailable

4

COIL, LIGHTING 1

81L-81313-M0-00

$66.99

5

COIL, LIGHTING 2

81L-81314-M0-00

Unavailable

6

PULSER ASSY

8R4-85580-M0-00

Unavailable

7

. TERMINAL, EARTH 1

8R4-85568-M0-00

Unavailable

8

. TERMINAL, EARTH 2

8R4-85569-M0-00

Unavailable

9

SCREW, WITH WASHER(81E)

90159-05130-00

$1.11

10

SCREW, WITH WASHER(81E)

90159-05129-00

$2.34

11

SCREW, PAN HEAD

98511-04012-00

Unavailable

12

WASHER, PLAIN (646)

92990-04600-00

$5.99

13

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

14

WASHER, PLAIN (646)

92990-04600-00

$5.99

15

CLAMP, 1

(81E-81528-M0-00)

Unavailable

16

COLLAR (1M1)

90387-06553-00

Unavailable

17

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

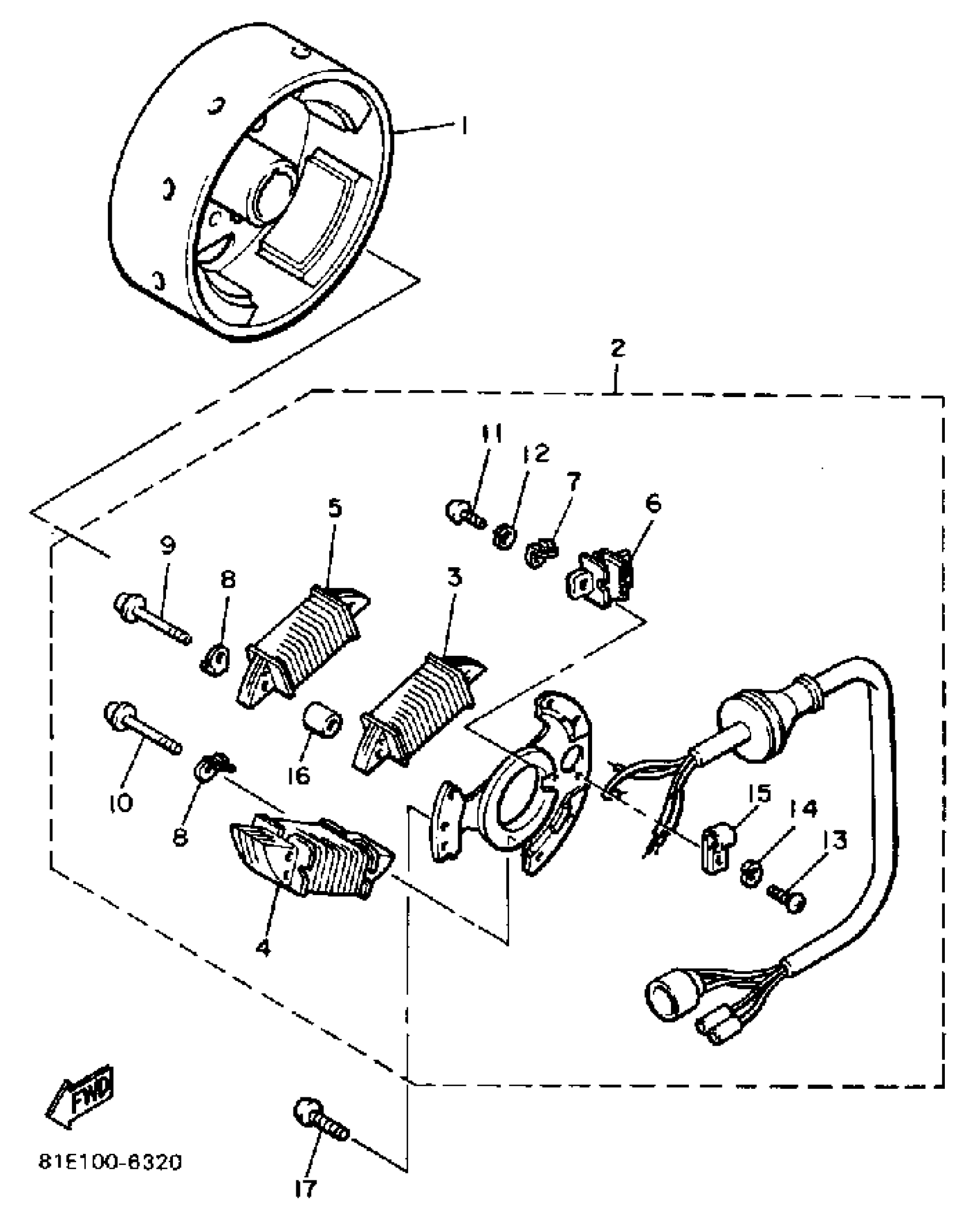

Yamaha CF300K (INVITER) 1986 GENERATOR Diagram

ROTOR ASSEMBLY

BASE ASSEMBLY

COIL, CHARGE

COIL, LIGHTING 1

COIL, LIGHTING 2

PULSER ASSY

. TERMINAL, EARTH 1

. TERMINAL, EARTH 2

SCREW, WITH WASHER(81E)

SCREW, WITH WASHER(81E)

SCREW, PAN HEAD

WASHER, PLAIN (646)

SCREW, PAN HEAD (713)

WASHER, PLAIN (646)

CLAMP, 1

COLLAR (1M1)

SCREW, PAN HEAD(62J)
