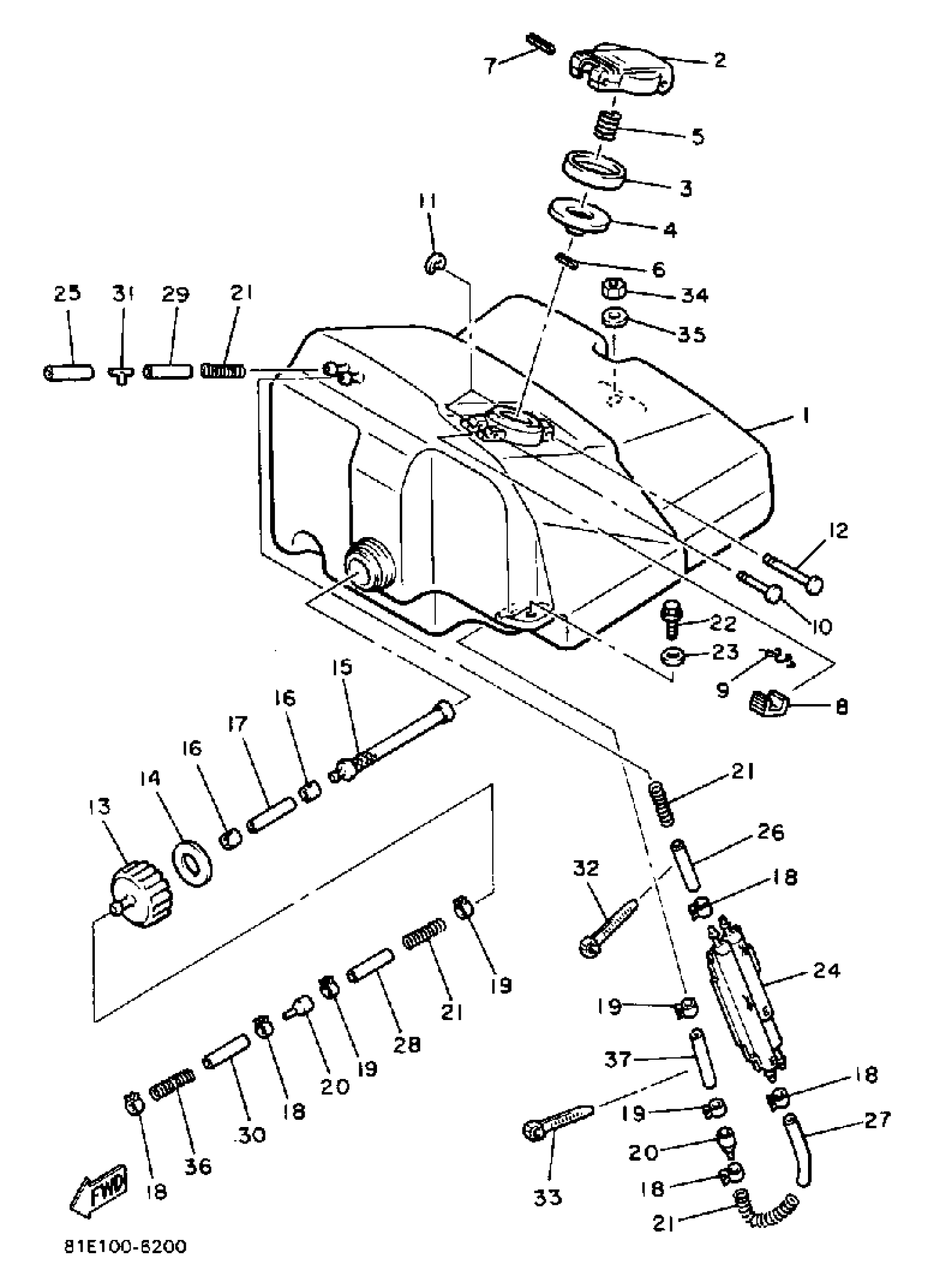

Find the part on the Fuel Tank diagram for your 1986 Yamaha Inviter (CF300K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Inviter (CF300K) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

81E-24111-00-00

1
Out of stock

2

BODY, CAP

8W6-24611-00-00

—
Out of stock

3

DISK,CAP

813-24613-01-00

1
Out of stock

4

GASKET, CAP 1

89A-24641-00-00

1
Out of stock

5

SPRING, CAP

90501-20130-00

1
Out of stock

6

PIN, SPRING

91690-30016-00

1
Out of stock

7

PIN, SPRING (8W6)

91609-25050-00

1
Out of stock

8

HOOK

83M-24628-00-00

1
Out of stock

9

SPRING, TORSION(81E)

90508-10715-00

—
Out of stock

10

PIN (813)

90249-03017-00

1
Out of stock

11

CIRCLIP (604)

93430-02001-00

1
Out of stock

12

PIN (8W6)

90249-03175-00

—
Out of stock

13

BODY, CAP

8R4-24644-00-00

—
Out of stock

14

PACKING, FILTER

8F3-24564-00-00

1
Out of stock

15

FILTER ASSEMBLY

81E-24560-00-00

1
Out of stock

16

. BAND 1

650-24351-51-00

1
Out of stock

17

HOSE (L210)

90445-110F5-00

—
Out of stock

18

CLIP (8A1)

90467-09026-00

—
Out of stock

19

UNAVAILABLE IN PRICE BOOK

90467-10028-00

1
Out of stock

20

PIPE, JOINT 1

8Y4-24376-00-00

1
Out of stock

21

PROTECTOR, PIPE

8F3-24327-00-00

1
Out of stock

22

BOLT, FLANGE(8AB)

95817-08020-00

—
Out of stock

23

WASHER, PLATE (12X)

90201-087F0-00

—
Out of stock

24

GAUGE, FUEL

81E-24179-00-00

1
Out of stock

25

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—
Out of stock

26

HOSE (81E)

(90446-09256-00)

1
Out of stock

27

HOSE

90446-11326-00

1
Out of stock

28

HOSE

90446-11326-00

1
Out of stock

29

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

—
Out of stock

30

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

31

PIPE, JOINT

801-24376-00-00

—
Out of stock

32

CLAMP(4FM)

90464-15195-00

—
Out of stock

33

CLAMP(4FM)

90464-15195-00

—
Out of stock

34

NUT, NYLON

95717-08300-00

—
Out of stock

35

WASHER, PLATE (3L7)

90201-08784-00

—
Out of stock

36

PROTECTOR, PIPE

8F3-24326-00-00

1
Out of stock

37

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock
