1986 Yamaha Inviter (CF300K) Carburetor Diagram

← All diagrams

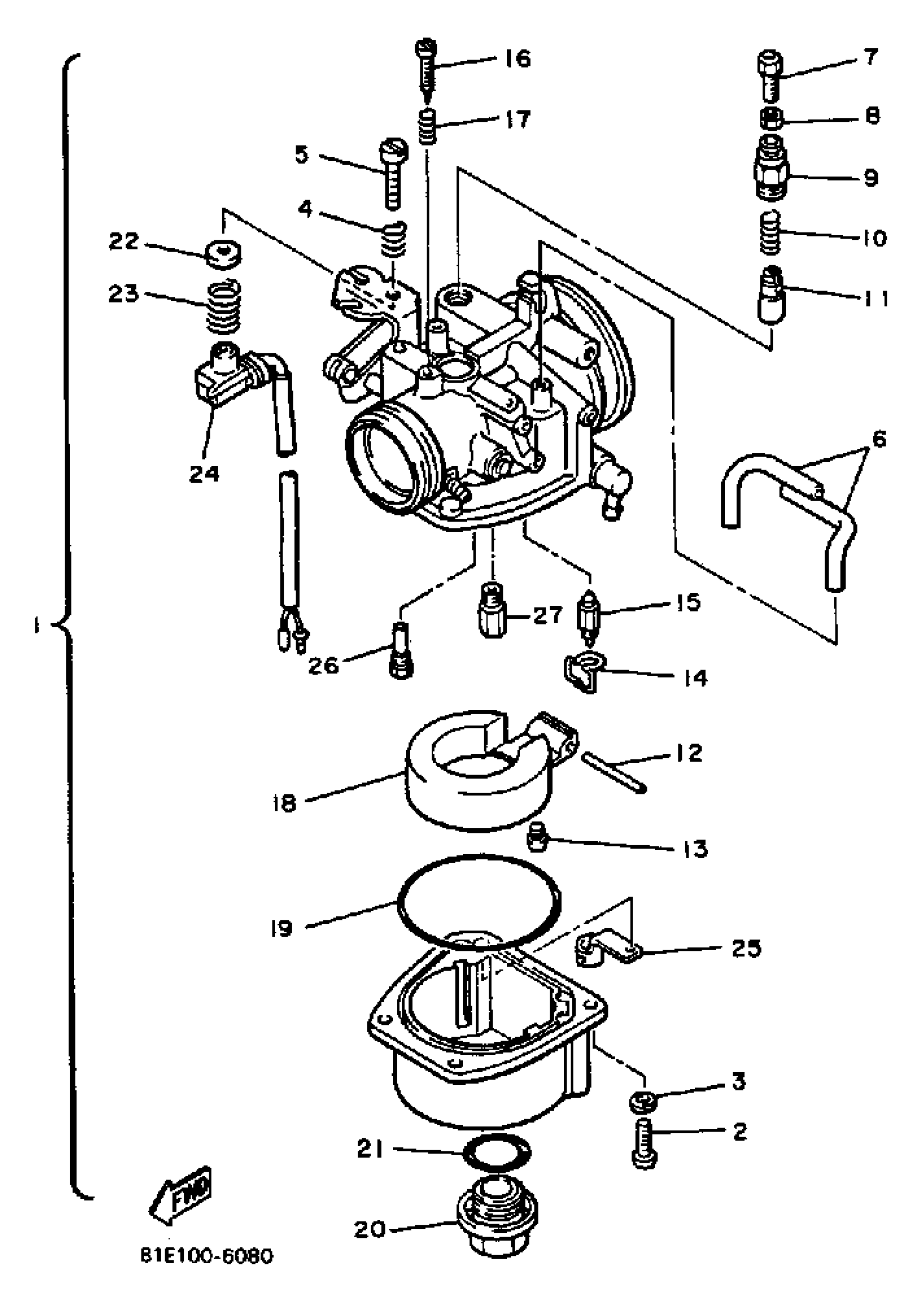

Find the part on the Carburetor diagram for your 1986 Yamaha Inviter (CF300K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Inviter (CF300K) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

83M-14101-01-00

1
Out of stock

2

SCREW, PN/HD.W/WSHR

(97602-04114-00)

1
Out of stock

3

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

4

. SPRING, COMPRESSION

90501-12229-00

1
Out of stock

5

SCREW, THROTTLE STOP

80F-14121-00-00

—

$9.25

In stock

6

. NET, FILTER

8G6-14994-01-00

1
Out of stock

7

1

$19.06

In stock

8

. NUT, CABLE ADJUSTING

8E7-14161-00-00

1
Out of stock

9

CAP, PLUNGER

8A6-14969-00-00

1

$23.14

In stock

10

SPRING (8E7)

90501-08443-00

1

$8.63

In stock

11

PLUNGER, STARTER

371-14993-60-00

1

$31.14

In stock

12

. PIN, FLOAT ARM

663-14548-00-00

1

$5.34

In stock

13

SCREW, FLAT

98707-04008-00

1
Out of stock

14

CLIP

633-14159-00-00

1

$13.88

In stock

15

VALVE,FLOAT

8E7-14546-01-00

1

$57.49

In stock

16

SCREW, ADJUST

8G6-14521-00-00

—

$11.28

In stock

17

SPRING, COMPRESSION

90501-08214-00

—

$5.74

In stock

18

FLOAT

8G6-14985-01-00

—

$32.43

In stock

19

WASHER, FLOAT CHAMBER

8G6-14984-00-00

—

$16.62

In stock

20

. ROD

8M7-14992-00-00

1
Out of stock

21

O-RING (8A6)

93210-19309-00

—

$4.91

In stock

22

PLATE

80F-14146-00-00

—
Out of stock

23

. SPRING, THROTTLE STOP

80F-14133-00-00

1
Out of stock

24

SWITCH, CARBURETOR

87S-8259A-01-00

—

$73.57

In stock

25

CLIP

(80F-14137-00-00)

1
Out of stock

26

. JET (#82)

8G6-14948-20-00

1
Out of stock

27

. JET, MAIN (#118)

8A6-14516-18-00

1
Out of stock
