1986 Yamaha Inviter (CF300K) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1986 Yamaha Inviter (CF300K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

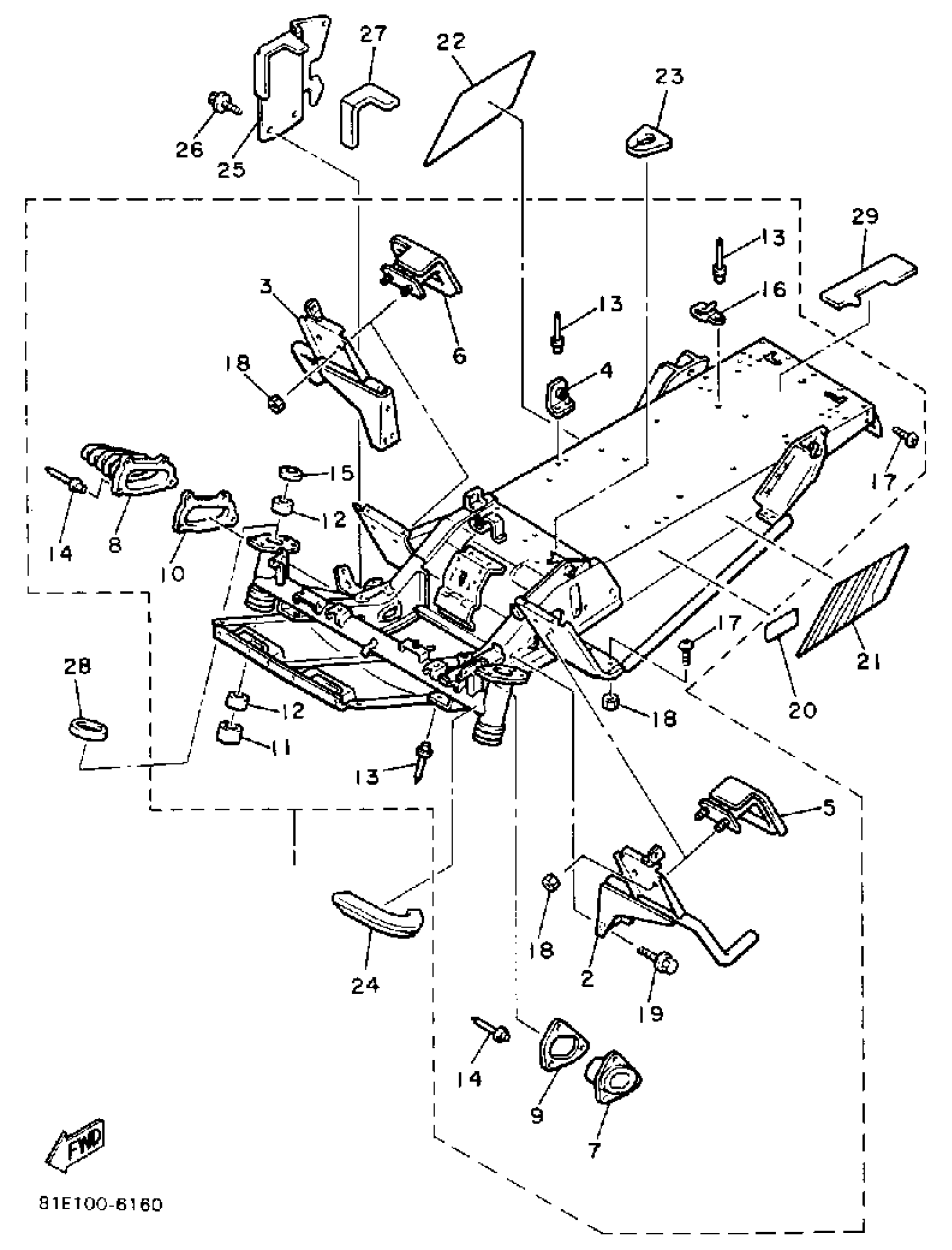

1986 Yamaha Inviter (CF300K) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

81E-21910-00-00

1
Out of stock

2

. RNFCMNT, FRAME SIDE

81E-21929-00-00

1
Out of stock

3

. REINFORCMNT, FRAME

81E-2192E-00-00

1
Out of stock

4

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

5

. BRACKET 5

83U-2196M-00-00

1
Out of stock

6

. BRACKET 6

83U-2197M-00-00

1
Out of stock

7

. COVER 1

80L-2198F-00-00

1
Out of stock

8

. COVER, STEERING

81E-23818-00-00

1
Out of stock

9

. WASHER 1

80L-77525-00-00

1
Out of stock

10

. WASHER 2

81E-77526-00-00

1
Out of stock

11

. OIL SEAL

93103-44134-00

1
Out of stock

12

. BUSH, BIMETAL FORMED

90384-44173-00

1
Out of stock

13

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

14

RIVET, BLIND(8R6)

90267-40105-00

—

$1.62

In stock

15

. OIL SEAL

93104-44095-00

1
Out of stock

16

CLAMP(4MX)

90465-06376-00

—

$7.08

In stock

17

SCREW, BIND(J39)

98980-06014-00

—

$5.66

In stock

18

NUT, NYLON

95707-06300-00

—

$3.20

In stock

19

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

20

INDICATOR 2

8K2-77742-00-00

1
Out of stock

21

EMBLEM 3

81E-77353-00-00

1
Out of stock

22

EMBLEM 4

81E-77354-00-00

1
Out of stock

23

PATCH 8

81E-21988-00-00

1
Out of stock

24

TAPE 4

83U-7717H-00-00

1
Out of stock

25

SHIELD, HEAT

81E-2199H-00-00

1
Out of stock

26

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

27

SHIELD, NOISE 2

81E-2199J-01-00

1
Out of stock

28

DAMPER, NOISE 11

81E-77271-00-00

1
Out of stock

29

TAPE 1

81E-7717E-00-00

1
Out of stock
