1986 Yamaha Inviter (CF300K) Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1986 Yamaha Inviter (CF300K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

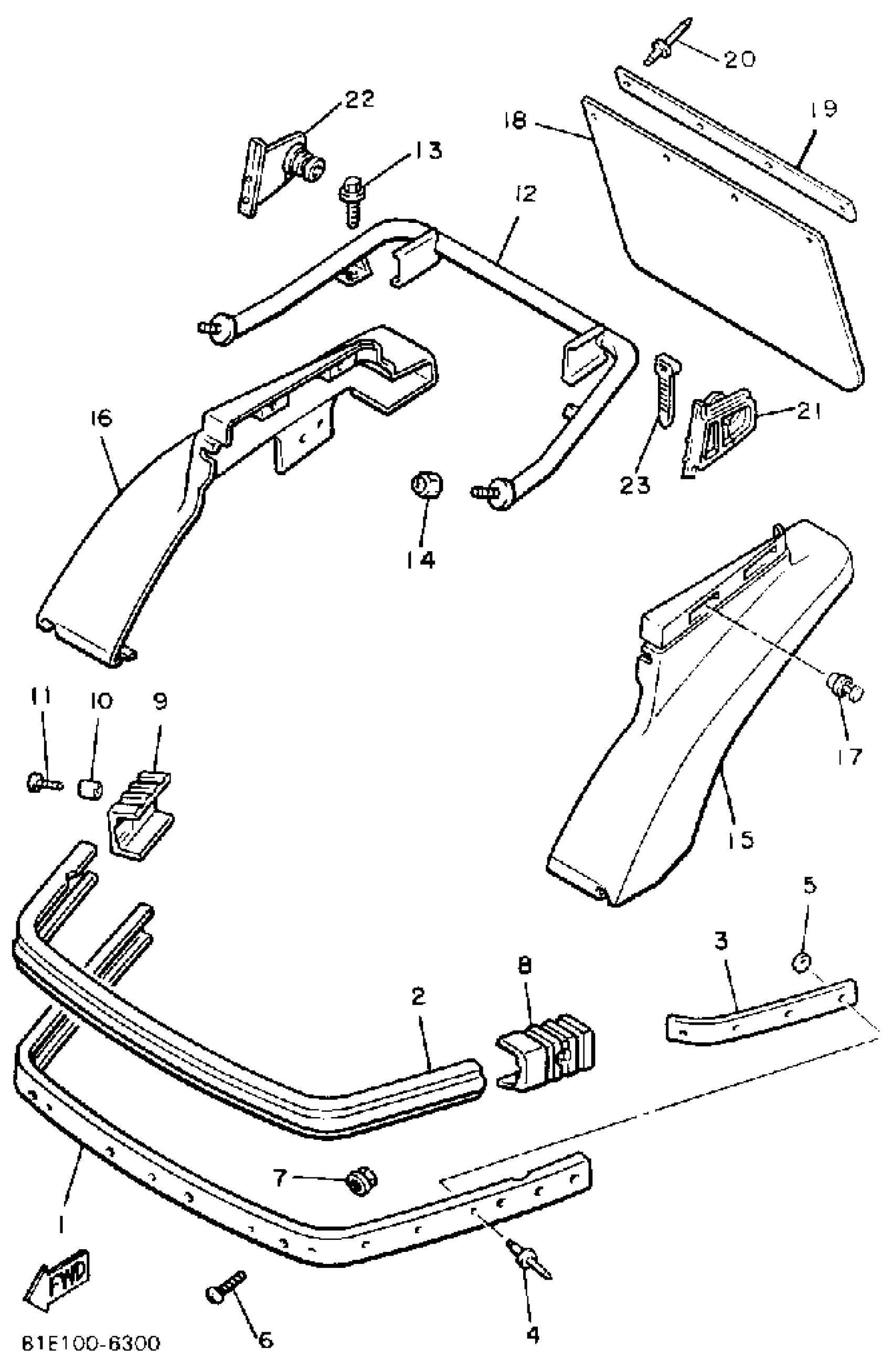

1986 Yamaha Inviter (CF300K) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

81E-77511-01-00

1
Out of stock

2

BUSH, RUBBER 2

81E-77516-00-00

1
Out of stock

3

SPACER, BUMPER

81E-77529-00-00

1
Out of stock

4

RIVET,BLIND

90267-40080-00

1
Out of stock

5

WASHER, PLATE

90201-04027-00

1
Out of stock

6

SCREW, BIND(1JK)

98980-06010-00

1
Out of stock

7

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

8

END, BUMPER

81E-77523-00-00

1
Out of stock

9

END, BUMPER

81E-77524-00-00

1
Out of stock

10

COLLAR (3L6)

90387-06761-00

1

$6.88

In stock

11

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

12

BUMPER, REAR 1

81E-77541-00-00

1
Out of stock

13

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

14

NUT, NYLON

95717-08300-00

1

$2.57

In stock

15

COVER, 3

(81E-77563-01-00)

1
Out of stock

16

COVER, 4

(81E-77564-00-00)

1
Out of stock

17

RIVET(81E)

90269-08050-00

—

$2.29

In stock

18

FLAP

88C-77595-00-00

1
Out of stock

19

STOPPER, FLAP

80J-77596-00-00

—
Out of stock

20

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

21

PROTECTOR 1

81E-77551-01-00

1
Out of stock

22

PROTECTOR 2

81E-77552-01-00

1
Out of stock

23

CLAMP

(90464-13080-00)

1
Out of stock
