Description

Price

1

BRACKET, ENGINE 1

83M-21411-00-00

Unavailable

2

BRACKET, ENGINE 2

(81E-21419-01-00)

Unavailable

3

BOLT (81E)

97022-10018-00

Unavailable

4

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

5

PATCH

(81E-21461-00-00)

Unavailable

6

DAMPER, RUBBER 1

81E-21485-00-00

Unavailable

7

DAMPER 2

81E-21486-00-00

Unavailable

8

WASHER, LOCK

81E-21491-00-00

Unavailable

9

WASHER, PLATE (856)

90201-10321-00

$8.49

10

NUT, FLANGE(3BM)

95704-10500-00

$4.29

11

BOLT, FLANGE

95817-10020-00

$8.49

12

BOLT, FLANGE

95817-08012-00

$5.49

13

STOPPER, BRAKE PEDL

81E-21449-00-00

Unavailable

14

BRACKET, ENG LOWER

81E-21489-01-00

Unavailable

15

DAMPER

81E-21488-01-00

Unavailable

16

WASHER, PLATE(82M)

90201-080L1-00

Unavailable

17

BOLT, FLANGE

95817-08012-00

$5.49

18

WASHER, PLATE

90201-10144-00

Unavailable

19

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

20

BRKT, GUARD FITTING

81E-21972-00-00

Unavailable

21

DAMPER

8R4-21488-01-00

Unavailable

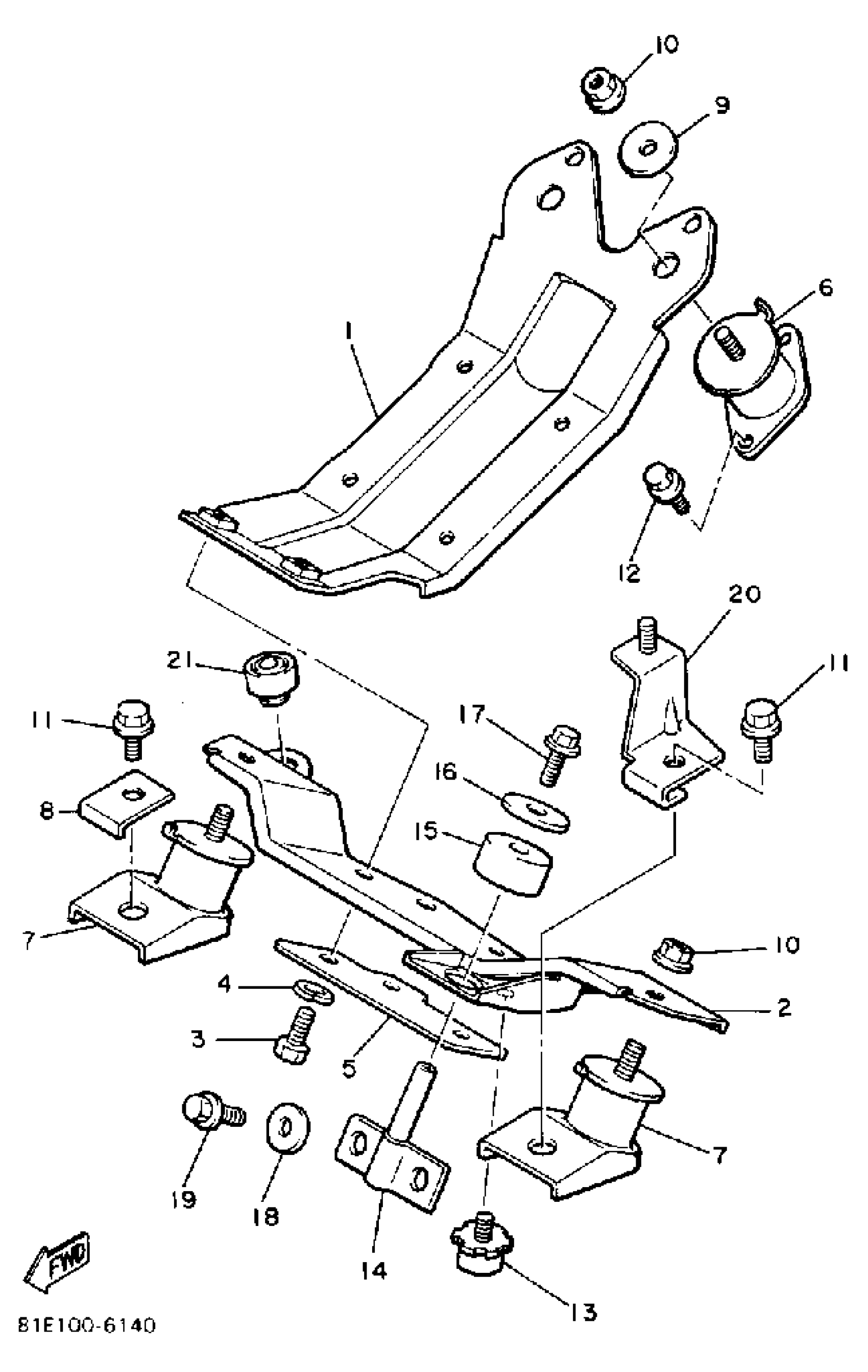

Yamaha CF300K (INVITER) 1986 ENGINE BRACKET Diagram

BRACKET, ENGINE 1

BRACKET, ENGINE 2

BOLT (81E)

YBS67-10 WASHER, SPRING

PATCH

DAMPER, RUBBER 1

DAMPER 2

WASHER, LOCK

WASHER, PLATE (856)

NUT, FLANGE(3BM)

BOLT, FLANGE

BOLT, FLANGE

STOPPER, BRAKE PEDL

BRACKET, ENG LOWER

DAMPER

WASHER, PLATE(82M)

BOLT, FLANGE

WASHER, PLATE

BOLT, FLANGE(3HP)

BRKT, GUARD FITTING

DAMPER
