Description

Price

1

PISTON (STD)

81E-11631-00-95

Unavailable

1

PISTON 1 O/S 0.25

81E-11635-00-00

Unavailable

1

PISTON 2 O/S 0.50

81E-11636-00-00

Unavailable

2

PISTON RING SET (STD)

8R6-11601-00-00

$70.99

2

PISTON RING SET (1ST O/S)

8R6-11601-10-00

$64.99

2

PISTON RING SET (2ND O/S)

8R6-11601-20-00

$60.99

3

CIRCLIP (2F1)

93450-19052-00

$7.49

4

PIN, PISTON

81E-11633-00-00

Unavailable

5

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

6

CRANKSHAFT ASSEMBLY

81E-11400-00-00

Unavailable

7

. CRANK 1

81E-11412-00-00

Unavailable

8

. CRANK 2

81E-11422-00-00

Unavailable

9

. ROD, CONNECTING

81E-11651-00-00

Unavailable

10

. PIN, CRANK 1

857-11681-00-00

Unavailable

11

. BEARING, CYLINDRICAL

93310-424L8-00

Unavailable

12

WASHER (152-11685-00)

90209-24073-00

Unavailable

13

. BEARING

93306-39901-00

Unavailable

14

. OIL SEAL, SD-TYPE

93102-32354-00

Unavailable

15

GEAR, PUMP DRIVE

8R4-13178-00-00

Unavailable

16

CIRCLIP, OUTER

93440-68150-00

Unavailable

17

OIL SEAL, SD-TYPE

93102-32355-00

Unavailable

18

KEY, WOODRUFF

90280-05001-00

Unavailable

19

NUT

90170-16425-00

Unavailable

20

WASHER(JN5)

92907-16100-00

Unavailable

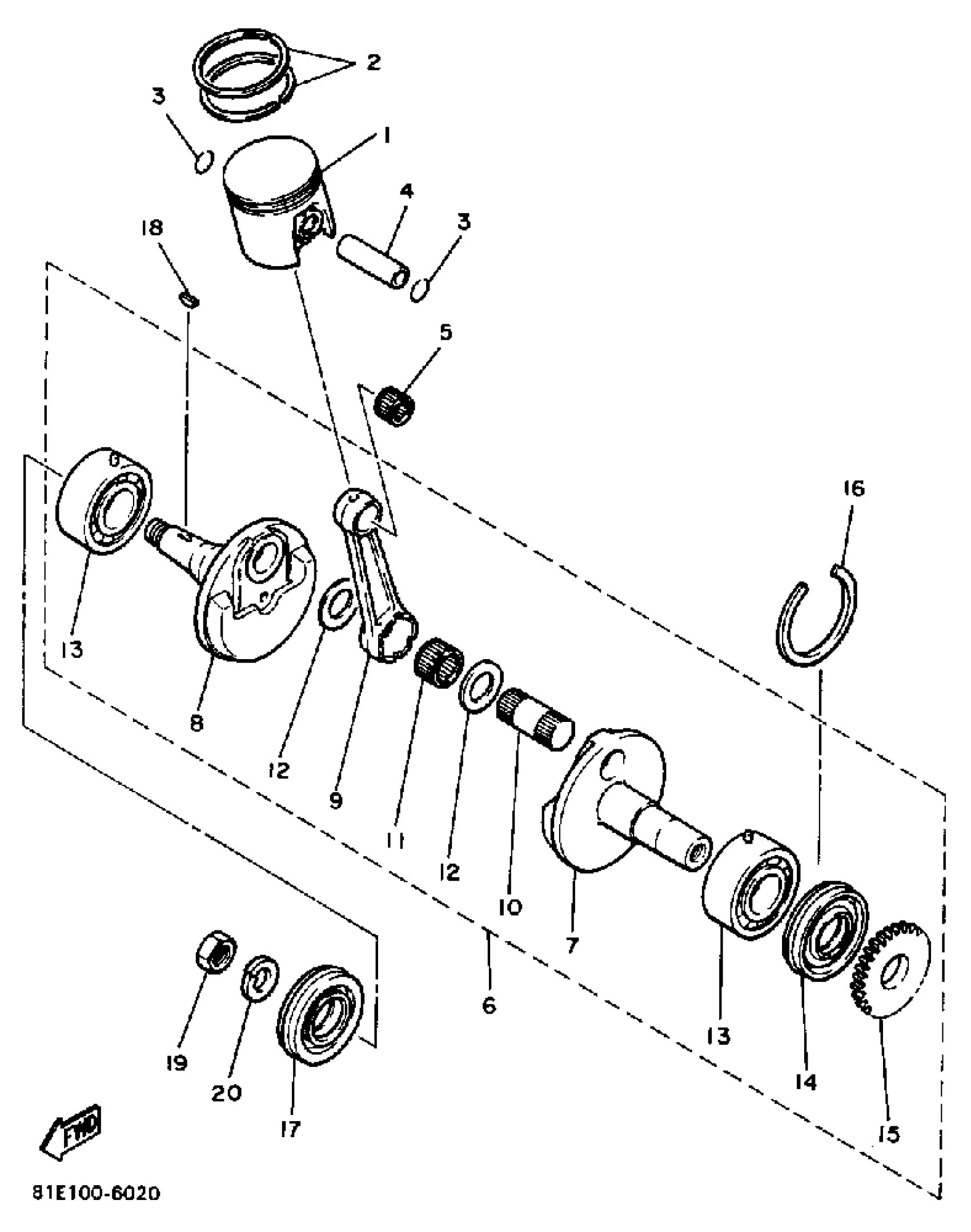

Yamaha CF300K (INVITER) 1986 CRANKSHAFT - PISTON Diagram

PISTON (STD)

PISTON 1 O/S 0.25

PISTON 2 O/S 0.50

PISTON RING SET (STD)

PISTON RING SET (1ST O/S)

PISTON RING SET (2ND O/S)

CIRCLIP (2F1)

PIN, PISTON

BEARING,CON-ROD SMALLEND(2X5)

CRANKSHAFT ASSEMBLY

. CRANK 1

. CRANK 2

. ROD, CONNECTING

. PIN, CRANK 1

. BEARING, CYLINDRICAL

WASHER (152-11685-00)

. BEARING

. OIL SEAL, SD-TYPE

GEAR, PUMP DRIVE

CIRCLIP, OUTER

OIL SEAL, SD-TYPE

KEY, WOODRUFF

NUT

WASHER(JN5)
