AIR CLEANER

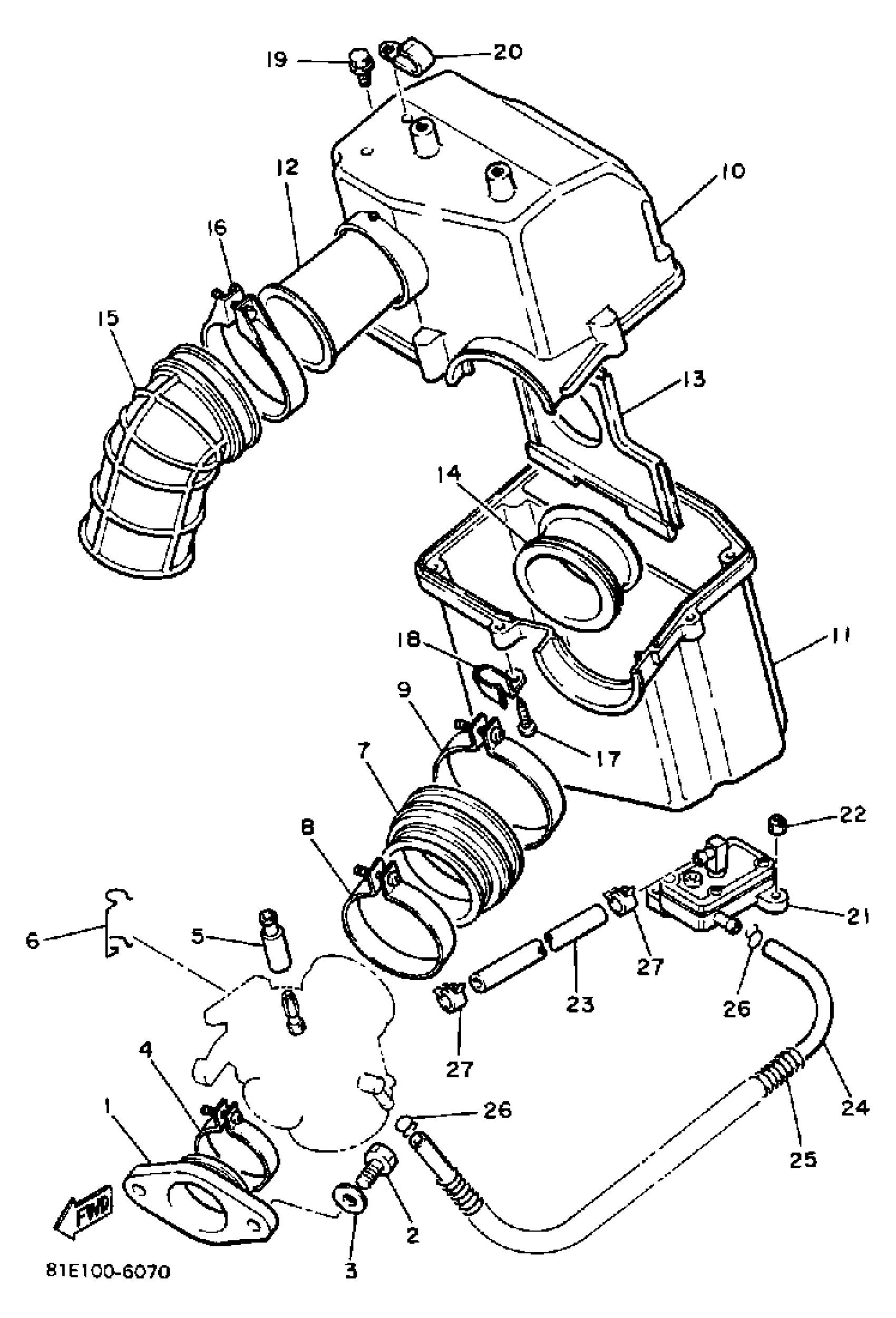

Yamaha CF300K (INVITER) 1986 AIR CLEANER Diagram
#
Description
Price
1
MANIFOLD, INTAKE
81E-13555-00-00
Unavailable
2
BOLT, HEXAGON
97017-08025-00
$10.49
3
.. WASHER, PLATE
92990-08600-00
Unavailable
4
BAND
86M-13575-00-00
$19.49
5
BOOT
8J5-26352-00-00
Unavailable
6
CLAMP
90465-10033-00
Unavailable
7
JOINT, AIR CLEANER
8G8-14453-01-00
$31.99
8
CLAMP, HOSE (29L)
90460-68230-00
$16.99
9
CLAMP, HOSE(59V)
90460-85277-00
$16.99
10
SILENCER, INTAKE 1
(81E-14431-00-00)
Unavailable
11
SILENCER, INTAKE 2
81E-14441-00-00
Unavailable
12
PIPE
(81E-14419-00-00)
Unavailable
13
PLATE
81E-14477-00-00
Unavailable
14
PIPE
81E-14465-00-00
Unavailable
15
JOINT
81E-14454-00-00
Unavailable
16
CLAMP, HOSE
90460-77016-00
Unavailable
17
YBS83-525 SCREW,PANH.TAPPING
97780-50125-00
Unavailable
18
CLAMP (1L9)
(90465-10092-00)
Unavailable
19
BOLT, WITH WASHER(8V7)
90119-06108-00
Unavailable
20
CLAMP
90462-10236-00
Unavailable
21
FUEL PUMP ASY
8J6-24410-01-00
Unavailable
22
NUT, NYLON
95707-06300-00
Unavailable
23
HOSE (L450)
90445-10144-00
Unavailable
24
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
25
SPRING, COMPRESSION(7MX)
90501-084J0-00
Unavailable
26
CLIP
90467-090A2-00
Unavailable
27
CLIP (8A1)
90467-09026-00
Unavailable
