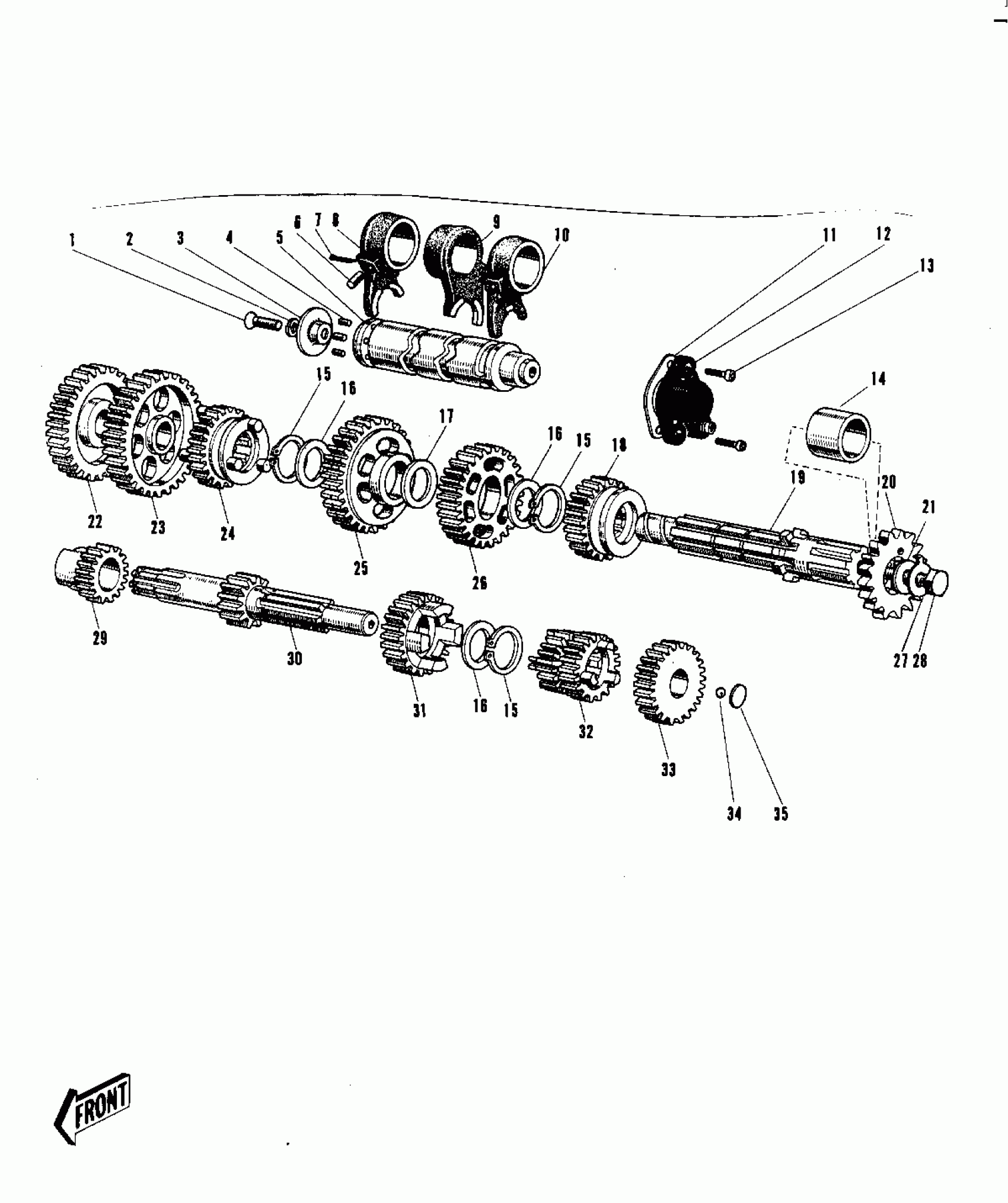

Kawasaki Centurion TRANSMISSION/CHANGE DRUM Diagram
#
1
SCREW PAN HEAD 6X12
220B0612
Unavailable
2
WASHER LOCK 6MM
464H0600
Unavailable
3
PLATE CHANGE DRUM PIN
13142-008
Unavailable
4
PIN,DOWEL,4X15.8
92042-014
Unavailable
5
GEAR CHANGE DRUM
13141-010
Unavailable
6
PIN SELECT FORK GUIDE
92043-005
Unavailable
7
PIN-COTTER,3.0X20
550D3020
Unavailable
8
FORK SELECTOR LOW-2ND
13140-010
Unavailable
9
FORK SELECTOR 4TH-TOP
13140-017
Unavailable
10
FORK SELECTOR 3RD
13140-009
Unavailable
11
GASKET,NEUTRAL SWITCH
13146-002
Unavailable
12
SWITCH,NEUTRAL
13151-1001
Unavailable
13
SCREW-PAN-CROS,6X16
220B0616
Unavailable
14
SPACER ENG SPROCKET
92027-009
Unavailable
15
RING-SNAP,16MM
92033-014
Unavailable
16
WASHER,18.5X23X1.2
92022-118
Unavailable
17
WASHER,THRUST,18.5X23X1.6
92022-146
Unavailable
18
UNAVAILABLE IN PRICE BOOK
13137-003
Unavailable
19
SHAFT-TRANSMISSION OUTPUT
13128-021
Unavailable
20
SPROCKET-OUTPUT,14T
13144-1058
Unavailable
20
ENG SPROCKET ASY,13T
13249-001
Unavailable
20
ENG SPROCKET,ASY,15T
13249-003
Unavailable
20
ENGINE SPROCKET 16T
13144-040
Unavailable
21
WASHER ENG SPROCKET
92022-130
Unavailable
22
GEAR-SPUR,KICKSTARTER.IDLE,30T
13073-004
Unavailable
23
LOW GEAR OUTPUT SHAFT
13129-025
Unavailable
24
GEAR,OUTPUT 4TH,24T
13129-1708
Unavailable
25
2ND GEAR OUTPUT SHAFT
13131-021
Unavailable
26
3RD GEAR OUTPUT SHAFT
13133-005
Unavailable
27
WASHER LOCK 8MM
92030-007
Unavailable
28
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
29
GEAR-SPUR,KICKSTARTER PINION
13075-004
Unavailable
30
UNAVAILABLE IN PRICE BOOK
13127-021
Unavailable
31
4TH GEAR,DRIVE
13129-1053
Unavailable
32
2ND-3RD GEAR DRV SHFT
13130-019
Unavailable
33
GEAR,INPUT TOP,24T
13129-1927
Unavailable
34
BALL-STEEL,7/32"
600A0700
Unavailable
35
WASHER,THRUST
92022-115
Unavailable
