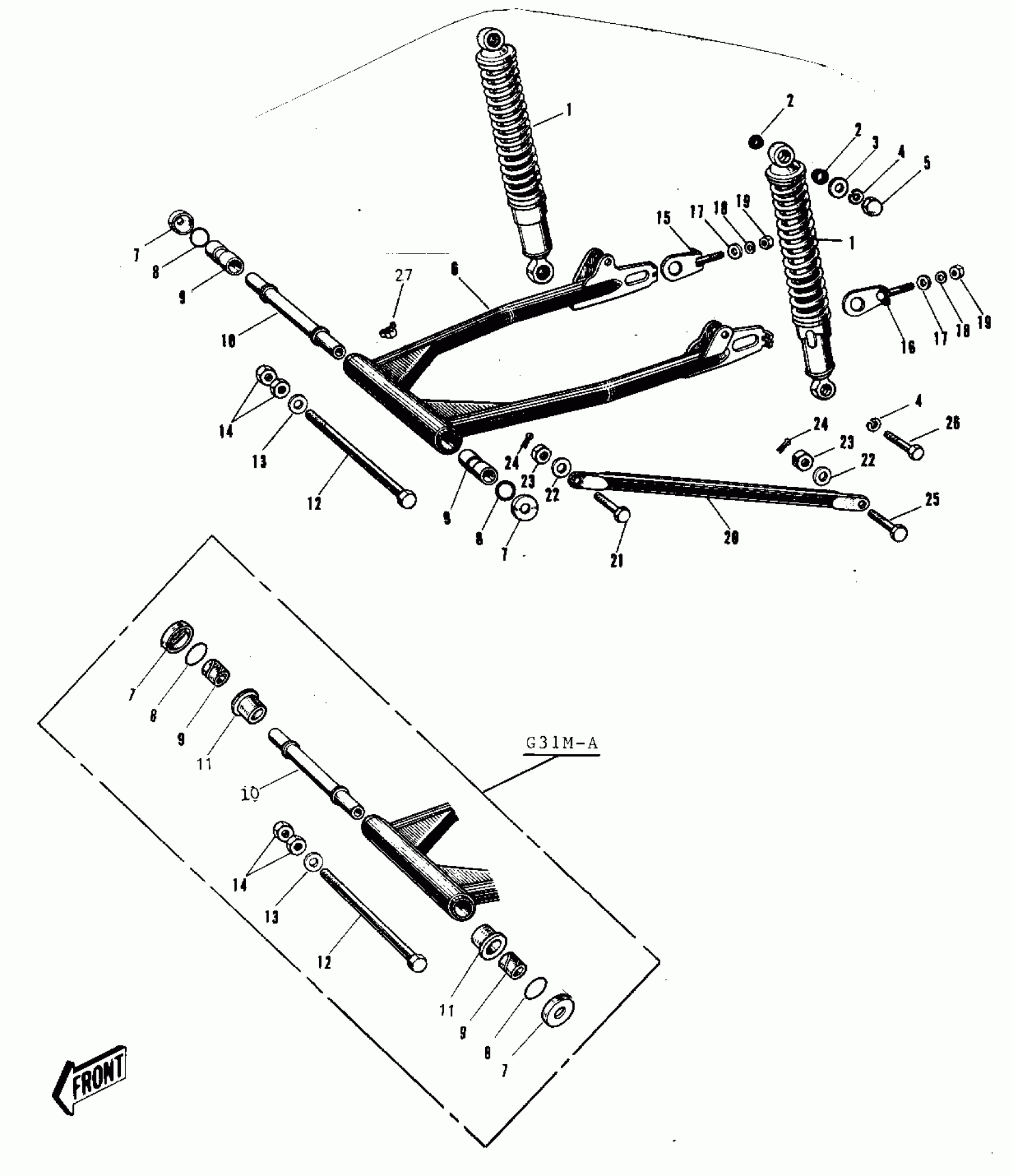

Kawasaki Centurion SWING ARM/SHOCK ABSORBERS Diagram
#
Description
Price
1
SHOCK ABSBR RR
45014-069
Unavailable
2
BUSH SHOCK ABSORBER
45017-003
Unavailable
3
WASHER,10.5X26X2.3
92022-044
Unavailable
4
WASHER SPRING 10MM
461F1000
Unavailable
5
NUT,CAP,10MM
92020-003
Unavailable
6
ARM SWING
33001-024
Unavailable
6
ARM-SWING
33001-033
Unavailable
7
HOLDER DUST SHIELD
33035-001
Unavailable
7
CAP-SWINGING ARM
33035-005
Unavailable
8
DUST SHIELD PIVOT SFT
92093-004
Unavailable
8
"0" RING,30MM
671B2530
Unavailable
9
SLEEVE SWING ARM
33034-001
Unavailable
9
SLEEVE-SWINGING ARM
33034-016
Unavailable
10
COLLAR SWING ARM
33036-002
Unavailable
11
BUSHING-SWING ARM
33033-009
Unavailable
12
SHAFT SWING ARM PIVOT
33032-023
Unavailable
13
WASHER-SPRING,12MM
461F1200
Unavailable
14
NUT-HEX-FINE
315B1200
Unavailable
15
ADJUSTER CHAIN R.H
33040-038
Unavailable
16
ADJUSTER CHAIN L.H
33040-037
Unavailable
17
WASHER PLAIN 8MM
410B0800
Unavailable
18
WASHER SPRING 8MM
461F0800
Unavailable
19
NUT 8MM
312B0800
Unavailable
20
TORQUE LINK REAR BRK
43007-018
Unavailable
21
BOLT,10X25
92003-017
Unavailable
22
WASHER SPRING 10MM
461F1000
Unavailable
23
NUT-HEX-FINE,10MM
314B1000
Unavailable
24
PIN COTTER 2.0X15
550D2015
Unavailable
25
BOLT,10X32
92003-003
Unavailable
26
BOLT HEX HEAD 10X35
113N1035
Unavailable
27
GREASE NIPPLE
92005-002
Unavailable
