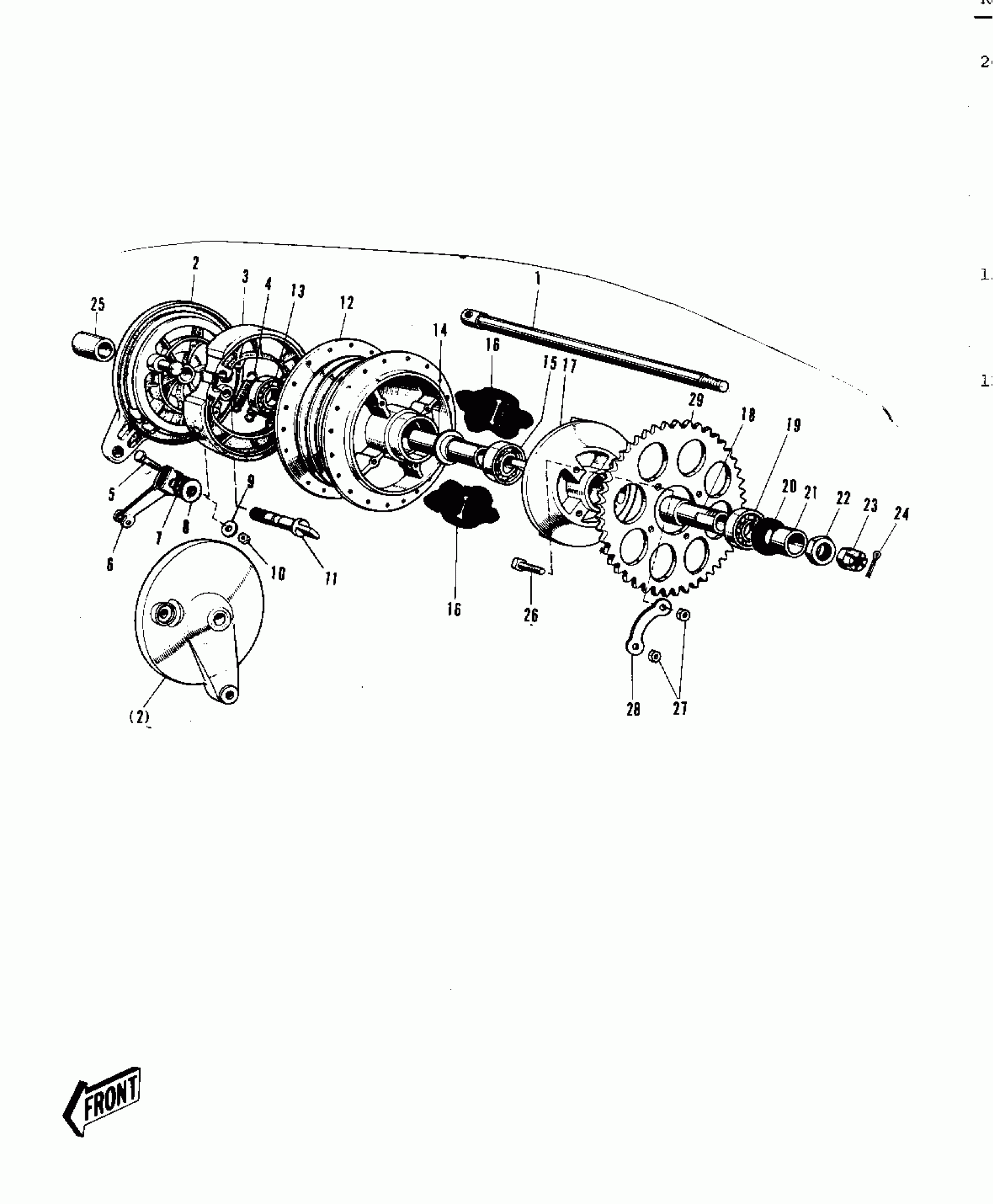

Kawasaki Centurion REAR HUB/BRAKE Diagram
#
Description
Price
1
AXLE REAR
42031-022
Unavailable
2~11
PANEL-ASY,RR BRK
42006-015
Unavailable
3
SHOE,BRAKE
41048-1007
Unavailable
4
SPRING,BRAKE SHOE
92081-1766
Unavailable
5
BOLT-UPSET
112G0630
Unavailable
6
LEVER REAR BRAKE CAM
42029-012
Unavailable
7
RING-O,BRAKE CAM
92055-004
Unavailable
8
WASHER BRAKE CAM SHT
41052-001
Unavailable
9
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
10
NUT 6MM
311B0600
Unavailable
11
CAM-BRAKE
41050-018
Unavailable
12~16
DRUM ASSY REAR BRAKE
42005-016
Unavailable
13
BEARING BALL #6302Z
601B6302Z
Unavailable
14
SPACER RR HUB BEARING
42010-006
Unavailable
15
BEARING-BALL,#6202C3
601B6202
Unavailable
16
DAMPER REAR HUB SHOCK
42014-015
Unavailable
12~22
COUPLING ASSY RR HUB
42033-001
Unavailable
18
SLEEVE COUPLING
42036-003
Unavailable
19
BEARING-BALL,#6004C3
601B6004
Unavailable
20
OIL SEAL RR BRK DRUM
92050-009
Unavailable
21
COLLAR OIL SEAL
42037-004
Unavailable
22
NUT 20MM
42045-009
Unavailable
23
NUT CASTLE 14MM
321B1400
Unavailable
24
PIN-COTTER,3.0X30
550D3030
Unavailable
25
COLLAR REAR HUB R.H
42032-013
Unavailable
26
BOLT REAR SPROCKET
92001-021
Unavailable
27
NUT,8MM
311B0800
Unavailable
28
WASHER RR SPRCKT LOCK
92088-004
Unavailable
29
REAR SPROCKET 50T
42041-065
Unavailable
29
REAR SPROCKET 54T
42041-052
Unavailable
29
REAR SPROCKET 52T
42041-066
Unavailable
