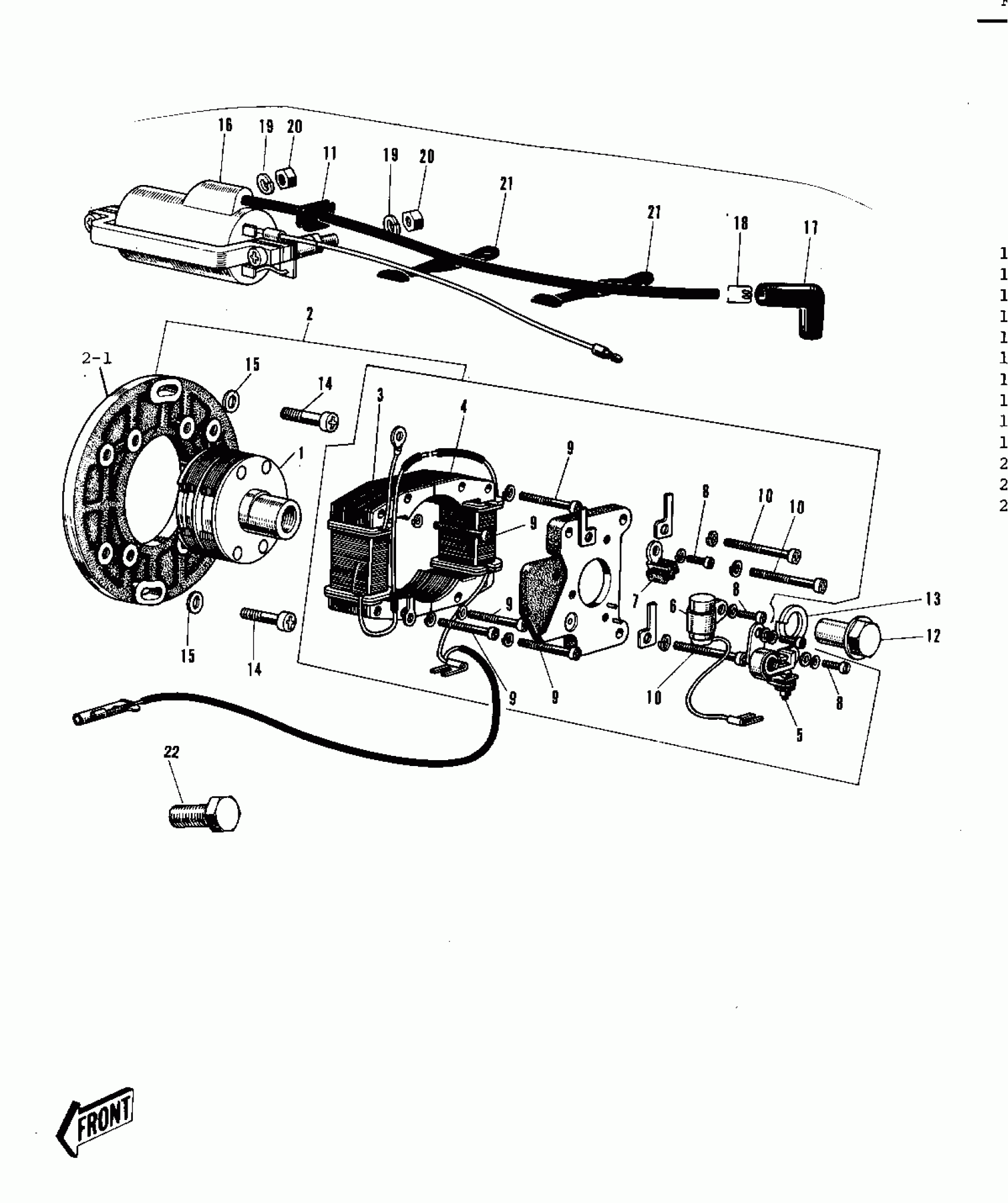

Kawasaki Centurion IGNITION Diagram
#
Description
Price
1
ROTOR
21007-017
Unavailable
2
STATOR ASSY
21046-003
Unavailable
2-1
BASE-MAGNETO
21048-014
Unavailable
3
COIL PRIMARY A
21049-009
Unavailable
4
COIL PRIMARY B
21049-010
Unavailable
5
BREAKER CONTACT
21008-014
Unavailable
6
CONDENSER
21013-019
Unavailable
7
BRUSH,OIL
21019-005
Unavailable
8
SCREW PAN HEAD 4X8
21085-004
Unavailable
9
SCREW PAN HEAD 5X30
220B0530
Unavailable
10
SCREW-PAN-CROS
220B0540
Unavailable
11
GROMMET WIRING HARNES
21017-007
Unavailable
12
NUT ROTOR FITTING
92015-039
Unavailable
13
WASHER SPRING 14MM
461F1400
Unavailable
14
SCREW-PAN-CROS,6X16
220B0616
Unavailable
15
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
16
COIL,IGNITION
21121-1047
Unavailable
17
CAP-SPARK PLUG
21130-009
Unavailable
18
TERMINAL,SPARK PLUG CAP
92101-001
Unavailable
19
WASHER SPRING 6MM
461F0600
Unavailable
20
NUT 6MM
311B0600
Unavailable
21
BAND RUBBER
92072-013
Unavailable
22
PULLER ROTOR (Canada)
56019-046
Unavailable
