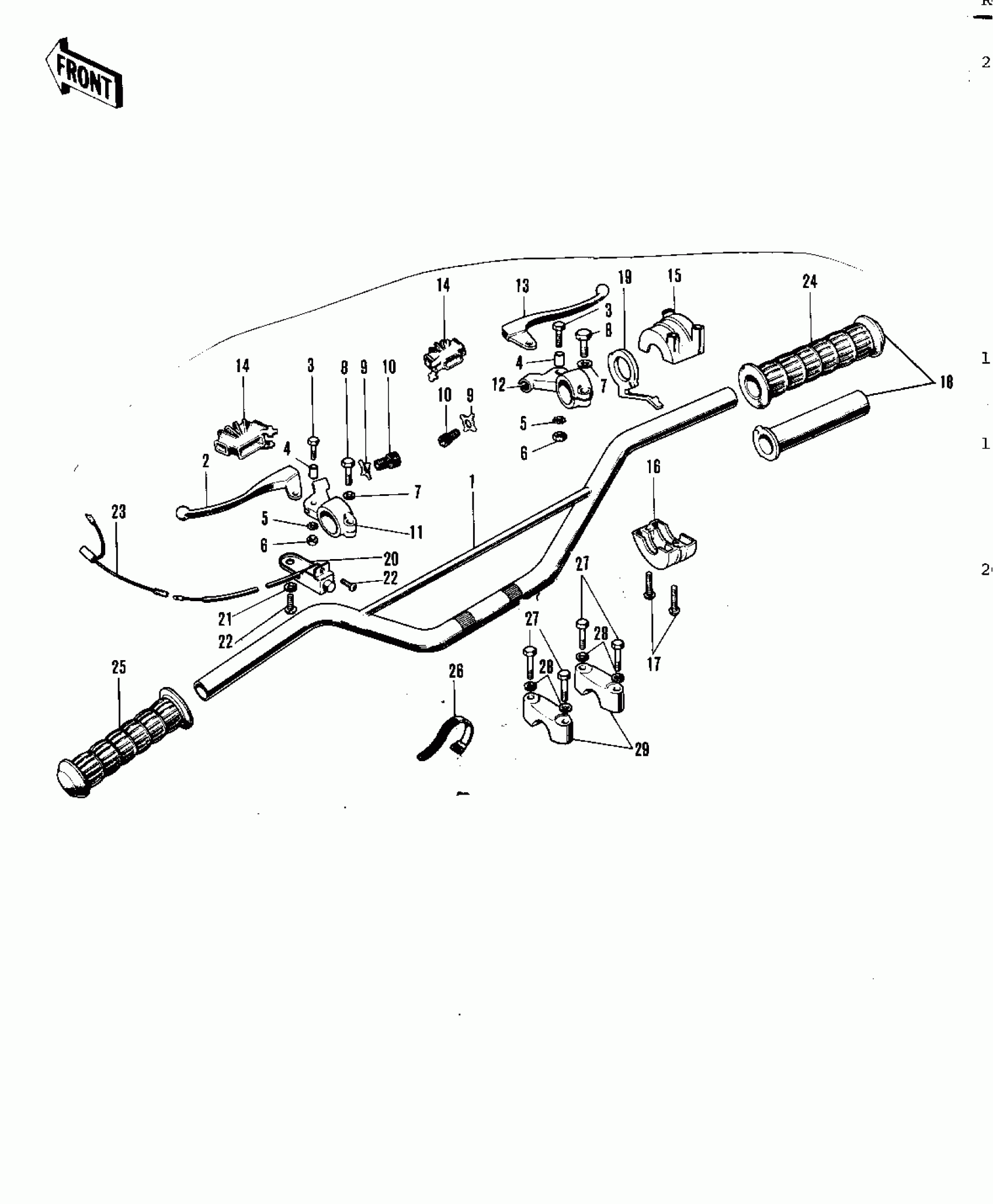

Kawasaki Centurion HANDLEBAR (G31M-A) Diagram
#
Description
Price
1
HANDLEBAR
46004-004
Unavailable
2~11,1
LEVER ASSY-CLUTCH
46076-014
Unavailable
2
LEVER-GRIP,CLUTCH
46092-015
Unavailable
3
BOLT HEX HEAD 5X20
92007-020
Unavailable
4
COLLAR LEVER
46059-011
Unavailable
5
WASHER LOCK 5MM
464H0500
Unavailable
6
NUT-HEX,5MM
312B0500
Unavailable
7
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
8
BOLT,6X22
110N0622
Unavailable
9
NUT LOCK ADJUST SCREW
46056-001
Unavailable
10
SCREW,CABLE ADJUST
46055-010
Unavailable
10
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
11
HOLDER-CLUTCH LEVER
46094-007
Unavailable
3~10
LEVER ASSY-FRNT BRAKE
46021-010
Unavailable
12~14
HOLDER-FR BRAKE LEVER
46060-005
Unavailable
13
LEVER-GRIP,FRONT BRAKE
46058-004
Unavailable
14
DUST COVER
46071-001
Unavailable
15~19
CASE ASSY-R.H
46018-019
Unavailable
15
CASE-R.H.UPPER
46041-005
Unavailable
16
CASE-R.H LOWER
46023-005
Unavailable
17
SCREW PAN HEAD 5X22
220B0522
Unavailable
18
GRIP ASSY-THROTTLE
46019-013
Unavailable
20~22
SWITCH ASSY-ENG STOP
46027-006
Unavailable
21
WASHER SPRING 3MM
461F0300
Unavailable
22
SCREW-PAN-CROS,3X6
220B0306
Unavailable
23
WIRE-LEAD
26011-045
Unavailable
24
RUBBER-R.H GRIP
46061-012
Unavailable
25
RUBBER-L.H GRIP
46075-017
Unavailable
26
BAND,L=123
92072-030
Unavailable
27
BOLT 8X38
92001-1405
Unavailable
28
WASHER SPRING 8MM
461F0800
Unavailable
29
HOLDER-HANDLE,UPP
46012-008
Unavailable
