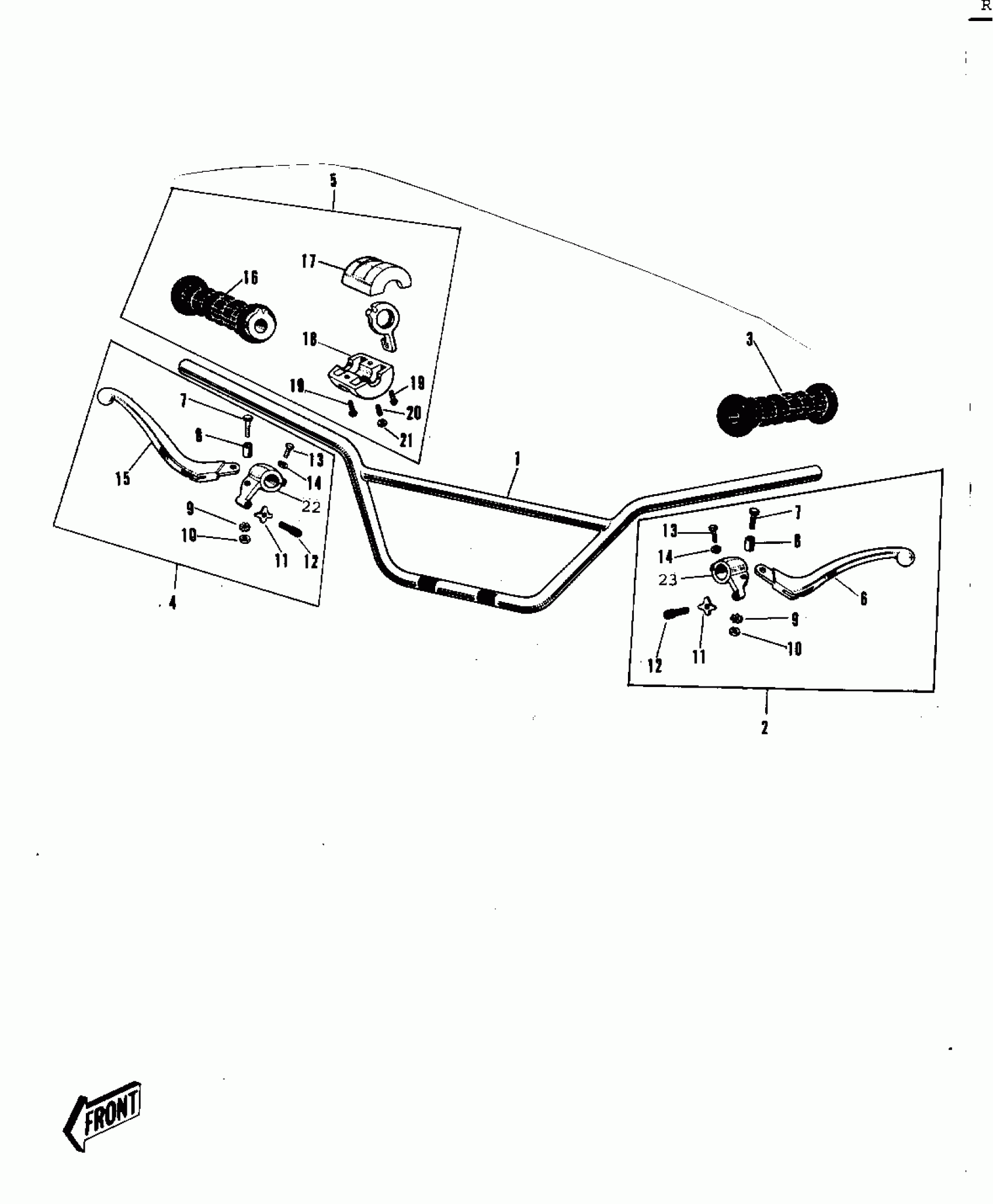

Kawasaki Centurion HANDLEBAR (G31M) Diagram

#

Description

Price

1

HANDLEBAR

46004-004

Unavailable

2

LEVER ASSY CLUTCH

46076-011

Unavailable

3

RUBBER L.H GRIP

46075-013

Unavailable

4

LEVER ASSY FRNT BRAKE

46021-006

Unavailable

5

CASE ASSY R.H

46018-008

Unavailable

6

LEVER CLUTCH

46092-012

Unavailable

7

UNAVAILABLE IN PRICE BOOK

110N0628

Unavailable

8

COLLAR LEVER

46059-010

Unavailable

9

WASHER LOCK 6MM

464H0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

NUT LOCK ADJUST SCREW

46056-001

Unavailable

12

SCREW,CABLE ADJUST

46055-010

Unavailable

12

SCREW,CABLE ADJUST,8MM

46055-009

Unavailable

13

BOLT HEX HEAD 6X25

110N0625

Unavailable

14

WASHER SPRING 6MM

461F0600

Unavailable

15

LEVER FRONT BRAKE

46058-012

Unavailable

16

CASE ASSY R.H

46018-008

Unavailable

17

CASE R.H UPPER

46040-013

Unavailable

18

CASE R.H LOWER

46022-015

Unavailable

19

SCREW-PAN-CROS

220B0518

Unavailable

20

SCREW GRIP ADJUST

46026-006

Unavailable

21

SPRING GRIP ADJUST

46025-004

Unavailable

22

HOLDER-FR BRAKE LEVER

46060-005

Unavailable

23

HOLDER-CLUTCH LEVER

46094-007

Unavailable
