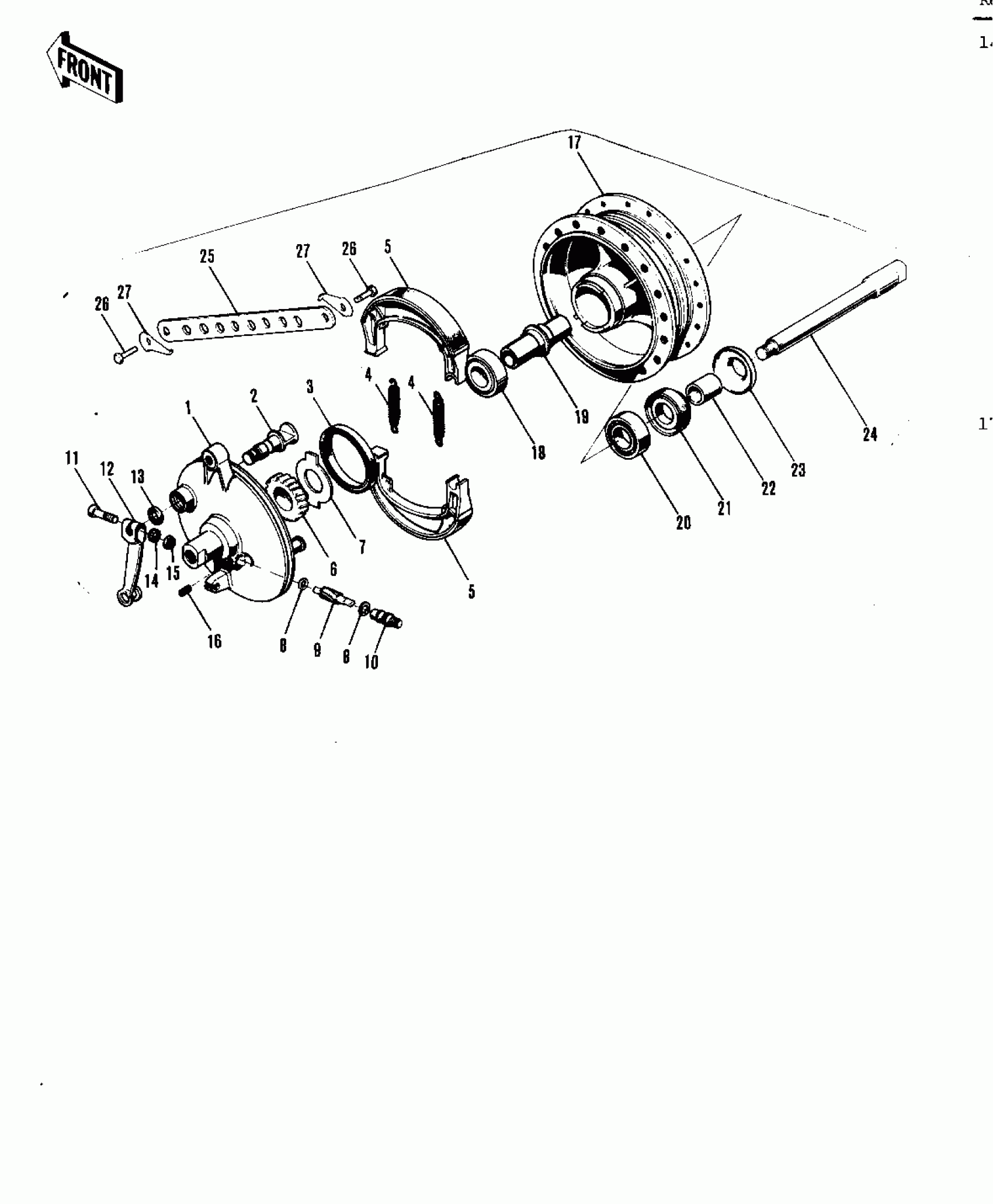

Kawasaki Centurion FRONT HUB/BRAKE (G31M-A) Diagram

#

Description

Price

1~16

PANEL-ASY,FR BRK BUFF

41035-044-80

Unavailable

2

CAM-BRAKE

41050-018

Unavailable

4

SPRING,BRAKE SHOE

92081-1766

Unavailable

5

SHOE,BRAKE

41048-1007

Unavailable

11

BOLT-UPSET

112G0630

Unavailable

11

BOLT-UPSET

112G0630

Unavailable

12

LEVER-BRAKE CAM

41053-005

Unavailable

13

WASHER BRAKE CAM SHT

41052-001

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

15

NUT 6MM

311B0600

Unavailable

17~21

DRUM-ASSY,FR BRK

41034-004

Unavailable

18

BEARING BALL #6301Z

601B6301Z

Unavailable

19

SPACER FR HUB BEARING

41039-005

Unavailable

20

BEARING BALL #6301

601B6301

Unavailable

21

OIL SEAL FR BRK DRUM

92050-011

Unavailable

22

COLLAR FRONT HUB R.H

41069-005

Unavailable

23

DUST SHIELD FR BRAKE

41042-006

Unavailable

24

AXLE-FRONT

41068-032

Unavailable

25

TORQUE LINK-FRNT BRK

43007-022

Unavailable

26

BOLT-HEA HEAD,8X20

92001-086

Unavailable

27

WASHER-LOCK

92088-012

Unavailable
