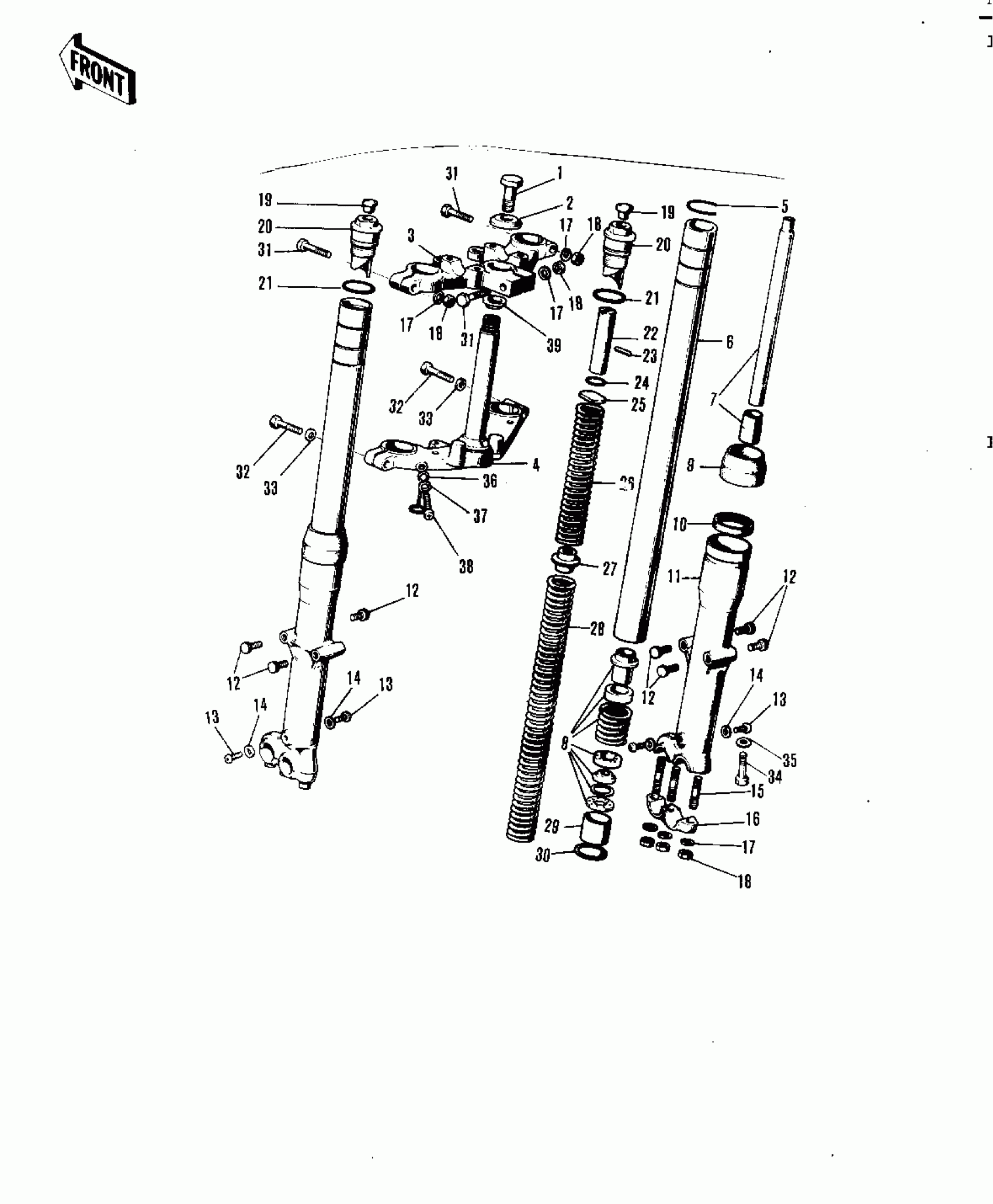

Kawasaki Centurion FRONT FORK (G31M-A) Diagram
#
1~34
FRONT FORK ASSY
44001-064
Unavailable
1
BOLT STRNG STEM HEAD
44041-007
Unavailable
2
WASHER STRNG STEM HD
44043-016
Unavailable
3
HEAD-STEERING STEM
44039-035
Unavailable
4
STEM-STEERING
44037-035
Unavailable
5
CIRCLIP
44044-011
Unavailable
6
TUBE-FORK INNER
44013-027
Unavailable
7,8
CYLINDER-FORK
44022-005
Unavailable
9
DUST SHIELD FORK
44010-006
Unavailable
10
OIL SEAL
92049-1049
Unavailable
11
TUBE,LH,FORK OUTER
44005-034-80
Unavailable
12
CAP
44062-002
Unavailable
13
SCREW PAN HEAD 4X8
220B0408
Unavailable
14
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
15
STUD 8X60
172G0860
Unavailable
16
HOLDER-FRONT AXLE
44063-002
Unavailable
17
WASHER SPRING 8MM
461F0800
Unavailable
18
NUT,8MM
311B0800
Unavailable
19
CAP,RUBBER
14039-001
Unavailable
19~24
BOLT-FORK TOP
44041-035
Unavailable
21
'O' RING INNER TUBE
44046-014
Unavailable
25
WASHER-FORK SPRG SEAT
44029-016
Unavailable
26
SPRING-FORK,SHORT
44026-035
Unavailable
27
GUIDE-FORK SPRING
44028-019
Unavailable
28
SPRING-FORK,LONG
44026-034
Unavailable
29
PISTON-FORK
44018-004
Unavailable
30
CIRCLIP
44044-010
Unavailable
31
BOLT
92001-1578
Unavailable
32
BOLT HEX HEAD 10X32
113B1032
Unavailable
33
WASHER SPRING 10MM
461F1000
Unavailable
34
BOLT FORK CYLINDER
44041-027
Unavailable
35
GASKET FORK CYL BOLT
44045-030
Unavailable
36
CLAMP CABLE
92037-016
Unavailable
37
WASHER SPRING 6MM
461F0600
Unavailable
38
SCREW PAN HEAD 6X12
220B0612
Unavailable
39
RACE,LOWER BEARING
92047-004
Unavailable
