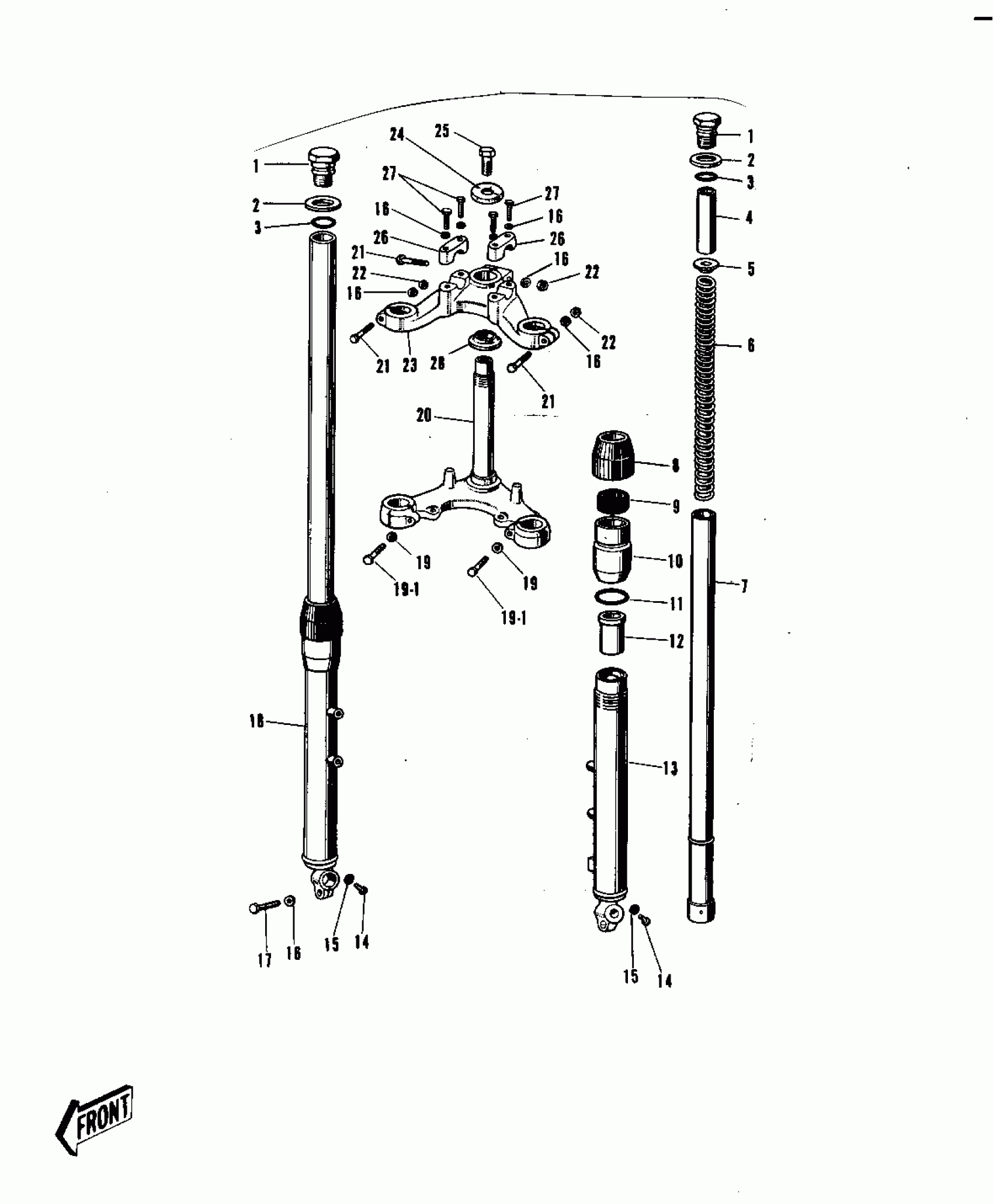

Kawasaki Centurion FRONT FORK (G31M) Diagram
#
Description
Price
1~25
FORK-FRONT
44001-046
Unavailable
1
BOLT FORK TOP
44041-022
Unavailable
2
WASHER FORK TOP
44043-014
Unavailable
3
'O' RING INNER TUBE
44046-014
Unavailable
4
SPACER FORK SPR GUIDE
44028-016
Unavailable
5
GUIDE FORK SPRING
44029-012
Unavailable
6
SPRING FORK
44026-024
Unavailable
7
TUBE FORK INNER
44013-018
Unavailable
8
DUST SHIELD FORK
44010-006
Unavailable
9
OIL SEAL
92049-1049
Unavailable
10
NUT FORK OUTER TUBE
44007-007
Unavailable
11
'O' RING OUTER TUBE
44046-012
Unavailable
12
GUIDE FORK INNER TUBE
44015-012
Unavailable
13
TUBE,LH,FORK OUTER
44005-023
Unavailable
14
SCREW PAN HEAD 4X8
220B0408
Unavailable
15
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
16
WASHER SPRING 8MM
461F0800
Unavailable
17
BOLT-SMALL-UPSET 8X25
115G0825
Unavailable
18
TUBE,RH,FORK OUTER
44006-022
Unavailable
19
WASHER SPRING 10MM
461F1000
Unavailable
19-1
BOLT HEX HEAD 10X32
113B1032
Unavailable
20
STEM STEERING
44037-026
Unavailable
21
BOLT
92001-1578
Unavailable
22
NUT,8MM
311B0800
Unavailable
23
HEAD STEERING STEM
44039-027
Unavailable
24
WASHER STRNG STEM HD
44043-016
Unavailable
25
BOLT STRNG STEM HEAD
44041-007
Unavailable
26
HOLDER-HANDLE,UPP
46012-004
Unavailable
27
BOLT 8X38
92001-1405
Unavailable
28
RACE,LOWER BEARING
92047-004
Unavailable
