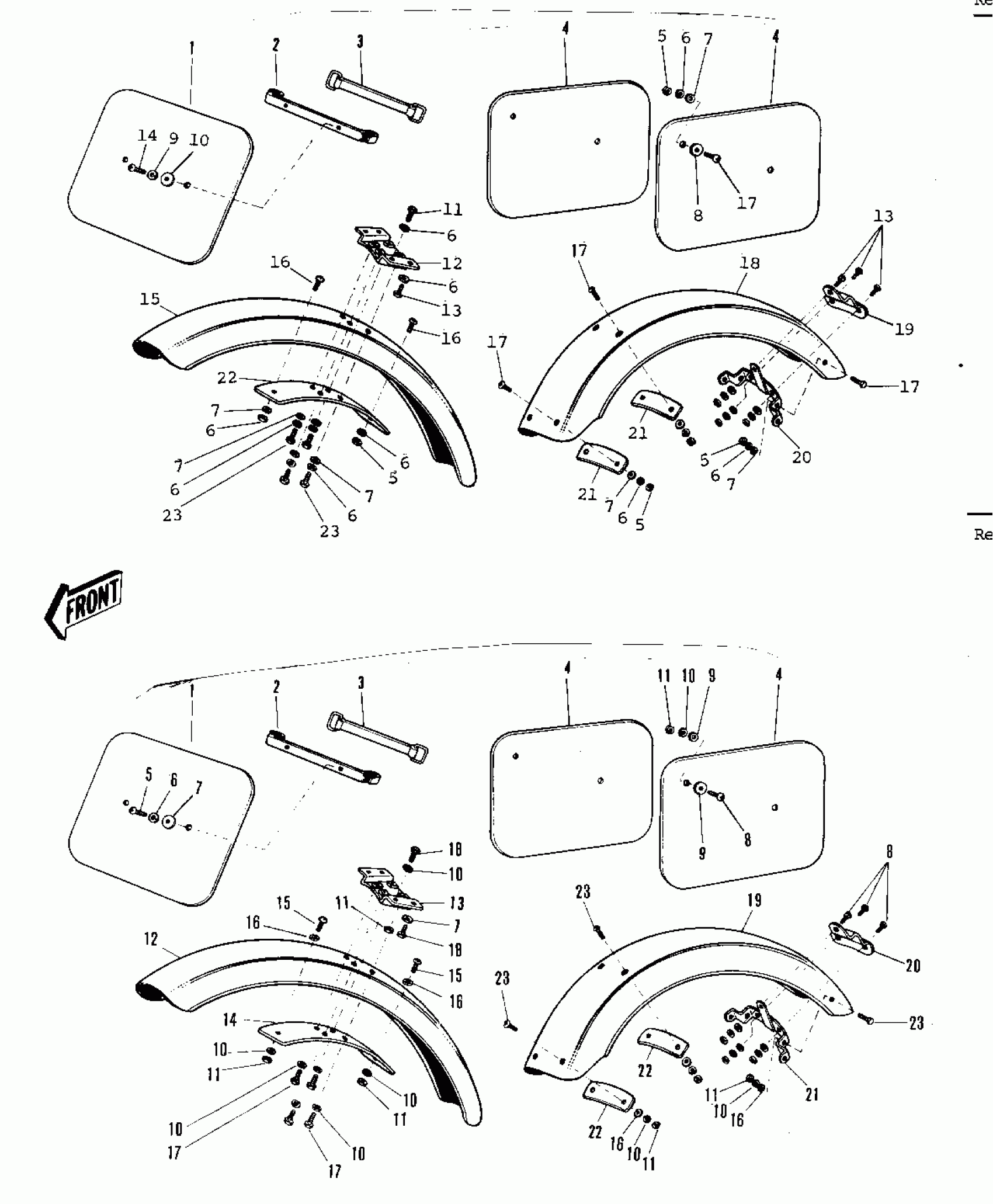

Kawasaki Centurion FENDERS/NUMBER PLATES Diagram
#
1
PLATE FRONT NUMBER
58029-005
Unavailable
2
BRACKET FRNT NO PLATE
58030-003
Unavailable
3
BAND,L=142.1
92072-006
Unavailable
4
PLATE REAR NUMBER
58029-010
Unavailable
5
NUT 6MM
311B0600
Unavailable
6
WASHER SPRING 6MM
461F0600
Unavailable
7
WASHER PLAIN 6MM
411B0600
Unavailable
8
WASHER PLAIN
92022-024
Unavailable
9
WASHER SPRING 8MM
461F0800
Unavailable
10
WASHER PLAIN 8MM
411B0800
Unavailable
11
BOLT-UPSET
112G0630
Unavailable
12
BRACKET FRONT FENDER
35012-006
Unavailable
13
BOLT-UPSET 6X14
112B0614
Unavailable
14
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
15
FENDER-FR
35004-040
Unavailable
16
SCREW PAN HEAD 6X10
220B0610
Unavailable
17
BOLT-UPSET,6X12
112G0612
Unavailable
18
FENDER-RR
35022-042
Unavailable
19
BRACKET REAR FENDER A
35025-013
Unavailable
20
BRACKET REAR FENDER B
35025-014
Unavailable
21
BRACKET
35026-002
Unavailable
22
STAY FRONT FENDER
35013-002
Unavailable
23
SCREW PAN HEAD 6X12
220B0612
Unavailable
1
PLATE-FRONT NUMBER
58029-013
Unavailable
2
BRACKET FRNT NO PLATE
58030-003
Unavailable
3
BAND,L=142.1
92072-006
Unavailable
4
PLATE-REAR NUMBER
58029-015
Unavailable
5
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
6
WASHER SPRING 8MM
461F0800
Unavailable
7
WASHER,8X26X2.3
92022-1564
Unavailable
8
BOLT-UPSET 6X14
112B0614
Unavailable
9
WASHER,6.5X20X1.6
92022-125
Unavailable
10
WASHER SPRING 6MM
461F0600
Unavailable
11
NUT 6MM
311B0600
Unavailable
12
FENDER-FR,L.GREEN
35004-040-54
Unavailable
13
BRACKET FRONT FENDER
35012-006
Unavailable
14
STAY FRONT FENDER
35013-002
Unavailable
15
SCREW PAN HEAD 6X10
220B0610
Unavailable
16
WASHER PLAIN 6MM
411B0600
Unavailable
17
SCREW PAN HEAD 6X12
220B0612
Unavailable
18
BOLT-UPSET
112G0625
Unavailable
19
FENDER-RR,L.GREEN
35022-042-54
Unavailable
20
BRACKET REAR FENDER A
35025-013
Unavailable
21
BRACKET REAR FENDER B
35025-014
Unavailable
22
BRACKET
35026-002
Unavailable
23
BOLT-UPSET,6X12
112G0612
Unavailable
