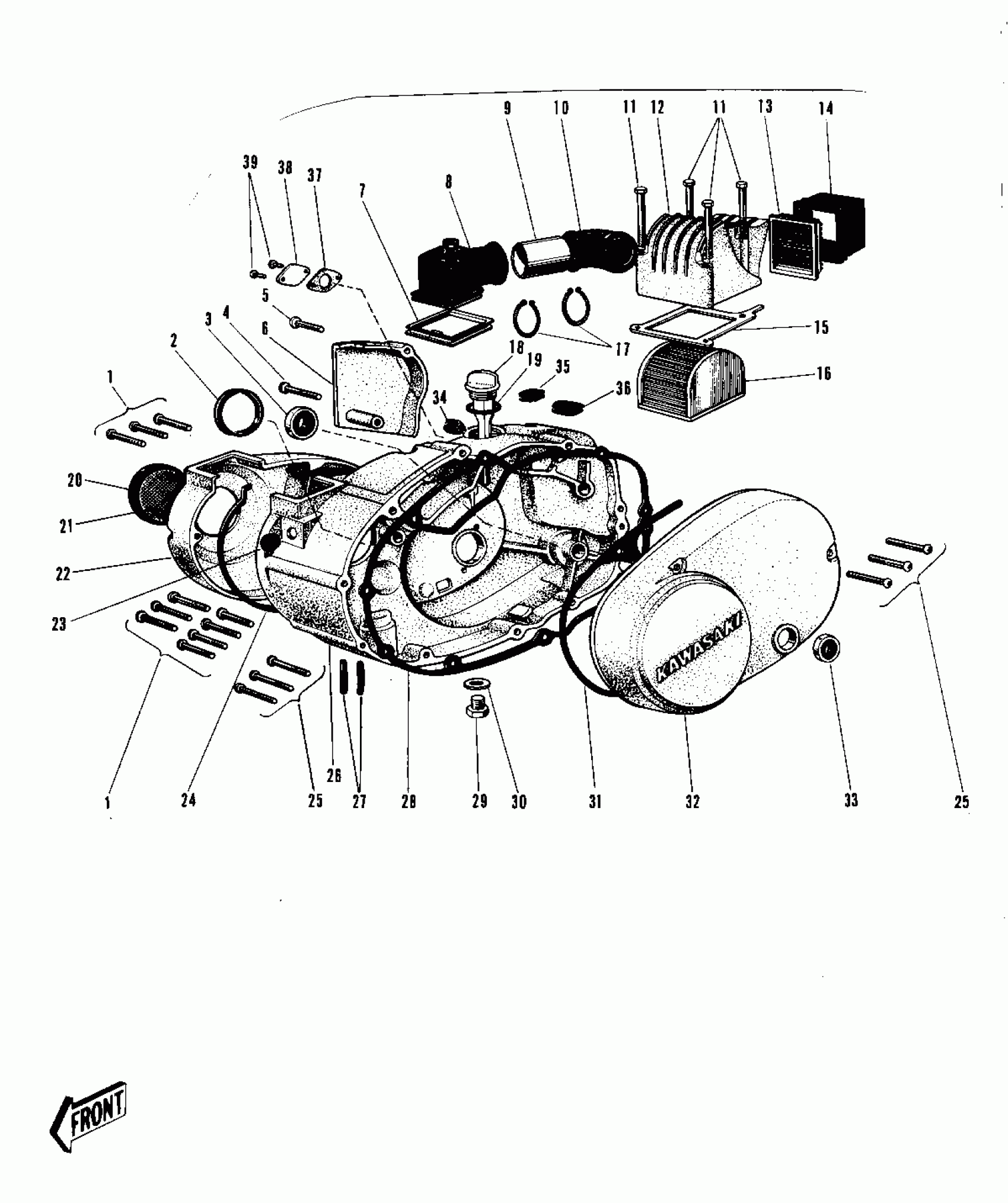

Kawasaki Centurion ENGINE COVERS/AIR CLEANER Diagram
#
1
SCREW PAN HEAD 6X30
220B0630
Unavailable
2
GROMMET
14038-020
Unavailable
3
OIL SEAL TB14257
653B142507
Unavailable
4
SCREW PAN HEAD 6X35
220B0635
Unavailable
5
SCREW PAN HEAD 6X25
220B0625
Unavailable
6
COVER OIL PUMP
14030-006
Unavailable
7
HOLDER INLET PIPE
11033-002
Unavailable
8
INLET PIPE
11015-018
Unavailable
9
INLET PIPE
11015-017
Unavailable
10
INLET PIPE
11015-016
Unavailable
11
BOLT HEX HEAD 6X75
110B0675
Unavailable
12
COVER AIR CLEANER
14042-005
Unavailable
13
SCREEN AIR CLEANER
14037-003
Unavailable
14
AIR DUCT
14073-002
Unavailable
15
GASKET AIR CLEAN COV
14059-001
Unavailable
16
ELEMENT,AIR CLNR
11013-018
Unavailable
17
SPRING COIL
92081-047
Unavailable
18
CAP-OIL FILLER
16115-018
Unavailable
19
"0" RING,OIL FIL PLUG
92055-026
Unavailable
20
CAP AIR FILTER RUBBER
14060-001
Unavailable
21
FILTER AIR
14063-001
Unavailable
22
COVER CARBURETOR
14030-016
Unavailable
23
CAP,RUBBER
14039-001
Unavailable
24
GASKET CARB COVER
14048-001
Unavailable
25
SCREW PAN HEAD 6X45
220B0645
Unavailable
26
UNAVAILABLE IN PRICE BOOK
14032-044
Unavailable
27
COVER R.H ENGINE
14032-050
Unavailable
27
GUIDE FUEL OVERFLOW
16136-002
Unavailable
28
GASKET,CLUTCH COVER
11060-1198
Unavailable
29
PLUG,DRAIN,10X12
92067-001
Unavailable
30
GASKET,10.5X16X1
92065-058
Unavailable
31
GASKET L.H ENGINE COV
14045-007
Unavailable
32
COVER,L.H ENG,SILVER
14031-078-75
Unavailable
33
SEAL-OIL,SB12205
92049-004
Unavailable
34
GROMMET OIL PIPE
16135-006
Unavailable
35
GROMMET
16135-007
Unavailable
36
GROMMET
16135-008
Unavailable
37
GASKET,OIL PUMP
11060-1160
Unavailable
38
PLUG-OIL PUMP-HOLE
92084-004
Unavailable
39
SCREW PAN HEAD 5X8
220B0508
Unavailable
