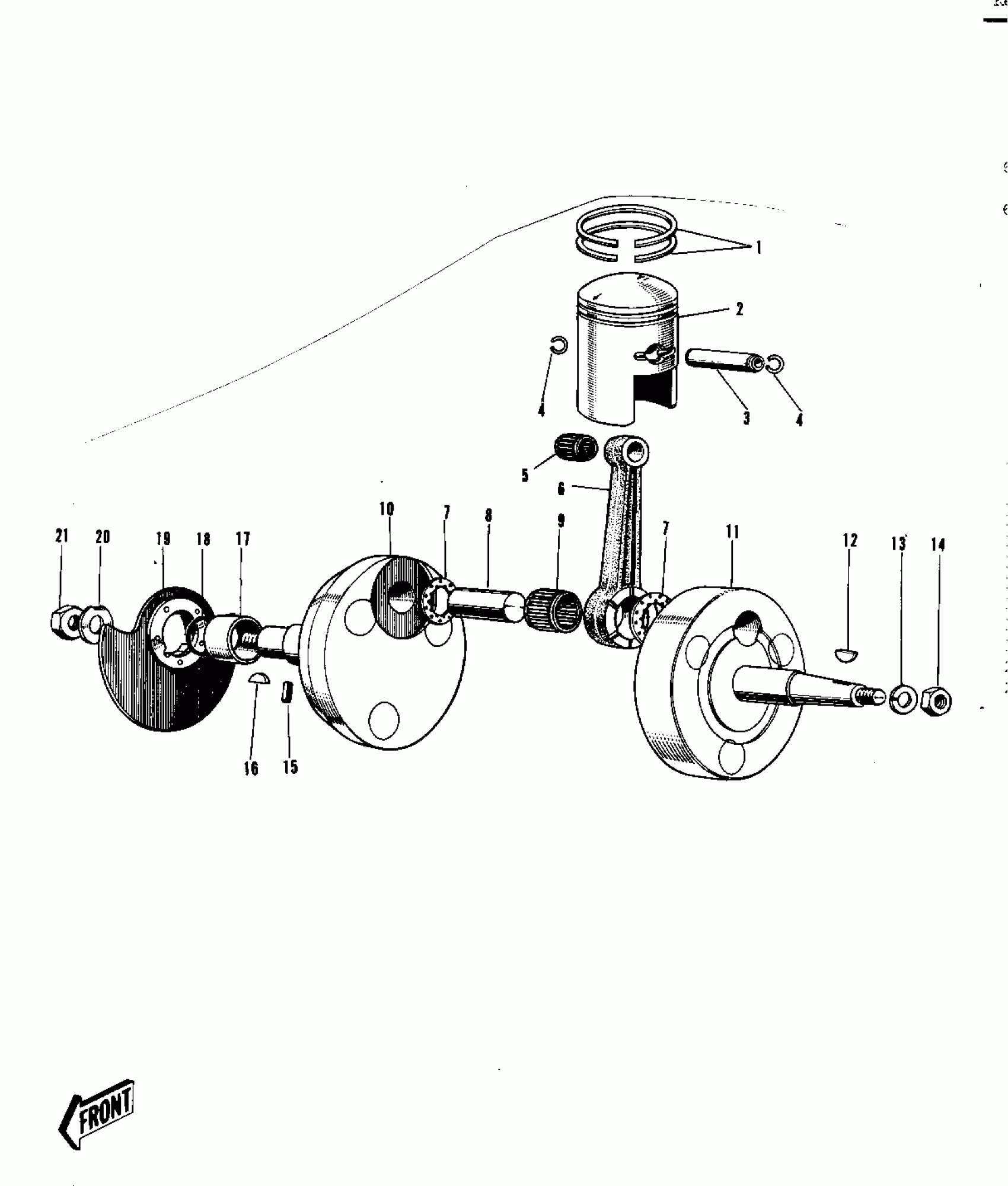

Kawasaki Centurion CRANKSHAFT/PISTON/ROTARY VALVE Diagram
#
Description
Price
1
RING SET,STD
13003-029
Unavailable
2
PISTON STD
13001-033
Unavailable
3
PIN
13002-007
Unavailable
4
RING-SNAP,PISTON PIN
92036-007
Unavailable
5
BEARING-NEEDLE,72KTV030
13033-028
Unavailable
5
BEARING-NEEDLE,72KTV030
13033-028
Unavailable
6~9
CONNECTING ROD SET
13044-008
Unavailable
6~9
CONNECTING ROD SET
13044-019
Unavailable
6~11
CRANK&CONROD ASSY
13036-034
Unavailable
6~11
CRANK&CONROD ASSY
13036-034
Unavailable
7
SHIM,20X34.5X1.0
92025-005
Unavailable
7
SHIM,T=1.0
92025-047
Unavailable
8
CRANK PIN
13035-008
Unavailable
8
PIN-CRANK
13035-025
Unavailable
9
NEEDLE BEARING BG END
13034-018
Unavailable
9
NEEDLE BEARING-BG END
13034-025
Unavailable
10
CRANKSHAFT R.H
13038-012
Unavailable
10
CRANKSHAFT,R.H
13038-040
Unavailable
11
CRANKSHAFT L.H
13037-018
Unavailable
11
CRANKSHAFT,L.H
13037-044
Unavailable
12
KEY-WOODRUFF
510A3200
Unavailable
13
WASHER SPRING 10MM
461F1000
Unavailable
14
NUT-HEX-FINE,10MM
314B1000
Unavailable
15
ROLLER,4X8
610A0408
Unavailable
16
KEY,WOODRUFF
92038-003
Unavailable
17
COLLAR CRANKSHAFT
92027-022
Unavailable
18
O RING,16MM
670B2016
Unavailable
19
VALVE ROTARY DISC
12001-015
Unavailable
20
WASHER,CLAW,12.5X25X0.8
92024-003
Unavailable
21
NUT,12MM
92015-006
Unavailable
