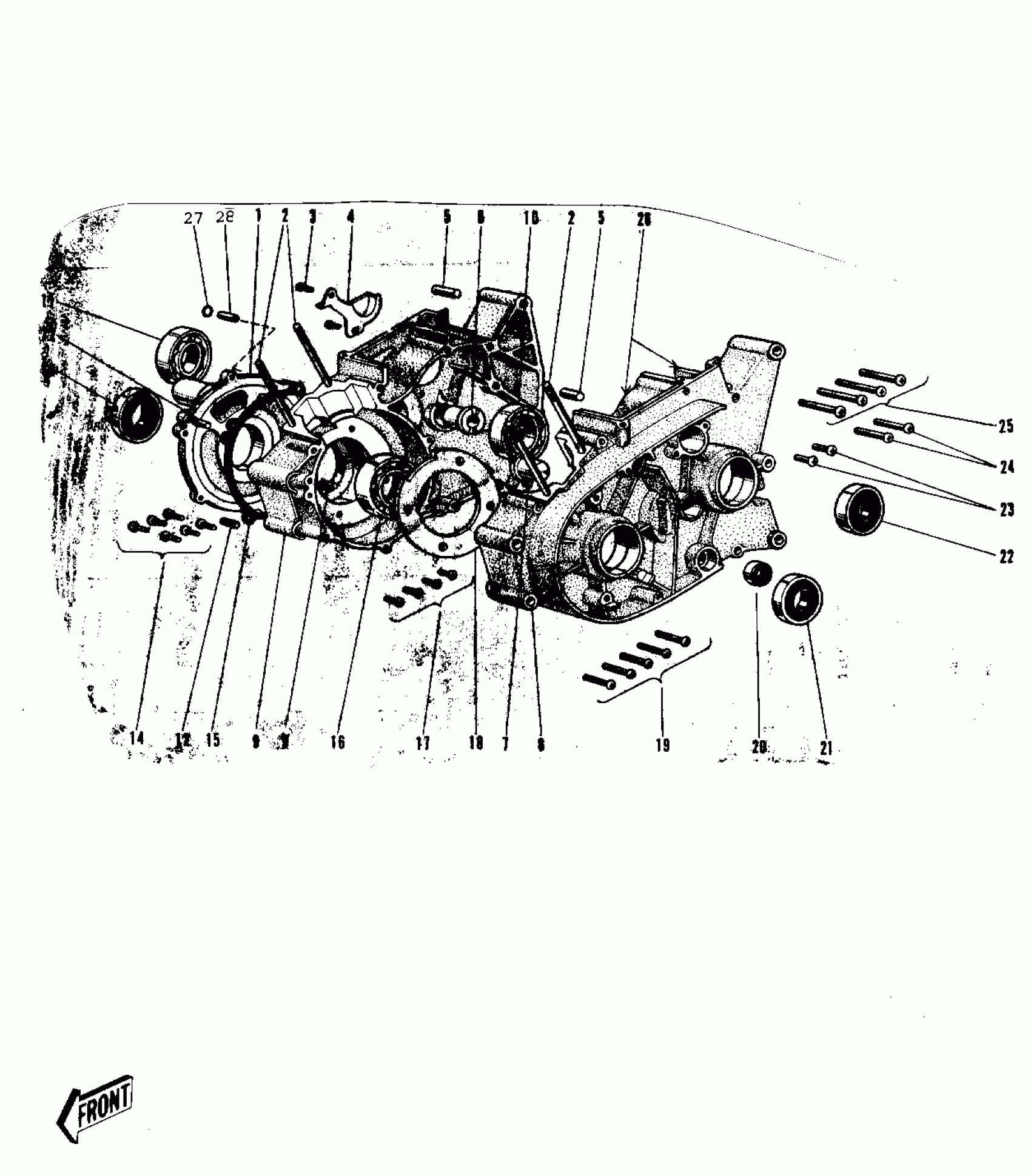

Kawasaki Centurion CRANKCASE Diagram
#
Description
Price
1
COVER ROTARY DISC VLV
14019-033
Unavailable
2
BOLT-STUD,8X115
172G08115
Unavailable
3
SCREW PAN HEAD 6X25
220B0625
Unavailable
4
PLATE-POSITION
14014-008
Unavailable
5~9
CRANKCASE SET
14001-034
Unavailable
5
PIN DOWEL 8X16
551A0816
Unavailable
6
BUSHING,L=14
92028-069
Unavailable
7
BUSHING,L=23.5
92028-025
Unavailable
10
BEARING-BALL,#6004C3
601B6004
Unavailable
11
BEARING-BALL,#6005C3
601B6005
Unavailable
12
ROLLER,5X12
610A0512
Unavailable
13
SEAL-OIL
92049-1250
Unavailable
14
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
15
GASKET VALVE COVER
14046-015
Unavailable
16
BEARING-BALL,#6204C3
601B6204
Unavailable
17
SCREW-CSK-CROS,6X16
221B0616
Unavailable
18
PLATE-POSITION
14014-017
Unavailable
19
SCREW PAN HEAD 6X40
220B0640
Unavailable
20
SEAL-OIL,SB12205
92049-004
Unavailable
21
SEAL-OIL
92049-1240
Unavailable
22
SEAL-OIL,SC25376
92050-013
Unavailable
23
SCREW PAN HEAD 6X12
220B0612
Unavailable
24
SCREW-PAN-CROS,6X60
220B0660
Unavailable
25
SCREW PAN HEAD 6X65
220B0665
Unavailable
26
GASKET-LIQUID,TB1105B,SILVER
92104-002
Unavailable
27
RING-O,7.8X3.5
92055-029
Unavailable
28
PIN,DOWEL,8X16
92042-017
Unavailable
