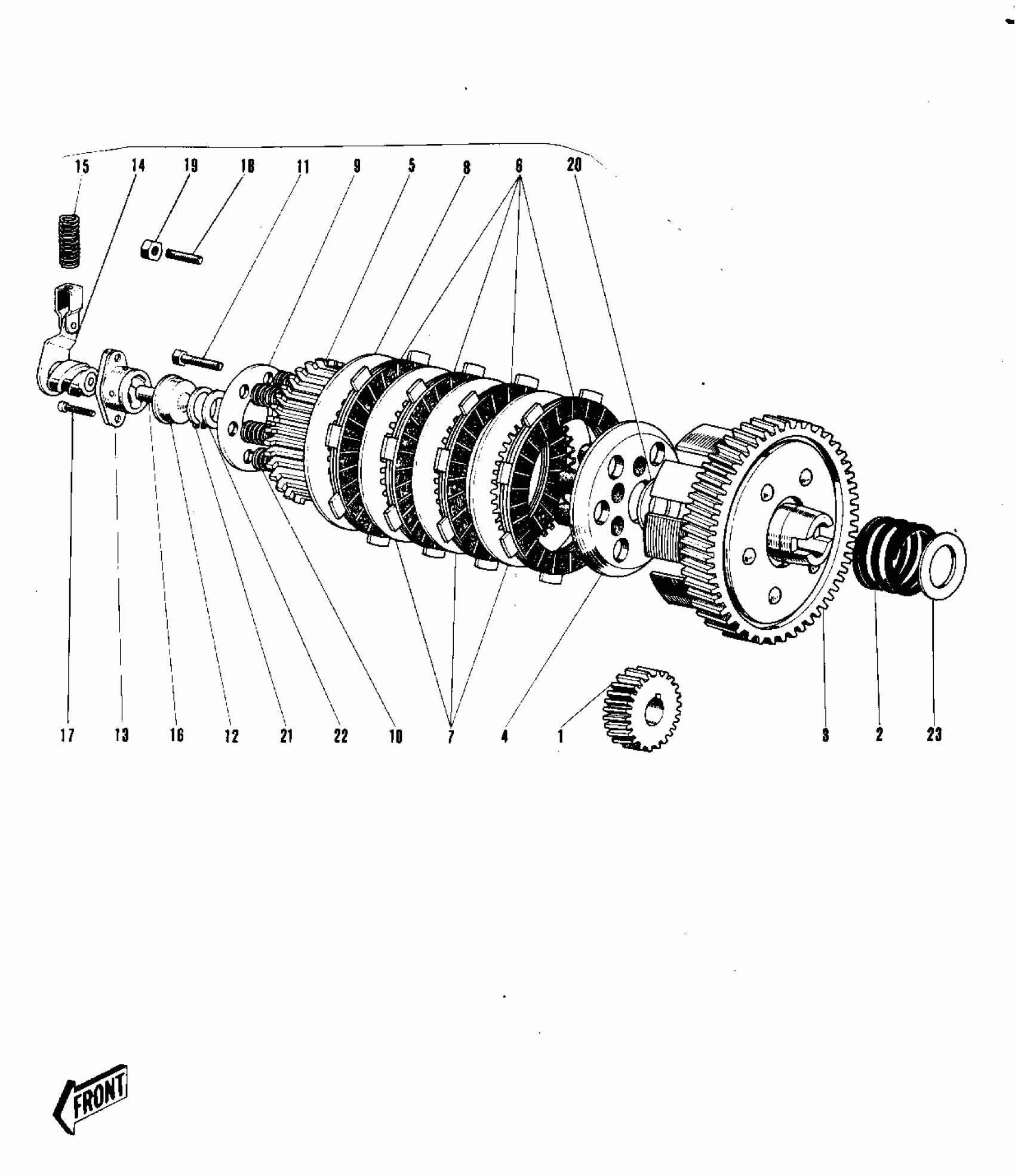

Kawasaki Centurion CLUTCH Diagram
#
Description
Price
1
PINION,PRIMARY
13121-032
Unavailable
2
SPRING,CLUTCH DAMPER
92081-015
Unavailable
3~11
CLUTCH-ASSY
13081-028
Unavailable
3
HOUSING-COMP-CLUTCH
13095-022
Unavailable
4
WHEEL-CLUTCH
13086-1002
Unavailable
5
HUB-CLUTCH
13087-1011
Unavailable
6
PLATE-FRICTION
13088-1103
Unavailable
7
PLATE-CLUTCH,STEEL
13089-1009
Unavailable
8
PLATE CLUTCH OUTER
13090-004
Unavailable
9
HOLDER,CLUTCH SPRING
13091-1115
Unavailable
10
SPRING,CLUTCH
92081-012
Unavailable
11
BOLT SMALL
114G0812
Unavailable
12
PUSHER-COMP-CLUTCH
13113-003
Unavailable
13
OUTER CLUTCH RELEASE
13118-001
Unavailable
14
INNER CLUTCH RELEASE
13102-004
Unavailable
15
SPRING,CLUTCH RELEASE
92081-096
Unavailable
16
PIN DOWEL 7X10
610A0710
Unavailable
17
SCREW-PAN-CROS,6X16
220B0616
Unavailable
18
SCREW SLOTTED 6X28
291Z0628
Unavailable
19
NUT 6MM
311B0600
Unavailable
20
WASHER,16.5X27X1.4
92022-054
Unavailable
21
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
22
WASHER,THRUST,16.5X21X0.8
92022-053
Unavailable
23
WASHER,25.5X36X1
92022-057
Unavailable
