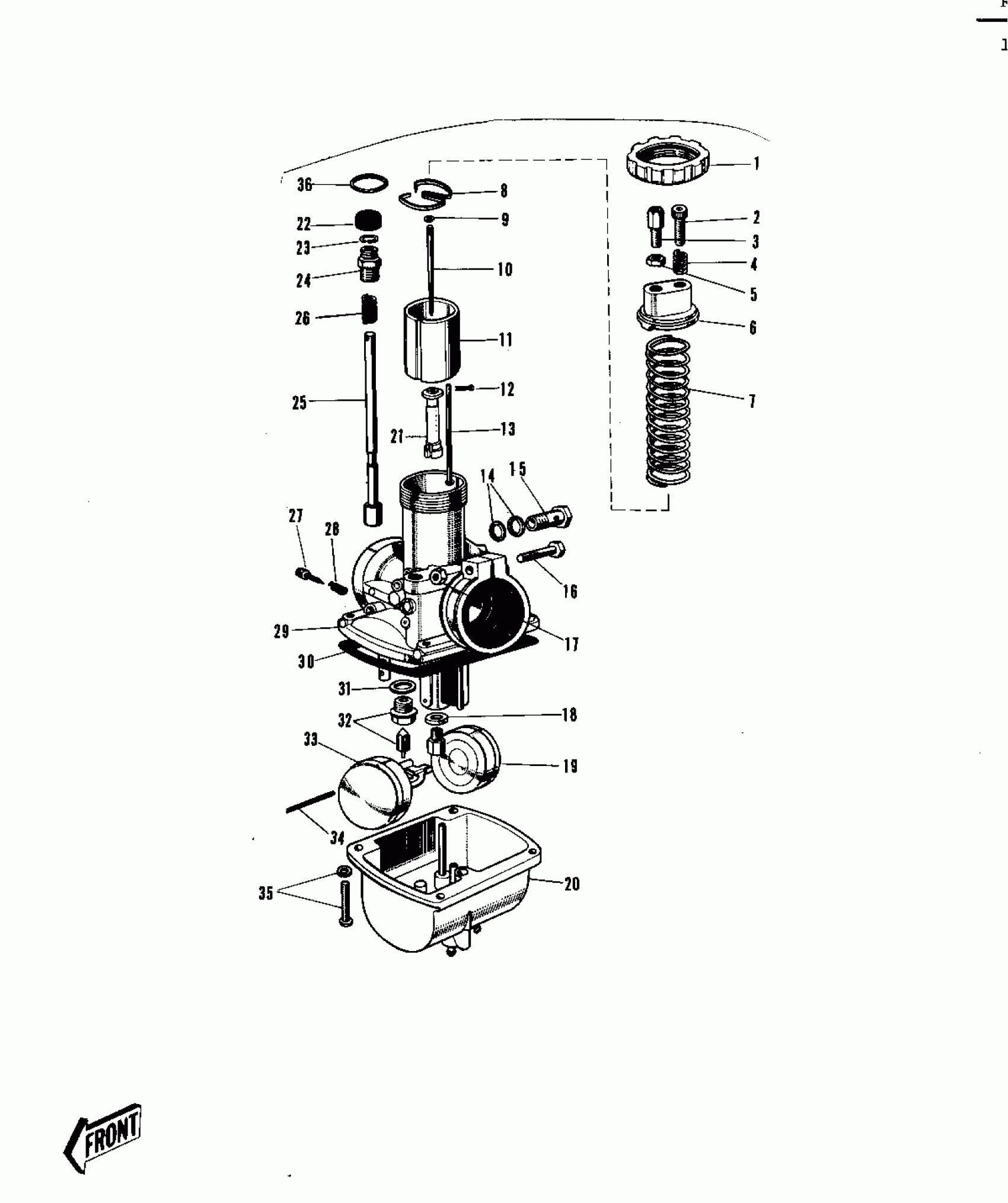

Kawasaki Centurion CARBURETOR Diagram
#
1~35
CARBURETOR ASSY
16001-100
Unavailable
1
CAP MIXING CHAMBER
16004-011
Unavailable
2
SCREW-THROTTLE STOP
16021-002
Unavailable
3
CABLE ADJUSTER
16002-002
Unavailable
4
SPRING,THROTTLE STOP SCREW
16022-005
Unavailable
5
NUT,CABLE ADJUST LOCK
16003-004
Unavailable
6
TOP MIXING CHAMBER
16005-020
Unavailable
7
SPRING THROTTLE VALVE
16006-014
Unavailable
8
SPRING SEAT THRTL VLV
16007-012
Unavailable
9
CLAMP,E-TYPE
16008-010
Unavailable
10
JET NEEDLE 4DG-6
16009-029
Unavailable
11
VALVE THROTTLE
16025-028
Unavailable
12
UNAVAILABLE IN PRICE BOOK
16023-001
Unavailable
13
ROD THROTTLE VLV STOP
16024-004
Unavailable
14
GASKET 8MM
751P0800
Unavailable
15
BOLT BANJO
92001-011
Unavailable
16
SCREW,CLAMP
16010-004
Unavailable
17
NUT 6MM
311B0600
Unavailable
18
WASHER,MAIN JET
16034-001
Unavailable
19
JET-MAIN NO 150A
92063-016
Unavailable
19
JET-MAIN NO 140A
92063-015
Unavailable
19
JET-MAIN NO 160A
92063-017
Unavailable
19
JET-MAIN,#170
92063-019
Unavailable
21
NEEDLE JET 0-6
16017-036
Unavailable
22
CAP RUBBER
16036-006
Unavailable
23
CLAMP
92037-1077
Unavailable
24
CAP STARTER PLUNGER
16012-010
Unavailable
25
PLUNGER STARTER
16016-008
Unavailable
26
SPRING STARTER PLUNG
16013-006
Unavailable
27
SCREW-PILOT AIR
16014-002
Unavailable
28
SPRING,PILOT AIR SCREW
16022-007
Unavailable
30
GASKET FLOAT CHAMBER
16019-013
Unavailable
31
WASHER FLOAT VLV SEAT
16029-004
Unavailable
32
VALVE-FLOAT,2.5
16030-005
Unavailable
33
FLOAT
16031-016
Unavailable
34
PIN,FLOAT
16032-003
Unavailable
35
SCREW FLOAT CHAMBER
16033-009
Unavailable
36
SPRING
92081-065
Unavailable
