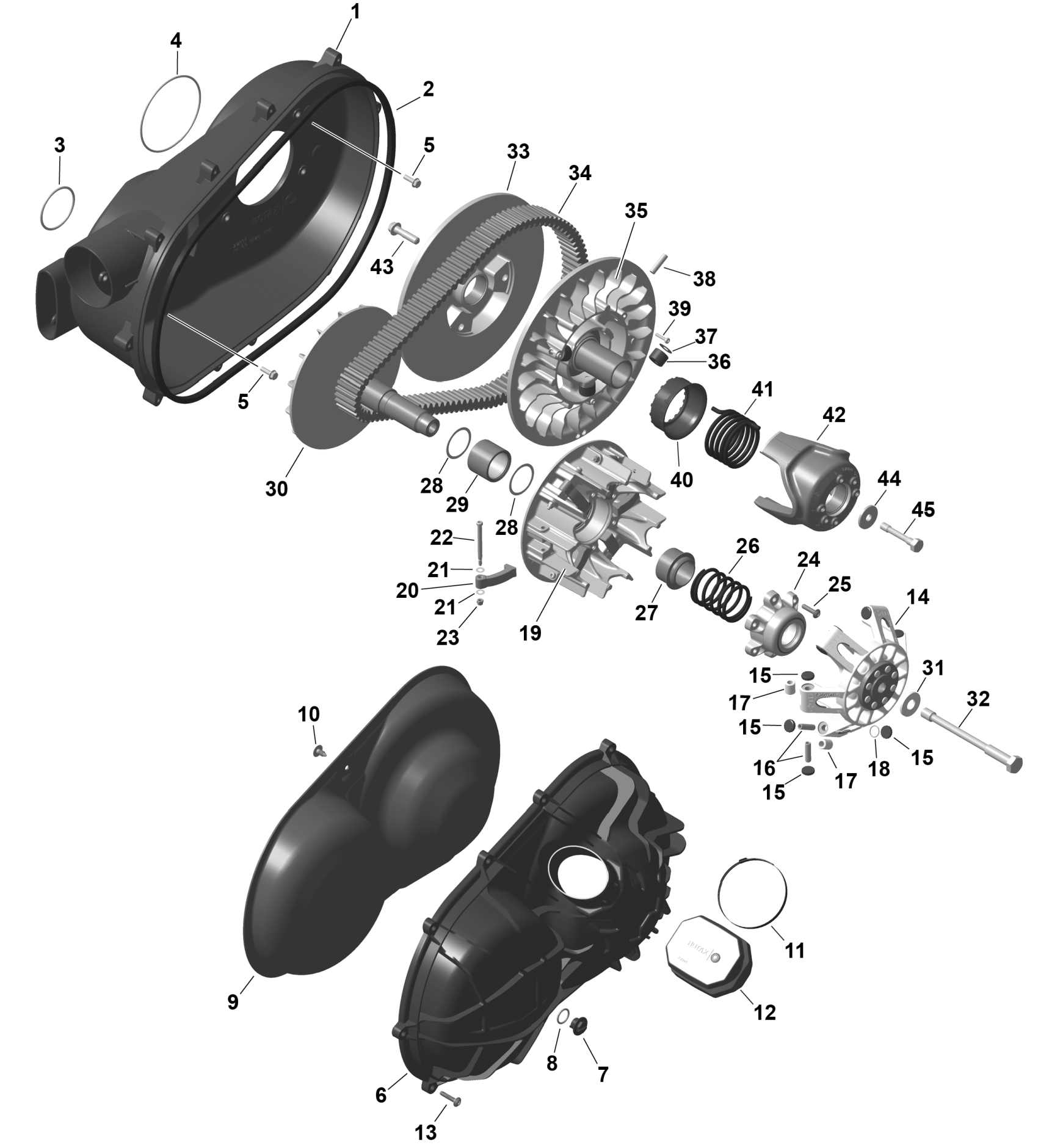

Can-Am CE - Traxter Pro - HD10 - XU - 8VSN - Compass Green - 64" Width - 2025 ROTAX - CVT Diagram

#

Description
Price

1

CVT Air Guide

420212604

$224.99

2

Gasket

420450400

$31.99

3

O-Ring

420430408

$5.29

4

O-Ring

420450431

$5.29

5

Hex.Screw M6 X 20

420441311

$5.18

6

Variator Cover

420212711

$249.99

6

Variator Cover

420212503

$184.99

7

Cap

420441820

$11.63

8

O-Ring

420250052

$10.43

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Ear Clamp 87.3-90.5MM

420251485

$8.11

12

Closure Cap

420201940

$22.49

13

Torx Screw 6X30

420441575

$3.06

14

Governor Cup Ass'y

420280746

$194.99

15

Slider Shoe Set

420281296

$65.49

16

Roller Axle

417223257

$6.99

17

Roller

417223767

$11.59

18

O-Ring

420230456

$2.09

19

Outer Half Ass'y

420280609

$379.99

20

Lever Set | Includes 16-19

420248688

$206.49

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Bearing Cover Ass'y

420280615

$65.49

25

Torx Flange Screw M6 X 25

420841549

$2.00

26

Compression Spring

420638119

$35.99

27

Spring Seat

420427210

$37.99

28

Washer

420427220

$4.86

29

Needle Roller Bearing With Sleeves

420832351

$49.99

30

Inner Half Ass'y

420280596

$339.99

31

Washer

420245690

$4.86

32

Hexagonal Screw M14X 165

420841161

$29.49

33

Sliding Pulley Ass'y

420280636

$349.99

34

Drive Belt

422280652

$239.99

35

Outer Half Ass'y

420280628

$369.99

36

Pulley Roller

417127016

$24.49

37

Thrust Washer

420227946

$2.51

38

Bearing Pin

420629192

$16.34

39

Torx Screw M4 X 20

420841531

$2.09

40

Spring Support

420427805

$11.17

41

Compression Spring

420638124

$37.99

42

Cam

420280758

$116.49

43

Torx Flange Screw M10 X 40

420841711

$2.09

44

Collar Washer

420427243

$16.40

45

Hexagonal Screw M10X 61

420441990

$19.49
